145-918-132 - Lawnflite Garden Tractor (1985) (Allied Hardware) Drive Head Parts Diagram

Garden Tractor

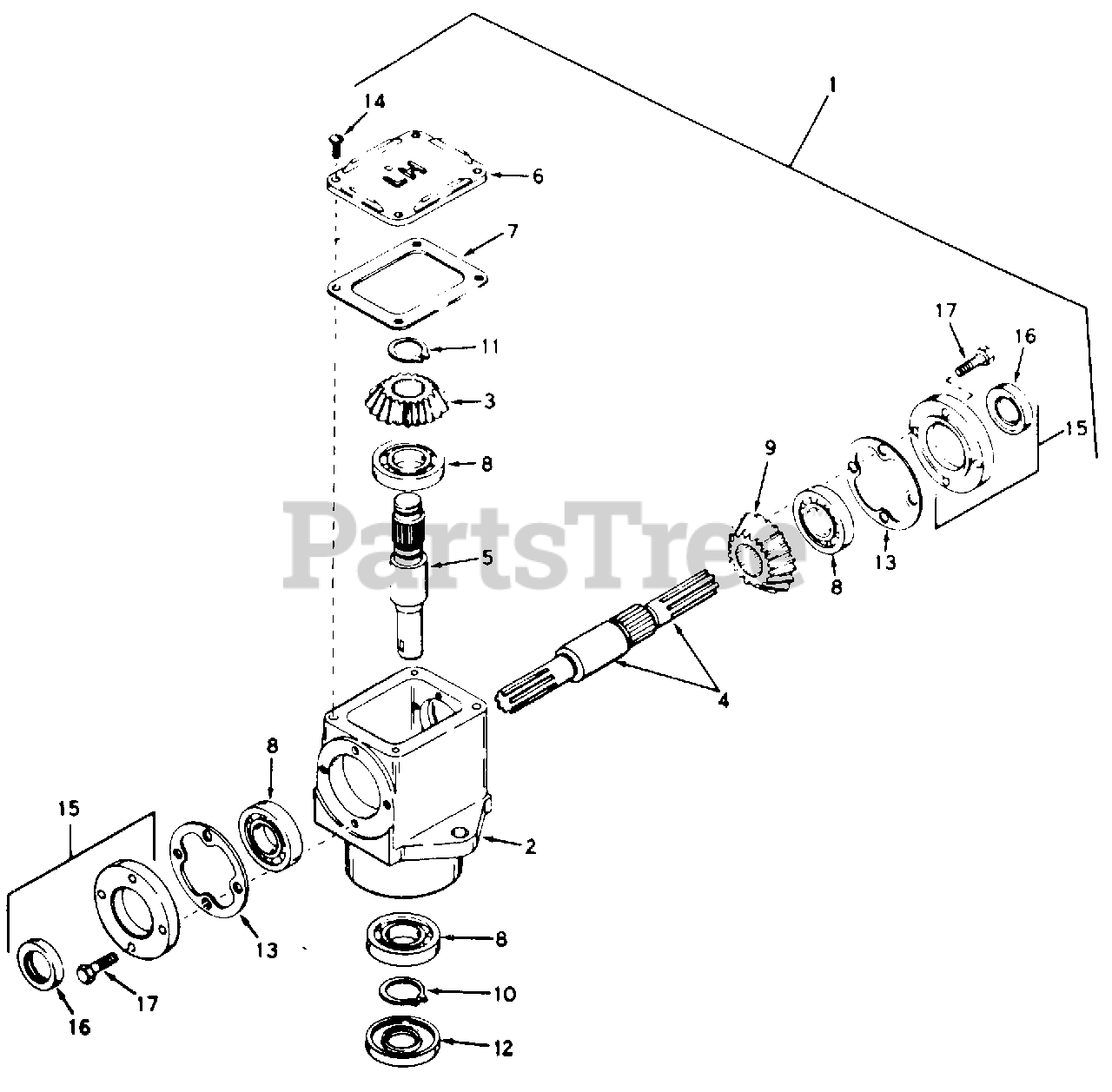

Drive Head Parts Diagram

  • Title

1

MTD PE-794210

Head Ass'y., T Drive

Note: (Includes 2 to 15)

$

$

Currently unavailable

2

MTD PE-770047

Housing T Drive

$

$

Currently unavailable

3

MTD PE-778046

Gear, Miter
(Superseded to TC-778046)

$44.99

$

In Stock, only 1 left!

0

4

MTD PE-776179

Shaft, Input

$

$

Currently unavailable

5

MTD PE-776178

Shaft, Output

$

$

Currently unavailable

6

MTD PE-772035

Cover

$

$

Currently unavailable

7

MTD PE-788028

Gasket, Cover

$

$

Currently unavailable

8

MTD PE-780034

Bearing, Ball

$

$

Currently unavailable

9

MTD PE-778069

Gear, Miter

$

$

Currently unavailable

10

MTD PE-788019

Ring, Snap

$

$

Currently unavailable

11

MTD PE-788018

Ring, Snap

$

$

Currently unavailable

12

MTD PE-788029

Seal, Oi I

$

$

Currently unavailable

13

MTD PE-788030

Gasket, Cap

$

$

Currently unavailable

14

MTD PE-792025

Scr., Rd. Hd. Self-Tap 10-24 x 1/2

$

$

Currently unavailable

15

MTD PE-786029

Cap and Seal Ass'y.

Note: (Includes 16 and 17)

$

$

Currently unavailable

16

MTD PE-788031

Seal, Oil

$

$

Currently unavailable

17

MTD PF-792026

Scr., Hex Hd. 1/4-20 x 7/8

$

$

Currently unavailable
