145-918-132 - Lawnflite Garden Tractor (1985) (Allied Hardware) Parts01 Parts Diagram

Garden Tractor

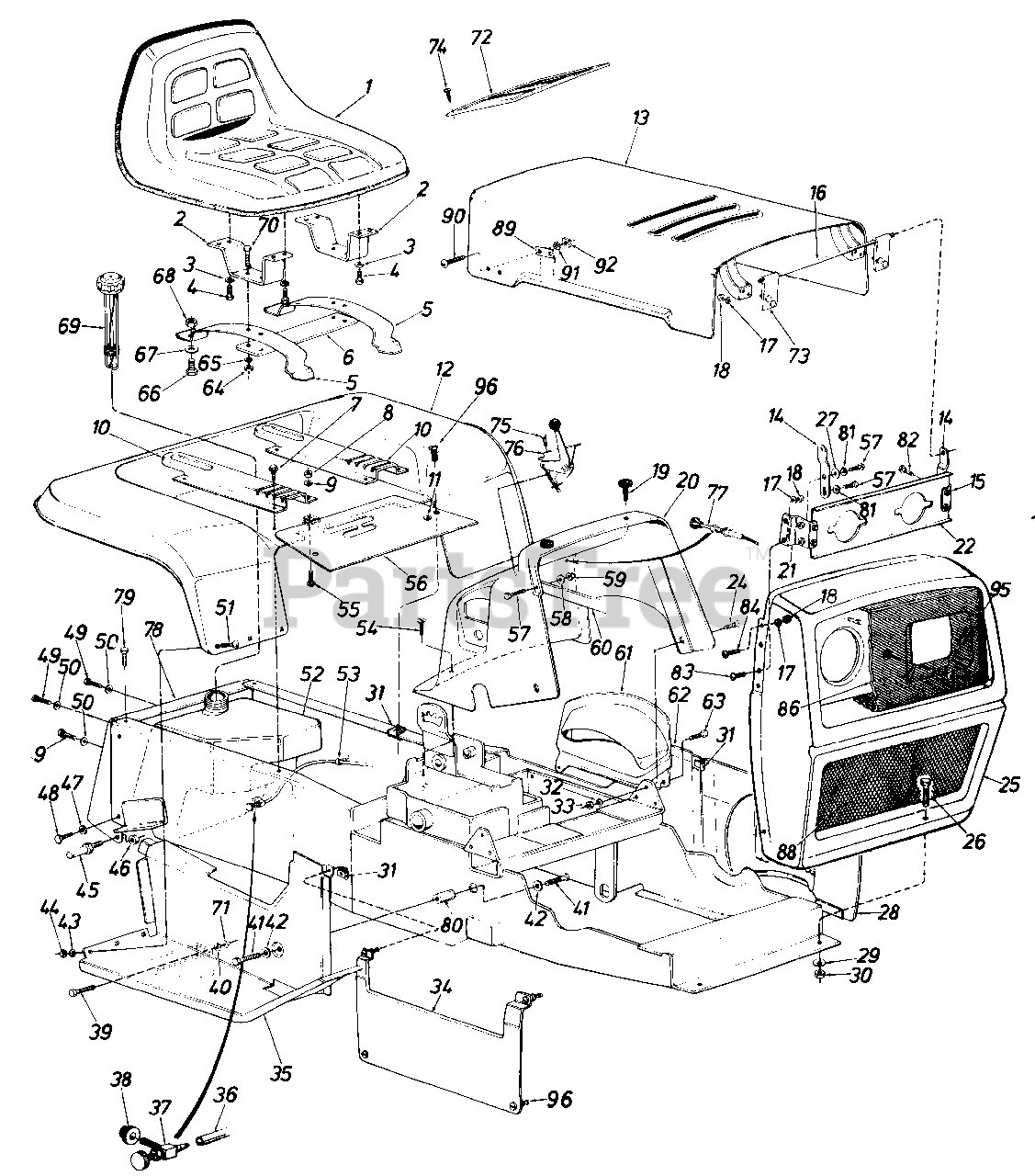

Parts01 Parts Diagram

  • Title

1

MTD 757-0286

Seat Ass'y. Comp.

$

$

Currently unavailable

2

MTD 14225

Seat Brkt.

$

$

Not available

3

MTD 736-0169

L-Wash. 3/8" Scr.

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

5

MTD 13123

Seat Spring

Variations

MTD 13123-0637

Seat Spring - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 13214

Seat Support Plate

$

$

Currently unavailable

7

MTD 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .75" Lg.
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

8

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

MTD 13124

Seat Adjuster Brkt.

$

$

Not available

11

MTD 731-0405

Snap Bushing

$

$

Not available

12

MTD 13106

Rear Fender Ass'y.

$

$

Currently unavailable

13

MTD 13471

Hood Ass'y.

$

$

Currently unavailable

14

MTD 13585

Hinge Rod Support

Variations

MTD 13585-0637

No Longer Available SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 13690

Hood Support Brkt. Ass'y.-L.H.

$

$

Not available

16

MTD 747-0231

Hinge Rod

$

$

Not available

17

MTD 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

18

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

19

MTD 735-0199

Rubber Bumper
(Superseded to 935-0199A)

$6.99

$

In Stock, Qty 16

0

20

MTD 731-0375

Instrument Panel

$

$

Currently unavailable

21

MTD 13689

Hood Support Brkt. Ass'y.-R.H.

$

$

Not available

22

MTD 13687

Headlight Retainer

Variations

MTD 13687-0637

No Longer Available RETAINER-H - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

25

MTD 15667

Front Grille

Variations

MTD 15667-0629

No Longer Available GRILLE - SILVER FLAKE (0629)

$

$

Not available

$

$

26

MTD 710-0376

Hex Scr. 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 17

0

27

MTD 736-0211

Fl-Wash. .25 I.D. x 1.25 O.D.

$6.49

$

In Stock, Qty 8

0

28

MTD 13394

Panel Ass'y.-L.H.

$

$

Currently unavailable

29

MTD 736-0242

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

30

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-0147

U-Type Speed Nut

$6.49

$

Usually ships in 3-6 days

0

32

MTD 736-0329

L-Wash. 1/4 " Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

33

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

34

MTD 13393

Panel-R.H.

$

$

Currently unavailable

35

MTD 13102

Foot Step Panel-R.H.

$

$

Currently unavailable

36

MTD 731-0150

Gas Hose 3/16" I.D. x 5/16" O.D. x 72" Lg.

$

$

Currently unavailable

37

MTD 751-0171

Fuel Shut-Off Valve
(Superseded to 951-0171)

$19.99

$

Usually ships in 3-6 days

0

38

MTD 735-0149

Rubber Bushing
(Superseded to 935-0149)

$7.99

$

In Stock, Qty 20+

0

39

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg. (Grade 5)
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0169

L-Wash. 3/8" Scr.

$3.49

$

In Stock, Qty 20+

0

41

MTD 710-0201

Hex Scr. 3/8-16 x .62" Lg.

$

$

Not available

42

MTD 736-0117

Fl-Wash. .385 I.D. x .62 O.D.
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

43

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

45

MTD 711-0497

Link Clevis Pin

$

$

Not available

46

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

47

MTD 736-0169

L-Wash. 818" Scr.*

$3.49

$

In Stock, Qty 20+

0

48

MTD 710-0514

Hex Scr. 3/8-24 x 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

49

MTD 710-0258

Hex Scr. 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

50

MTD 736-0270

Bell-Wash.

$3.99

$

In Stock, Qty 12

0

51

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

52

MTD 751-0207

Fuel Tank

$

$

Currently unavailable

53

MTD 725-0157

Tie Strap

$3.49

$

In Stock, only 4 left!

0

54

MTD 710-0618

Flat Hd. Self-Tap Scr. 1/4 " Dia. x .62" Lg.

$

$

Not available

55

MTD 710-0260

Carr. Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

56

MTD 13107

Transmission Cover

$

$

Currently unavailable

57

MTD 710-0252

Hex Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

58

MTD 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

59

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

60

MTD 13152

Grille Strap

$

$

Currently unavailable

61

MTD 731-0383

Instrument Panel Insert

$

$

Currently unavailable

62

MTD 13103

Foot Step Panel-L.H.

$

$

Currently unavailable

63

MTD 710-0599

Thread Rol li ng Scr. 1/4"

$3.99

$

In Stock, Qty 20+

0

64

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

65

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0689

Nylon Scr. 1/2-13 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

67

MTD 736-0160

Fl-Wash. 1/2" I.D.

$3.99

$

In Stock, only 2 left!

0

68

MTD 712-0384

Hex Cent. L-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

69

MTD 751-0226

Fuel Gauge
(Superseded to 951-0226A)

$53.99

$

In Stock, Qty 14

0

70

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

71

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

72

MTD 731-0384

Instrument Panel Cover

$

$

Not available

73

MTD 13581

Hood Hinge Ass'y.

$

$

Not available

74

MTD 710-0697

Self-Tap Black Oval Hd. Scr. 1/2" Lg.

$

$

Not available

75

MTD 710-0721

Fl-Hd. Truss Scr. #10 x .62" Lg.

$

$

Currently unavailable

76

MTD 746-0335

Throttle Control Ass'y.

$

$

Not available

77

MTD 746-0336

Choke Control Ass'y.

$

$

Currently unavailable

78

MTD 13196

Hitch Plate Ass'y.
(Superseded to 13196-0637)

Variations

MTD 13196-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 13196-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

MTD 13196-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

79

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$3.99

$

In Stock, Qty 17

0

80

MTD 748-0252

Lift Shaft Pivot Pin

$

$

Currently unavailable

81

MTD 736-0270

Bell-Wash.

$3.99

$

In Stock, Qty 12

0

82

MTD 710-0294

Hex Scr. 1/4-20 x .38" Lg.*

$3.49

$

Usually ships in 3-6 days

0

83

MTD 710-0286

Truss Hd. Scr. 1/4-20 x .50" Lg. *

$4.49

$

Usually ships in 3-6 days

0

84

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75" Lg. *
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

86

MTD 731-0465

Head Lamp Bezel

$

$

Not available

88

MTD 13730

Grille Screen

$

$

Not available

89

MTD 732-0391

Hood Spring

$

$

Not available

90

MTD 710-0192

Truss Mach. Scr. 10-24 x 3/8"

$3.49

$

In Stock, Qty 11

0

91

MTD 736-0722

L-Wash. #10

$6.49

$

Usually ships in 3-6 days

0

92

MTD 712-0121

Hex Nut 10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

95

MTD 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

96

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$3.99

$

In Stock, only 1 left!

0
