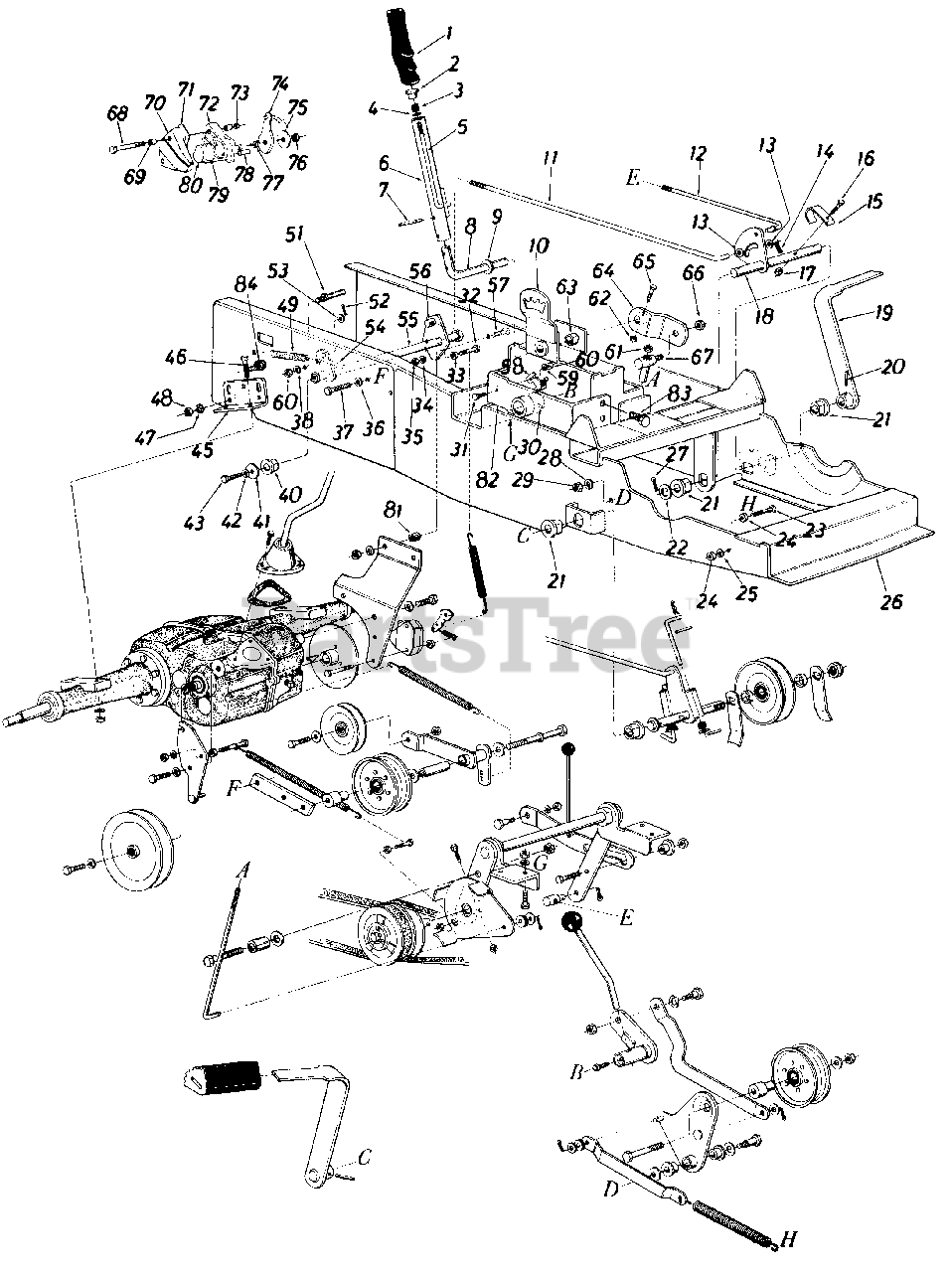

145-918-132 - Lawnflite Garden Tractor (1985) (Allied Hardware) Parts02 Parts Diagram

Garden Tractor

Parts02 Parts Diagram

  • Title

1

MTD 720-0178

Grip

$

$

Currently unavailable

2

MTD 711-0642

Handle Button
(Superseded to 711-0642A)

$7.49

$

In Stock, Qty 20+

0

3

MTD 732-0335

Compression Spring

$4.99

$

In Stock, only 3 left!

0

4

MTD 736-0463

Fl-Wash. 1/4" I.D. x 5/8" O.D.

$4.49

$

In Stock, only 2 left!

0

5

MTD 747-0210

Control Rod

$

$

Currently unavailable

6

MTD 13024

Variable Speed Handle Ass'y.

$

$

Currently unavailable

7

MTD 715-0247

Spring Pin Spiral 3/16" Dia. 1" Lg.
(Superseded to 915-0247)

$

$

Not available

8

MTD 738-0345

Pivot Shaft

$

$

Currently unavailable

9

MTD 736-0156

Fl-Wash. 5/8" x 1-1/8" O.D.

$3.99

$

In Stock, Qty 13

0

10

MTD 13385

Variable Speed and Steering Brkt.

$

$

Currently unavailable

11

MTD 747-0229

Brake Rod

$

$

Currently unavailable

12

MTD 747-0218

Clutch Control Rod

$

$

Not available

13

MTD 736-0117

Fl-Wash. .38 I.D. x .62" O.D.
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

14

MTD 714-0474

Cotter Pin 1/8" Dia. x .75" Lg. *

$4.49

$

In Stock, Qty 16

0

15

MTD 13160

Clutch Control Switch Plate

$

$

Currently unavailable

16

MTD 710-0428

Hex Scr. 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

17

MTD 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

18

MTD 13084

Clutch Control Brkt.

$

$

Currently unavailable

19

MTD 13081

Foot Pedal Brkt.

$

$

Currently unavailable

20

MTD 715-0114

Roll Pin 1/4" Dia. x 1.50" Lg. *

$8.49

$

In Stock, Qty 9

0

21

MTD 741-0199

Hex Flange Brg. Plastic
(Superseded to 941-0490)

$12.99

$

Usually ships in 3-6 days

0

22

MTD 736-0188

Fl-Wash. .75" I.D. x 1.50" O.D.

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0442

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

26

MTD 13392

Frame Ass'y.

$

$

Currently unavailable

27

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0217

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 13

0

29

MTD 712-0214

Hex Top L-Nut 3/8-16 Thd.

$5.99

$

In Stock, Qty 20+

0

30

MTD 737-0146

Grease Fitting

$4.99

$

Usually ships in 3-6 days

0

31

MTD 710-0289

Hex Scr. 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-0528

Hex Scr. 5/16-18 x 1.25" Lg .

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

35

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0119

L-Wash. 5/16n Scr.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$3.99

$

In Stock, Qty 17

0

38

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

40

MTD 741-0225

Hex Brg. .630 I.D.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

41

MTD 736-0123

Fl-Wash. 5/16" I.D. x 1.125" O.D.
(Superseded to 936-0123)

$5.99

$

Usually ships in 3-6 days

0

42

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0538

Plastic Ms. Hex Scr. 5/16-16 x 1.50" Lg.

$4.49

$

In Stock, Qty 9

0

45

MTD 13066

Transaxle Support Brkt.

$

$

Not available

46

MTD 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.

$4.99

$

In Stock, Qty 20+

0

47

MTD 736-0217

L-Wash. 3/8" Scr. H.D.

$3.99

$

In Stock, Qty 13

0

48

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

MTD 732-0121

Extension Spring
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

51

MTD 711-0747

Belt Guard Pin 1/4-20 x 1.68" Lg.

$9.99

$

Usually ships in 3-6 days

0

52

MTD 714-0474

Cotter Pin 1/8" Dia. x .75" Lg.*

$4.49

$

In Stock, Qty 16

0

53

MTD 736-0117

Fl-Wash. .38" I.D.
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

54

MTD 13062

Brake Rod Ass'y.

$

$

Currently unavailable

55

MTD 13059

Brake and Clutch Jackshaft

$

$

Currently unavailable

56

MTD 711-0179

Ferrule

$

$

Not available

57

MTD 710-0258

Hex Scr. 5/16-18 x 1.25" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

58

MTD 725-0577

Safety Switch

$

$

Not available

59

MTD 736-0329

L-Wash. 1/4" Scr*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

60

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

61

MTD 712-0116

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

62

MTD 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

63

MTD 748-0227

Flange Brg.
(Superseded to 948-0227A)

$7.99

$

In Stock, Qty 20+

0

64

MTD 13036

Actuator Arm Ass'y.

$

$

Currently unavailable

65

MTD 710-0428

Hex Scr. 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

66

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

67

MTD 13115

Ferrule Ass'y.

$

$

Not available

68

MTD 710-0316

Hex Scr. 3/8-16 x 3.50" Lg.

$

$

Not available

69

MTD 761-0138

Spacer
(Superseded to HH-11-03172)

$

$

Not available

70

MTD HH-12-03045

Casting-Carrier Side

$

$

Currently unavailable

71

MTD HH-03436

Spacer

$

$

Currently unavailable

72

MTD HH-12-03041

Casting-Cam Side

$

$

Not available

73

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

74

MTD HH-18-02770

Cam Lever

$

$

Currently unavailable

75

MTD HH-03-03032

Thrust Wash. 5/16" I.D.
(Superseded to 736-3089)

$

$

Not available

76

MTD 712-0237

Hex Nut 5/16-24 Thd.

$4.99

$

In Stock, Qty 7

0

77

MTD HH-06-03031

Compression Spring

$

$

Not available

78

MTD HH-05-03034

Push Pin

$

$

Not available

79

MTD HH-03-03097

Disc-Back Up

$

$

Not available

80

MTD HH-15-02533

Pad-Friction

$

$

Not available

81

MTD 711-0242

Spacer .380 I.D. x 1.0" O.D. x .315

$3.99

$

In Stock, Qty 12

0

82

MTD 13056

PTO Mtg. Brkt. Ass'y.

$

$

Currently unavailable

83

MTD 710-0198

Hex Scr. 5/16-18 x 75" Lg.
(Superseded to 910-0198)

$

$

Not available

84

MTD 710-0617

Rd. Hd. R/B Neck Bolt 3/8-24 x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0
