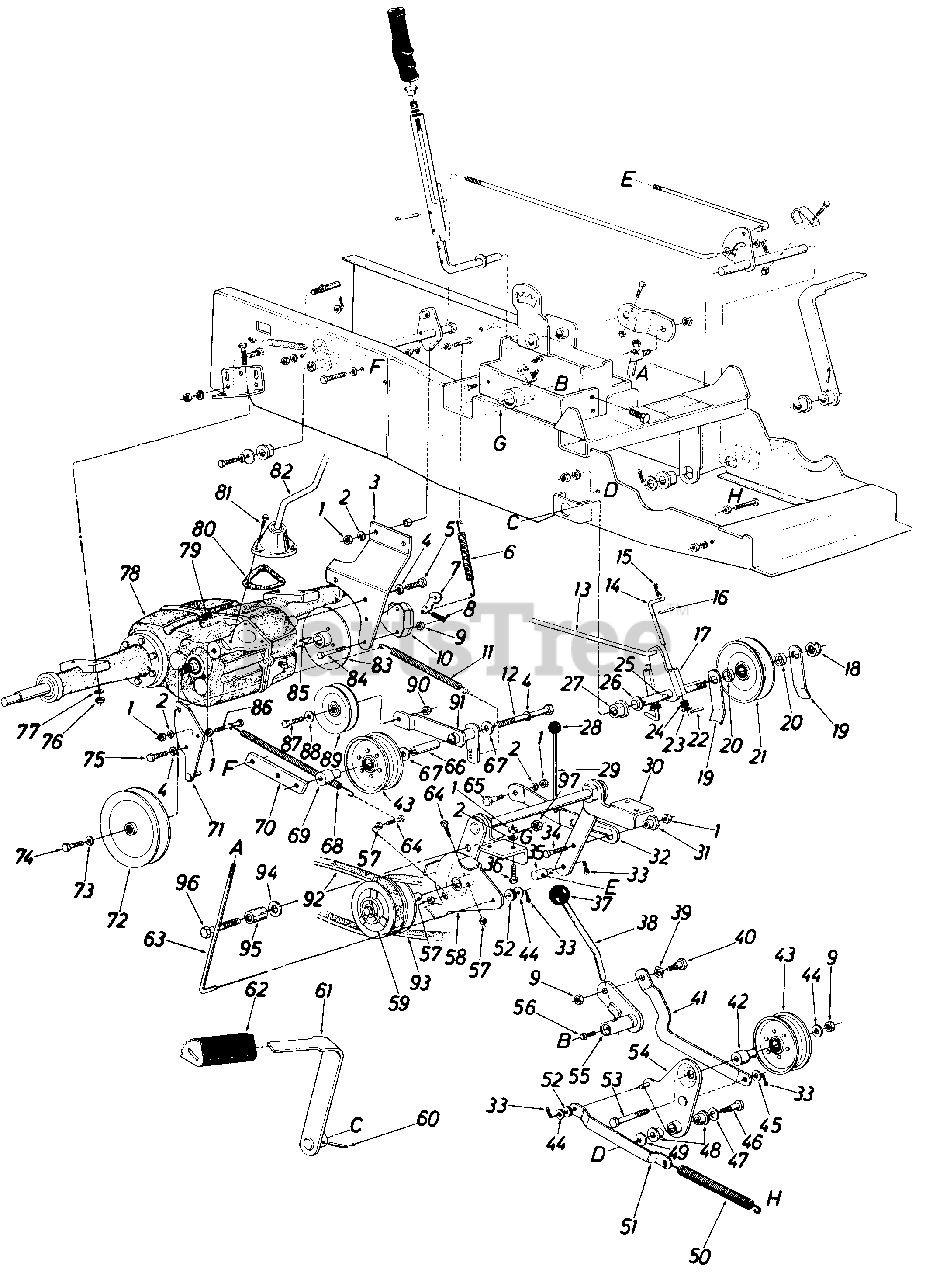

145-918-132 - Lawnflite Garden Tractor (1985) (Allied Hardware) Parts03 Parts Diagram

Garden Tractor

Parts03 Parts Diagram

  • Title

1

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

2

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

MTD 13012

Transaxle Support Brkt.

$

$

Currently unavailable

4

MTD 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg. (Grade 5)
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

6

MTD 732-0260

Brake Spring
(Superseded to 932-0260)

$22.99

$

In Stock, only 2 left!

0

7

MTD HH-18-02770

Cam Lever

$

$

Currently unavailable

8

MTD 732-0339

Brake Return Spring
(Superseded to 932-0339)

$

$

Not available

9

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

10

MTD 761-0137

Disc Brake Ass'y. Comp.

$

$

Not available

11

MTD 732-0233

Brake Spring
(Superseded to 932-0233)

$

$

Not available

12

MTD 710-0693

Hex Scr. 3/8-16 x 4.50" Lg.

$15.99

$

In Stock, only 2 left!

0

13

MTD 13062

Brake Rod Ass'y.

$

$

Currently unavailable

14

MTD 747-0226

Belt Guard

$

$

Currently unavailable

15

MTD 714-0104

Hairpin Cotter 5/16" Dia.

$4.49

$

In Stock, Qty 17

0

16

MTD 715-0138

Roll Pin 1/8" Dia. x .63" Lg. *
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

17

MTD 13082

Brake Control Brkt. Ass'y.

$

$

Currently unavailable

18

MTD 712-0221

Hex Nut 5/8-18 Thd.

$

$

Not available

19

MTD 13183

Belt Guide

$

$

Currently unavailable

20

MTD 750-0171

Spacer 5/8 I.D. x 7/8 O.D. x .25" Lg.

$

$

Not available

21

MTD 756-0283

V-Idler Pulley 4-1/2" O.D.

$

$

Not available

22

MTD 715-0138

Roll Pin 1/8" Dia. x .63" Lg.*
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

23

MTD 736-0117

Flat Wash.
(Superseded to 936-0117)

$7.49

$

In Stock, only 2 left!

0

24

MTD 732-0334

Spring

$4.49

$

In Stock, Qty 20+

0

25

MTD 715-0134

Roll Pin 3/16" Dia. x 1.50" Lg. *
(Superseded to 915-0134)

$

$

Not available

26

MTD 736-0188

Fl-Wash. .76 I.D. x .06

$4.99

$

In Stock, Qty 20+

0

27

MTD 741-0199

Flange Bearing-Plastic
(Superseded to 941-0490)

$14.99

$

In Stock, only 2 left!

0

28

MTD 720-0166

Parking Brake Knob

$

$

Not available

29

MTD 747-0217

Parking Brake Rod

$

$

Currently unavailable

30

MTD 13045

Mount Ass'y.

$

$

Currently unavailable

31

MTD 711-0404

Shoulder Nut

$

$

Not available

32

MTD 13108

Parking Brake Brkt.

$

$

Currently unavailable

33

MTD 714-0474

Cotter Pin 1/8" Dia. x .75" Lg.*

$4.99

$

In Stock, Qty 11

0

34

MTD 710-0322

Hex Scr. 5/16-18 x 1.00 Lg.*

$

$

Not available

35

MTD 711-0198

Ferrule
(Superseded to 911-0198)

$14.99

$

In Stock, only 4 left!

0

36

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

37

MTD 720-0175

Ball Knob
(Superseded to 931-0009A)

$15.99

$

In Stock, only 4 left!

0

38

MTD 747-0211

PTO Handle

$

$

Not available

39

MTD 736-0232

Wave Wash. 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

40

MTD 738-0143

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

41

MTD 13076

Clutch Idler Link

$

$

Currently unavailable

42

MTD 711-0598

Idler Adapter

$

$

Not available

43

MTD 711-0306

Flat Idler Pulley 4-5/8" Dia.

$122.99

$

Usually ships in 3-6 days

0

44

MTD 736-0300

Fl-Wash. 3/8" I.D.*

$4.99

$

In Stock, Qty 20+

0

45

MTD 736-0108

Fl-Wash. 1/2" I.D. x 3/4" O.D. *

$7.49

$

Usually ships in 3-6 days

0

46

MTD 738-0146

Shoulder Scr.

$

$

Not available

47

MTD 736-0100

Fl-Wash. 1/2" I.D.

$7.49

$

In Stock, only 4 left!

0

48

MTD 748-0108

Bronze Bearing
(Superseded to 948-0108)

$9.49

$

In Stock, Qty 20+

0

49

MTD 736-0219

Bell-Wash.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

50

MTD 736-0262

Extension Spring

$4.49

$

In Stock, Qty 20+

0

51

MTD 13077

Spring Strap

$

$

Currently unavailable

52

MTD 735-0127

Rubber Washer

$7.49

$

Usually ships in 3-6 days

0

53

MTD 710-0427

Hex Scr. 3/8-16 x 2.00" Lg.*
(Superseded to 710-3144)

$4.99

$

In Stock, Qty 20+

0

54

MTD 13074

Clutch Idler Plate

$

$

Currently unavailable

55

MTD 13053

Actuator Lever Ass'y.

$

$

Currently unavailable

56

MTD 710-0599

Hex Hd. Self-Tap Scr. 1/4-20 x.50" Lg.*

$4.49

$

In Stock, Qty 20+

0

57

MTD 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

58

MTD 13041

Variable Speed Belt Guard Ass'y.

$

$

Currently unavailable

59

MTD 717-0342

Variable Speed Pulley

$

$

Currently unavailable

60

MTD 715-0114

Spring Pin Spiral 1/4" Dia. x 1.50" Lg.

$9.99

$

In Stock, Qty 20+

0

61

MTD 13080

Foot Pedal Brkt. Ass'y.-R.H.

Variations

MTD 13080-0637

No Longer Available BRACKET-FO - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 735-0189

Foot Pad

Note: (Right and Left)

$

$

Not available

63

MTD 747-0213

Control Rod

$

$

Currently unavailable

64

MTD 710-0428

Hex Scr. 1/4-28 x 1.25" Lg. (Grade 5)

$2.49

$

In Stock, only 1 left!

0

65

MTD 738-0296

Shoulder Scr.

$4.49

$

In Stock, Qty 20+

0

66

MTD 750-0261

Spacer Tube

$

$

Not available

67

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.00" O.D. *

$4.99

$

In Stock, Qty 20+

0

68

MTD 732-0276

Extension Spring

$

$

Not available

69

MTD 711-0656

Idler Adapter

$

$

Not available

70

MTD 13116

Idler Bracket

$

$

Currently unavailable

71

MTD 13039

Spring Brkt. Ass'y.

$

$

Currently unavailable

72

MTD 756-0281

Transaxle Pulley 7.00" Dia.

$

$

Currently unavailable

73

MTD 736-0105

Belleville Wash.

$4.99

$

In Stock, Qty 20+

0

74

MTD 710-0180

Hex Scr. 3/8-24 x .75" Lg.*

$7.49

$

In Stock, Qty 5

0

75

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

76

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

77

MTD 736-0217

L-Wash. 5/8" Scr. Heavy Duty

$4.49

$

In Stock, only 3 left!

0

78

Transaxle

Note: (See Breakdown)

$

$

Not available

79

MTD 722-0141

Bumper

$

$

Currently unavailable

80

Part of Transaxle

$

$

Not available

81

Part of Transaxle

$

$

Not available

82

Part of Transaxle

$

$

Not available

83

MTD 761-0142

Brake Disc Ass'y.

$

$

Not available

84

MTD 710-0937

Hex Scr. 3/8-16 x 2.50" Lg.*
(Superseded to 710-0859)

$7.49

$

In Stock, Qty 20+

0

85

MTD 714-0137

Hi-Pro Key 1/8" x 1.06" Lg.

$

$

Not available

86

MTD 710-0395

Hex Scr. 5/16-18 x 2.25" Lg.*

$4.99

$

In Stock, Qty 12

0

87

MTD 710-0344

Hex Scr. 3/8-16 x 1.50" Lg.*

$6.49

$

In Stock, Qty 5

0

88

MTD 736-0267

Fl-Wash. 3/8" I.D.*

$4.99

$

In Stock, Qty 13

0

89

MTD 756-0293

4" Dia. V-Idler
(Superseded to 756-0487)

$51.99

$

In Stock, Qty 8

0

90

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd. *

$4.99

$

In Stock, only 3 left!

0

91

MTD 13060

Idler Arm Ass'y.

$

$

Currently unavailable

92

MTD 754-0212

V-Belt 5/8 x 45" Lg.

$

$

Not available

93

MTD 754-0227

V-Belt 5/8 x 63" Lg.

$

$

Not available

94

MTD 736-0105

Bell-Wash. 3/8 I.D.

$4.99

$

In Stock, Qty 20+

0

95

MTD 750-0261

Sleeve

$

$

Not available

96

MTD 710-0937

Hex Bolt 3/8-16 x 2.50" Lg.*
(Superseded to 710-0859)

$7.49

$

In Stock, Qty 20+

0

97

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0
