145-995-190 - White Outdoor Garden Tractor, 18hp (1985) Engine Mounting & Belts Parts Diagram

Garden Tractor, 18hp

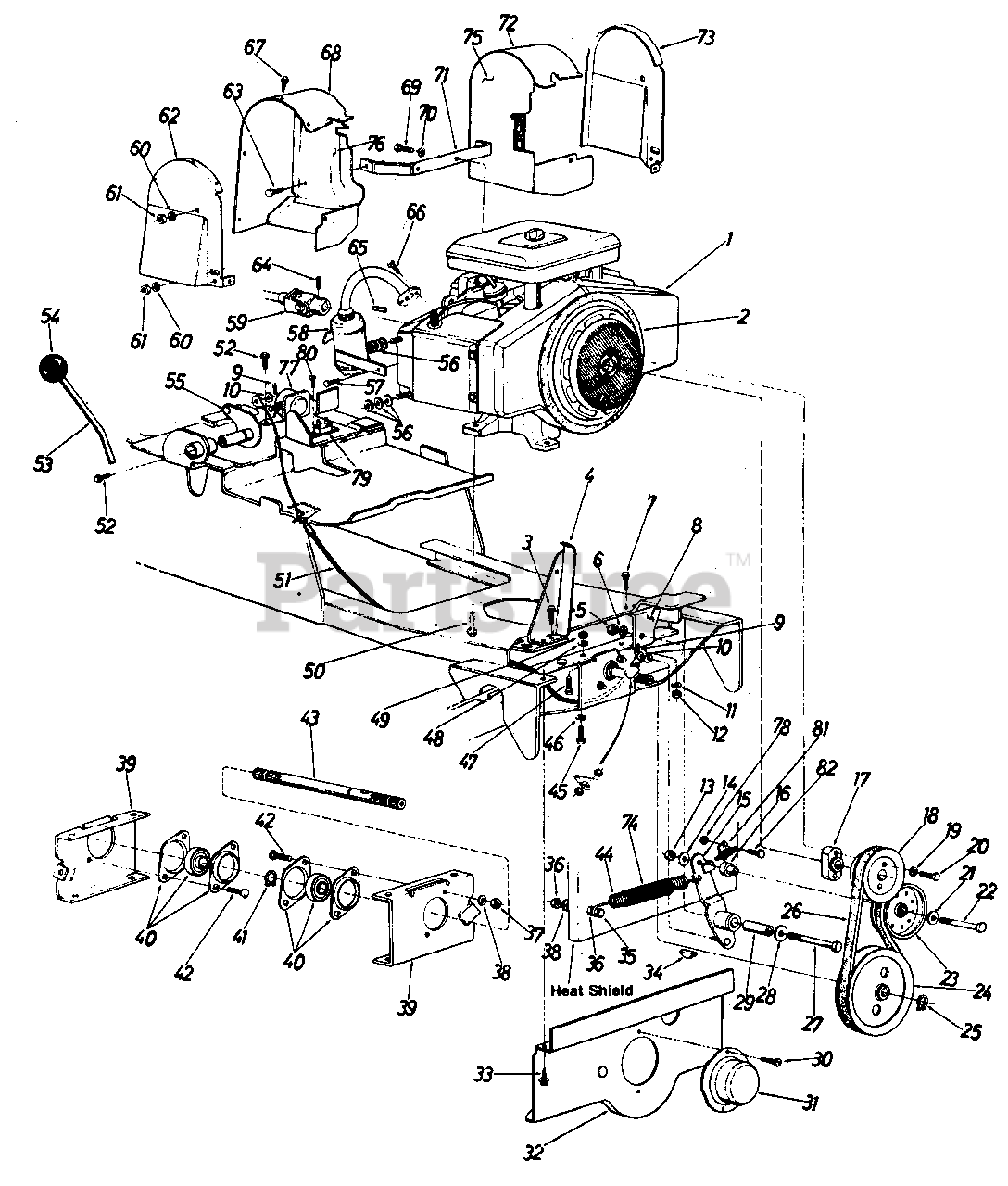

Engine Mounting & Belts Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 722-0148

Mylar Foam Strip

Note: NLA

$

$

Currently unavailable

3

MTD 710-0642

Hex Wash. Hd. Self-Tap. Scr.1/4-20 X .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 13590

Belt Guard

Note: NLA

Variations

MTD 13590-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

6

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

7

MTD 710-1260A

Hex Wash. Hd. Self-Tap Scr. 5/16-18 X .75" Lg.

$3.49

$

In Stock, Qty 20+

0

8

MTD 13554

PTO Support Brkt.

Note: NLA

Variations

MTD 13554-0637

No Longer Available BRACKET-PT - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 914-0101

Hairpin Cotter 1/2" Dia.
(Superseded to 714-0101)

$

$

Not available

10

MTD 936-0133

Fl-Wash. .38" I.D. x 1.25 O.D. x .10 Thk.
(Superseded to 736-0133)

$

$

Not available

11

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

12

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

13

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

14

MTD 936-0133

Fl-Wash. .38 I.D. x 1.25" O.D. x .10 Thk.
(Superseded to 736-0133)

$

$

Not available

15

MTD 13550-0637

PTO Idler Ass'y.

$

$

Not available

16

MTD 711-0598

Idler Adapter

$

$

Not available

17

MTD 748-0271

Pulley Spacer

Note: NLA

$

$

Not available

18

MTD 756-0312

1/2" V-Pulley 4.75" O.D. (Engine)

Note: NLA

$

$

Not available

19

MTD 936-0217

L-Wash. 3/8" Scr. H.D.
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

20

MTD 710-3144

Hex Scr. 3/8-16 X 2.00" Lg.*

$4.49

$

In Stock, Qty 20+

0

21

MTD 936-0133

Fl-Wash. .38" I.D. x 1.25 O.D. X .010 Thk.
(Superseded to 736-0133)

$

$

Not available

22

MTD 710-0859

Hex Scr. 3/8-16 X 2.50" Lg.*

$6.49

$

In Stock, Qty 20+

0

23

MTD 711-0306

Flat Idler Pulley

$107.99

$

Usually ships in 3-6 days

0

24

MTD 756-0309

1/2" V-Puley 7.00" O.D. (PTO)

Note: NLA

$

$

Not available

25

MTD 716-0127

Snap Ring

$11.99

$

Usually ships in 3-6 days

0

26

MTD 954-0234

V-Belt 1/2" x 41" Lg. (PTO)

$52.99

$

In Stock, only 1 left!

0

27

MTD 710-0859

Hex Scr. 3/8-16 x 2.50" Lg.*

$6.49

$

In Stock, Qty 20+

0

28

MTD 936-0133

Fl-Wash. .38" I.D. x 1.25" O.D. x .010
(Superseded to 736-0133)

$

$

Not available

29

MTD 750-0374

Spacer .375" I.D. x .62" O.D. x 1.830 Lg.

Note: NLA

$

$

Not available

30

MTD 910-0224

Hex "B" Tap Scr. #10 x .50" Lg.

$3.49

$

In Stock, only 1 left!

0

31

MTD 13546-0637

PTO Cup

$

$

Not available

32

MTD 13542

PTO Belt Guard Ass'y

Note: NLA

Variations

MTD 13542-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 710-1260A

Hex Wash. Self-Tap Scr. 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

34

MTD 714-0154

#91 Hi-Pro Key

Note: NLA

$

$

Not available

35

MTD 710-0528

Hex Scr. 5/16-18 X 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

MTD 936-0119

L-Wash. 5/16" Scr.*

$4.49

$

In Stock, Qty 20+

0

39

MTD 13553

PTO Brg. Retainer Brkt.

$

$

Not available

40

MTD 741-0242

1.00" Dia. Brg. w/ Flangette

$10.99

$

Usually ships in 3-6 days

0

41

MTD 716-0127

Snap Ring

$11.99

$

Usually ships in 3-6 days

0

42

MTD 710-0451

Carr. Bolt 5/16-18 X .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

43

MTD 738-0395

Spline Shaft

$225.99

$

Usually ships in 3-6 days

0

44

MTD 932-0262

Extension Spring (PTO Clutch)

$20.99

$

Usually ships in 3-6 days

0

45

MTD 910-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

46

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

47

MTD 910-0253

Hex Scr. 3/8-16 x 1.00: Lg.*
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

48

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

49

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

50

MTD 710-0502A

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.

$6.49

$

In Stock, Qty 7

0

51

MTD 946-0341

PTO Control Cable

$99.99

$

In Stock, only 4 left!

0

52

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50"

$3.99

$

In Stock, Qty 20+

0

53

MTD 747-0211

PTO Handle

Note: NLA

$

$

Not available

54

MTD 931-0009A

Ball Knob

$13.99

$

In Stock, Qty 5

0

55

MTD 13587

PTO Actuator Lever Ass'y.

Note: NLA

$

$

Not available

56

MTD 736-0288

Fl-Wash. .312" I.D. x 1.620" O.D. x .060

Note: NLA

$

$

Not available

57

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

58

MTD 751-0242

Muffler Ass'y. Comp.-R.H.

Note: NLA

$

$

Not available

59

MTD 717-0402

Universal Joint Ass'y. Comp.

Note: NLA

$

$

Not available

60

MTD 936-0264

Fl-Wash. .312" I.D. x .630" O.D. x .063

$6.49

$

In Stock, Qty 11

0

61

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 13722

Shroud Outer-R.H.

Note: NLA

$

$

Currently unavailable

63

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

64

MTD 710-0666

Sq. Hd. Set Scr. 5/16-18 x .38" Lg. (Cup Point)

Note: NLA

$

$

Not available

65

MTD 914-0114

Sq. Key 1/4" x 2.00" Lg.

$3.99

$

In Stock, only 1 left!

0

66

MTD 710-0751

Hex Wash. Hd. Scr. 1/4-20 x 5/8" Lg.-Grade 5

$3.99

$

In Stock, Qty 20+

0

67

MTD 910-0224

Hex "AB" Tap Scr. #10 x .50 " Lg.

$3.49

$

In Stock, only 1 left!

0

68

MTD 13720

Shroud Cover-R.H.

Note: NLA

$

$

Not available

69

MTD 710-0157

Hex Scr. 5/16-24 X .75" Lg.*

$3.99

$

In Stock, Qty 16

0

70

MTD 936-0119

L-Wash. 5/16" Scr.

$4.49

$

In Stock, Qty 20+

0

71

MTD 13723

Shroud Support Brkt.

Note: NLA

$

$

Not available

72

MTD 13719

Shroud Cover-L.H.

Note: NLA

$

$

Not available

73

MTD 13721

Shroud Outer-L.H.

Note: NLA

$

$

Currently unavailable

74

MTD 731-0466

Spring Cover Tubing (PTO Clutch)

Note: NLA

$

$

Not available

75

MTD 13714

Shroud Inner Ass'y.-L.H.

Note: NLA

$

$

Currently unavailable

76

MTD 13717

Shroud Inner Ass'y.-R.H.

Note: NLA

$

$

Currently unavailable

77

MTD 925-0771

Solenoid

$32.99

$

In Stock, Qty 5

0

78

MTD 910-0289

Hex Scr. 1/4-20 X 1/2" Lg.

$3.49

$

Usually ships in 3-6 days

0

79

MTD 753-0685

Circuit Breaker

$35.99

$

In Stock, only 1 left!

0

80

MTD 710-0351

Truss Mach. Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 4 left!

0

81

MTD 725-0842

Safety Switch (PTO)

Note: NLA

$

$

Not available

82

MTD 936-0329

L-Wash. 1/4" Scr.*

$4.49

$

In Stock, Qty 13

0

MTD 751-0241

Muffler Ass'y. Comp.-L.H.

Note: NLA

$

$

Currently unavailable
