145-995-190 - White Outdoor Garden Tractor, 18hp (1985) Frame Assembly Parts Diagram

Garden Tractor, 18hp

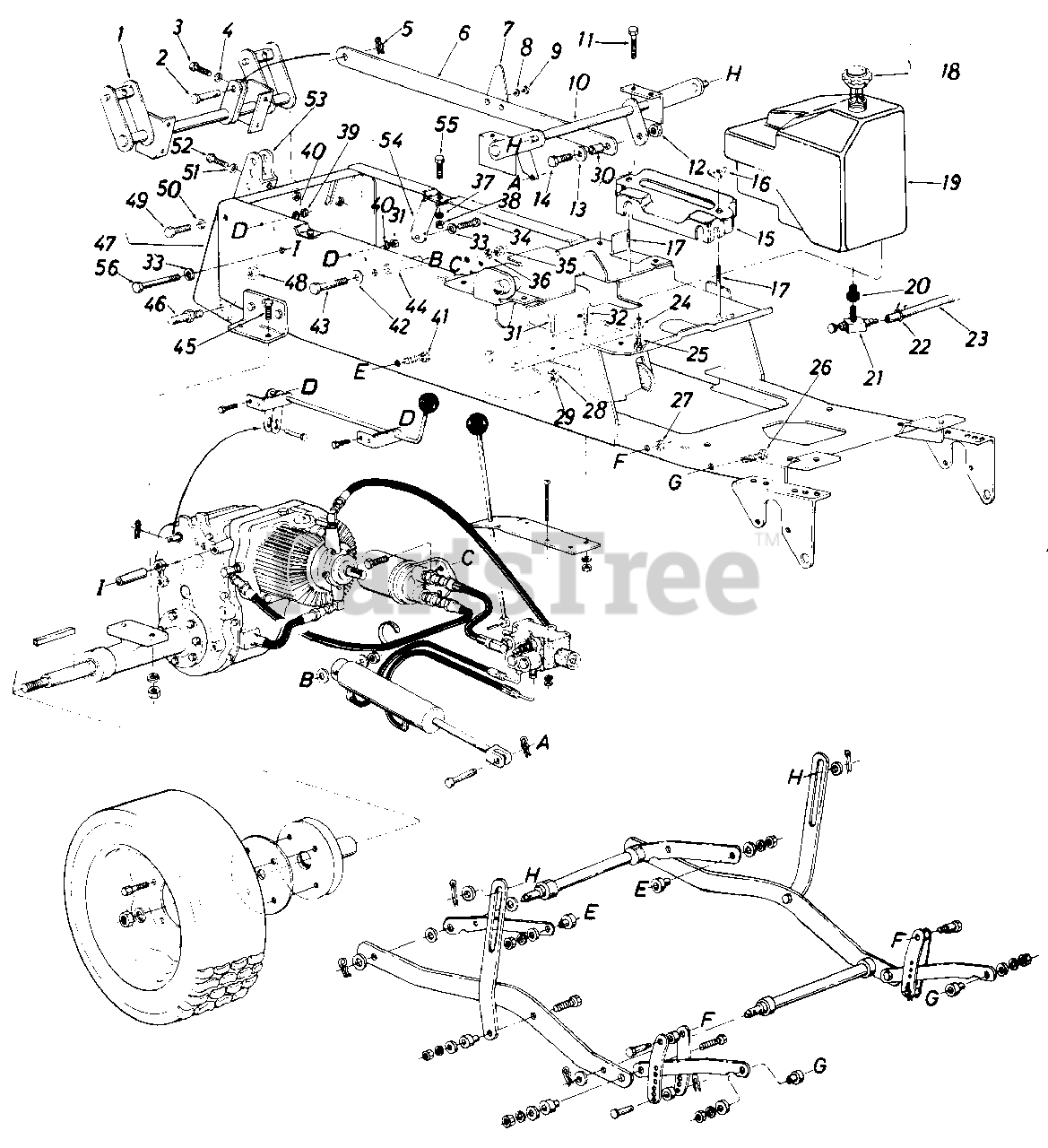

Frame Assembly Parts Diagram

  • Title

1

MTD 13135-0637

Rear Lift Shaft Ass'y.

$

$

Not available

2

MTD 711-0654

Clevis Pin

$14.99

$

Usually ships in 3-6 days

0

3

MTD 710-0514

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5

$3.99

$

In Stock, Qty 20+

0

4

MTD 936-0217

L-Wash. 3/8" Scr. H.D.
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

5

MTD 914-0470

Cotter Pin 118" Dia. x 1.25" Lg.*
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

6

MTD 13709-0637

Push Bar Ass'y.

$

$

Not available

7

MTD 13535

Position Indicator

Note: NLA

$

$

Not available

8

MTD 936-0119

L-Wash. 5/16" Scr.*

$4.49

$

In Stock, Qty 20+

0

9

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 13501

Lift Shaft Ass'y.

Note: NLA

Variations

MTD 13501-0637

No Longer Available SHAFT ASM - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 710-0649

Hex Self-Tap Scr. 3/8-24 x .88" Lg.

Note: NLA

$

$

Not available

12

MTD 912-0239

Hex Cent. L-Nut 1/2-20 Thd.
(Superseded to 712-0239)

$

$

Not available

13

MTD 936-0179

Fl-Wash.
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0504

Hex Scr. 1/2-20 x 1.25" Lg.*

Note: NLA

$

$

Not available

15

MTD 731-0707

Battery Cover

Note: NLA

$

$

Not available

16

MTD 912-0113

Wing Nut 1/4-20 Thd.

$6.49

$

In Stock, only 2 left!

0

17

MTD 911-0222A

Battery Hold Down Rods

$11.99

$

In Stock, only 1 left!

0

18

MTD 951-0226A

Gas Tank Cap

$53.99

$

In Stock, Qty 14

0

19

MTD 751-0243

Gas Tank Ass'y.

Note: NLA

$

$

Not available

20

MTD 935-0149

Bushing

$7.99

$

In Stock, Qty 20+

0

21

MTD 951-0171

Fuel Shut-Off Valve with Screen

$19.99

$

In Stock, only 2 left!

0

22

MTD 726-0184

Gas Line Clamp 7/16"

Note: NLA

$

$

Currently unavailable

23

MTD 731-0470

Gas Line 30" Lg.

Note: NLA

$

$

Currently unavailable

24

MTD 736-0270

Bell-Wash.

$3.99

$

In Stock, Qty 13

0

25

MTD 910-0289

Hex Scr. 1/4-20 x .38" Lg.*

$3.49

$

Usually ships in 3-6 days

0

26

MTD 710-0459A

Hex Scr. 3/8-24 x 1.50" Lg.*

$6.99

$

In Stock, Qty 10

0

27

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

28

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

29

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

30

MTD 950-0336

Push Bar Sleeve

$

$

Not available

31

MTD 910-0253

Hex Scr. 3/8-16 x 1.00 Lg. Grade 5
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-3008

Hex Scr. 5/16-18 x .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

33

MTD 936-0921

L-Wash. 1/2" Scr.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.*

$

$

Not available

35

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 936-0119

L-Wash. 5/16" Scr.*

$4.49

$

In Stock, Qty 20+

0

37

MTD 936-0217

L-Wash. 3/8" Scr. H.D.
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

38

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

39

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.49

$

In Stock, only 2 left!

0

40

MTD 936-0329

L-Wash. 1/4" Scr.*

$4.49

$

In Stock, Qty 13

0

41

MTD 710-0459A

Hex Scr. 3/8-24 x 1.50" Lg.*

$6.99

$

In Stock, Qty 10

0

42

MTD 936-0179

Fl-Wash. .50" I.D. x 1.25 O.D.
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0515

Hex Scr. 1/2-20 x 31/2 Lg. Grade 5

$10.99

$

Usually ships in 3-6 days

0

44

MTD 750-0443

Spacer for Cylinder

Note: NLA

$

$

Not available

45

MTD 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.*

$4.99

$

In Stock, Qty 20+

0

46

MTD 711-0497

Link Clevis Pin

$

$

Not available

47

MTD 13196-0637

Hitch Plate Ass'y.

$

$

Not available

48

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

49

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg. Grade 5

$3.99

$

In Stock, Qty 17

0

50

MTD 936-0169

L-Wash. 3/8" Scr.
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

51

MTD 936-0217

L-Wash. 3/8" Scr. H.D.
(Superseded to 736-0217)

$3.99

$

In Stock, Qty 13

0

52

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg. Grade 5

$3.99

$

In Stock, Qty 17

0

53

MTD 13026-0637

Hitch Brkt.

$56.99

$

Usually ships in 3-6 days

0

54

MTD 13530

Transmission Brace

Note: NLA

$

$

Currently unavailable

55

MTD 910-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

56

MTD 710-0490

Hex Scr. 1/2-13 x 2.75" Lg.*

Note: NLA

$

$

Not available
