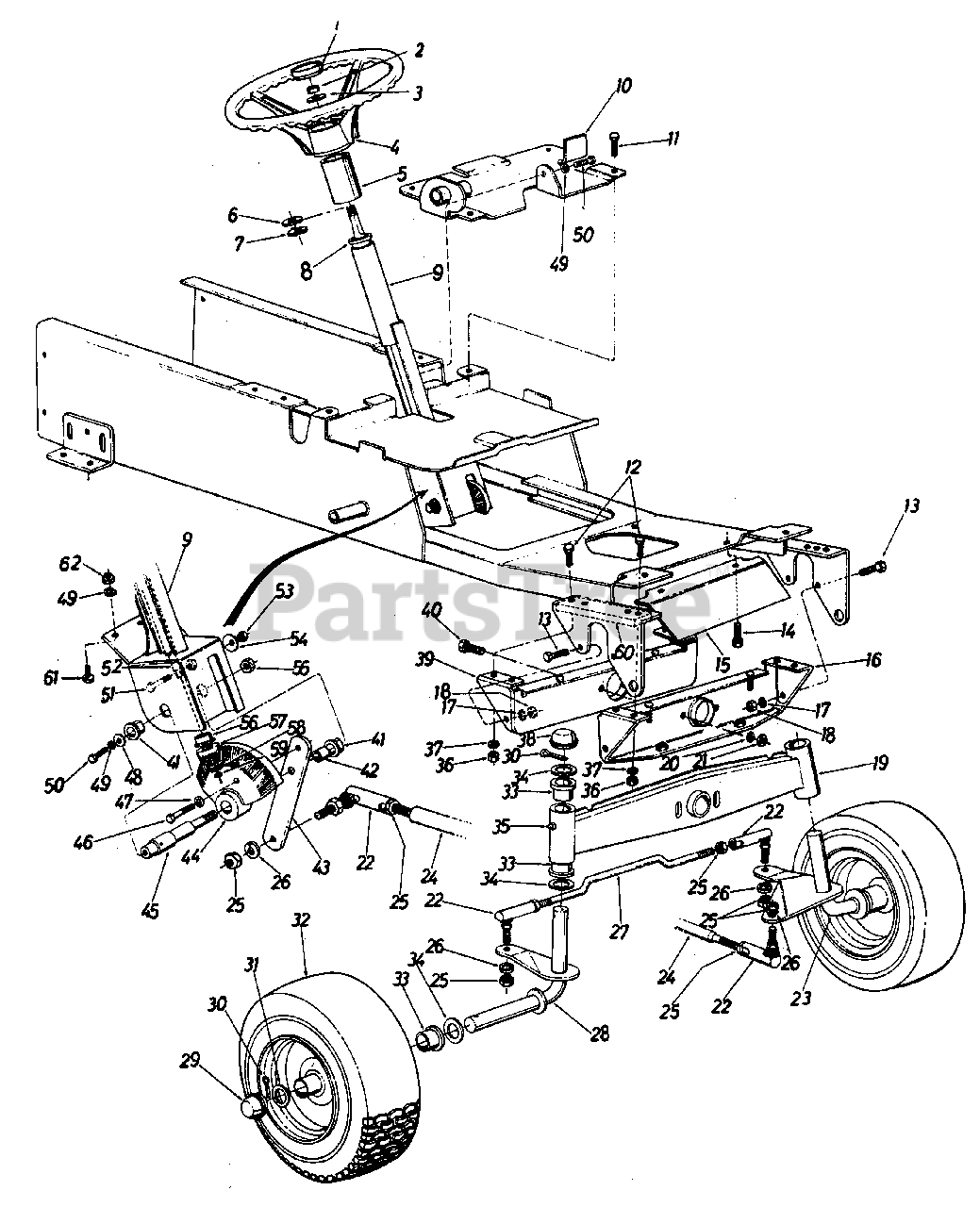

145-995-190 - White Outdoor Garden Tractor, 18hp (1985) Steering Assembly Parts Diagram

Garden Tractor, 18hp

Steering Assembly Parts Diagram

  • Title

1

MTD 931-0220

Steering Wheel Cap

$8.49

$

In Stock, only 1 left!

0

2

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 19

0

3

MTD 736-0270

Bel l-Wash .

$3.99

$

In Stock, Qty 13

0

4

MTD 731-0356

Steering Wheel

Note: NLA

$

$

Not available

5

MTD 750-0362

Steering Tube Outer

Note: NLA

$

$

Not available

6

MTD 736-0296

Double"D" Fl-Wash.

Note: NLA

$

$

Not available

7

MTD 736-0174

Wave Wash. .660 I.D. x .88 O.D.

$6.49

$

Usually ships in 3-6 days

0

8

MTD 741-0138

Ball Brg. .63 I.D. x 1.38 O.D.

Note: NLA

$

$

Not available

9

MTD 13515-0637

Steering Column Ass'y.

$166.99

$

In Stock, only 1 left!

0

9

MTD 738-0408

Steering Shaft

Note: NLA

$

$

Not available

10

MTD 13586

Dash Panel Base Plate Ass'y.

Note: NLA

$

$

Not available

11

MTD 710-0623

Hex Self Tap Scr. 3/8-16 x .75' Lg.

$3.99

$

In Stock, Qty 8

0

12

MTD 710-0344

Hex Scr. 3/8-16 x 150" Lg.*

$5.49

$

In Stock, only 2 left!

0

13

MTD 910-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0502A

Hex Wash. S.F. Tap Scr. 3/8-16 x 1.25" Lg.

$6.49

$

In Stock, Qty 7

0

15

MTD 13547

Dust Shield

Note: NLA

$

$

Not available

16

MTD 13032

Front Pivot Brkt. Ass'y.

Note: NLA

Variations

MTD 13032-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

18

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

19

MTD 13008

Pivot Bar Ass'y.

Note: NLA

$

$

Currently unavailable

20

MTD 936-0219

Bell-Wash. 3/8" Scr.*

$3.99

$

In Stock, only 1 left!

0

21

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

22

MTD 923-0179

Drag Link End

$39.99

$

In Stock, only 2 left!

0

23

MTD 13001

Axle Ass'y. L.H.

Note: NLA

$

$

Not available

24

MTD 747-0294

Drag Link

$54.99

$

In Stock, only 2 left!

0

25

MTD 712-3029

Hex Nut 1/2-20 Thd.

$6.49

$

In Stock, Qty 8

0

26

MTD 936-0921

L-Wash. 1/2" Scr.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

27

MTD 747-0279

Tie Rod

Note: NLA

$

$

Not available

28

MTD 13002

Axle Ass'y. R.H.

Note: NLA

$

$

Not available

29

MTD 731-0556

Dust Cover

$4.49

$

In Stock, Qty 7

0

30

MTD 714-0142

Cotter Pin 3/16" Dia. x 1.50" Lg.*

$6.49

$

In Stock, only 1 left!

0

31

MTD 936-0259

Fl-Wash. 1.00" I.D. x 1.62" O.D.

$

$

Not available

32

MTD 734-1221

Front Wheel Ass'y. Comp.

Note: NLA

Variations

MTD 734-1221-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 734-1221-0912

No Longer Available WHL ASM 1 - Dico Gray (0912)

$

$

Not available

MTD 734-1221-0931

No Longer Available WHL ASM 1 - Carlisle Beige (0931)

$

$

Not available

MTD 734-1221-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1221-0942

No Longer Available WHL ASM 1 - Dico Yellow (0942)

$

$

Not available

$

$

32

MTD 734-0787

Front Wheel Rim Only

Note: NLA

$

$

Not available

32

MTD 734-1222

Front Wheel Tire Only

Note: NLA

$

$

Currently unavailable

32

MTD 934-0255

Air Valve

$3.99

$

In Stock, Qty 20+

0

33

MTD 931-0374

Flange Brg. 1.00" I.D.

$6.99

$

In Stock, Qty 20+

0

34

MTD 936-0259

Fl-Wash. 1.00" I.D. x 1.62" O.D.

$

$

Not available

35

MTD 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

36

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

37

MTD 936-0169

L-Wash 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

38

MTD 931-0349

Dust Cover

$10.99

$

In Stock, only 3 left!

0

39

See Ref. No. 16

$

$

Not available

40

MTD 710-0859

Hex Scr. 3/8-16 x 2.50" Lg.*

$6.49

$

In Stock, Qty 20+

0

41

MTD 941-0490

Flange Brg. w/ Flats .753 I.D.

$12.99

$

Usually ships in 3-6 days

0

42

MTD 750-0333

Steering Gear Shaft Spacer

$19.99

$

Usually ships in 3-6 days

0

43

MTD 13132

Steering Arm

Note: NLA

$

$

Not available

44

MTD 948-0238

Bevel Gear

$

$

Not available

45

MTD 938-0342

Steering Gear Shaft

$128.99

$

Usually ships in 3-6 days

0

46

MTD 710-0344

Hex Scr. 3/8-16 x 1.50" Lg.*

$5.49

$

In Stock, only 2 left!

0

47

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

48

MTD 936-0133

Fl-Wash. .406 I.D. x 1.25" O.D.
(Superseded to 736-0133)

$

$

Not available

49

MTD 936-0169

L-Wash. 3/8" Scr.*
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

50

MTD 710-0216

Hex Scr. 3/8-16 x .75" Lg.*

$3.99

$

In Stock, Qty 17

0

51

MTD 710-0670

Nylon Hex Scr. 3/8-16 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

52

MTD 738-0408

Steering Shaft

Note: NLA

$

$

Not available

53

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

54

MTD 936-0219

Bell-Wash. .400 I.D. x 1.13 O.D.

$3.99

$

In Stock, only 1 left!

0

55

MTD 912-0239

Hex Ins. L-Nut 1/2-20 Thd.
(Superseded to 712-0239)

$

$

Not available

56

MTD 948-0227A

Hex Flange Brg. .630 I.D.

$7.99

$

In Stock, Qty 20+

0

57

MTD 948-0237

Pinion Gear

$20.99

$

In Stock, Qty 11

0

58

MTD 936-0264

Fl-Wash. 3/8" Dia.

$6.49

$

In Stock, Qty 11

0

59

MTD 912-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

60

MTD 13539

Spacer

Note: NLA

Variations

MTD 13539-0637

No Longer Available SPACER - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.*

$4.49

$

In Stock, Qty 11

0

62

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0
