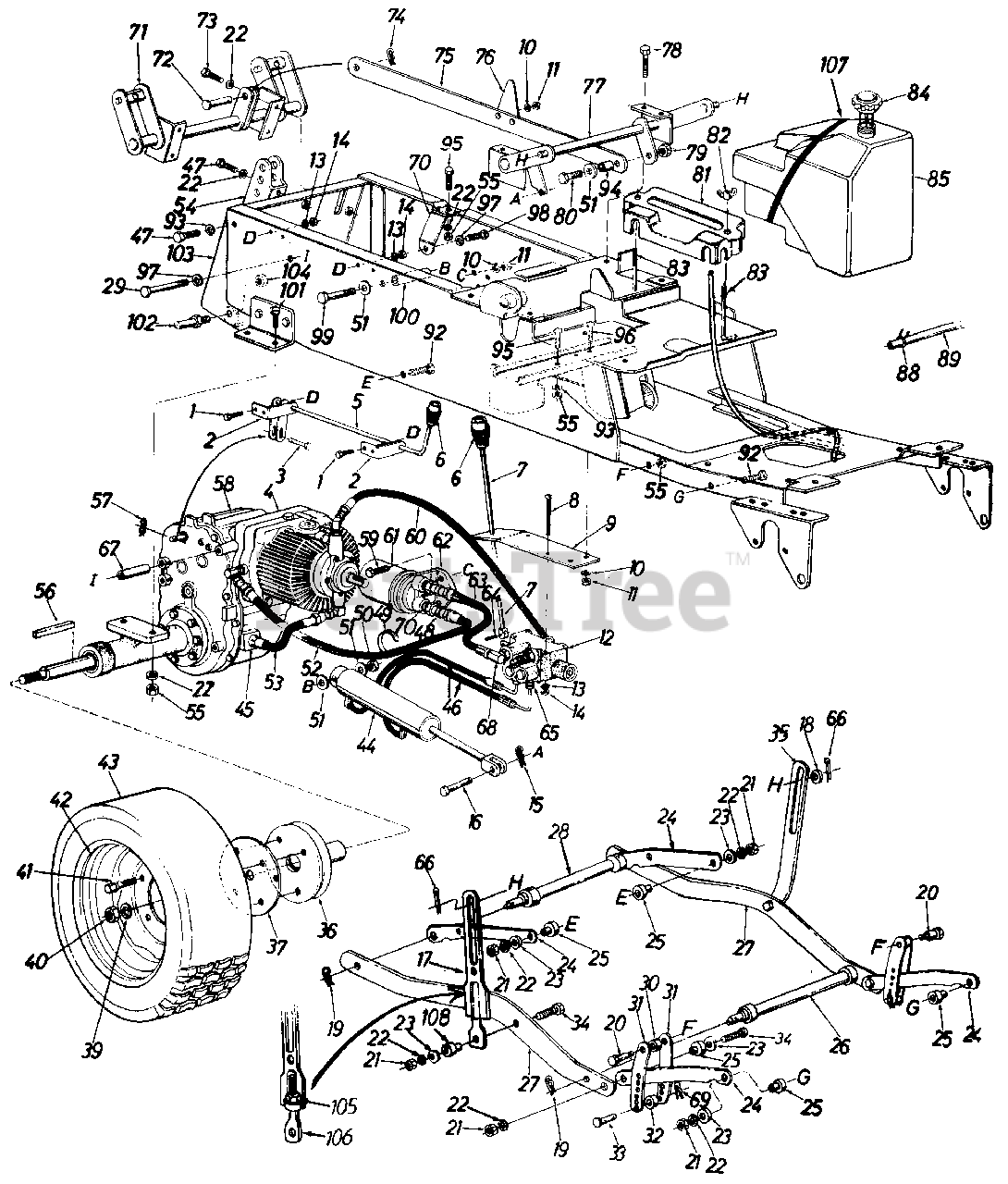

145-999-401 - Yard-Man Garden Tractor (1995) Wheels, Rear/Lift Assembly/Fuel Tank/Lift, Rear/Cylinder, Hydraulic Parts Diagram

Garden Tractor

Wheels, Rear/Lift Assembly/Fuel Tank/Lift, Rear/Cylinder, Hydraulic Parts Diagram

  • Title

1

MTD 710-0237

Hex Bolt 1/4-20 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

2

MTD 13524

Hi-Lo Speed Control Brkt.

Variations

13524-0637

MTD 13524-0637

Hi-Lo Speed Control Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 711-0684

Clevis Pin 1/4" Dia.

$

$

Not available

4

MTD 717-0344

Hydrostatic Pump Comp.

$

$

Not available

5

MTD 13532

Hi-Lo Control Handle Ass'y.

$

$

Not available

6

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$11.99

$

In Stock, Qty 6

0

7

MTD 13531

Cylinder Control Handle Ass'y.

$

$

Not available

8

MTD 710-0105

Truss Mach. Scr. 1/4-20 x 3.00" Lg.

$

$

Not available

9

MTD 13534

Valve Base Plate

Variations

13534-0648

MTD 13534-0648

No Longer Available PLATE-BASE - TECH GRAY (0648)

$

$

Not available

$

$

10

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

12

MTD 727-0200

Valve Ass'y. Comp.
(Superseded to 927-0200)

$

$

Not available

13

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

14

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

15

MTD 714-0101

Hairpin Cotter 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

16

MTD 711-0140

Clevis Pin 1/2" Dia.
(Superseded to 711-0308)

$

$

Not available

17

MTD 683-0031

Adj. Deck Link

$

$

Not available

18

MTD 736-0156

Fl-Wash. .62" I.D. x 1.12"

$4.99

$

In Stock, Qty 11

0

19

MTD 714-0147

Hairpin Cotter

$5.49

$

In Stock, Qty 6

0

20

MTD 738-0148

Shld. Bolt .498" Dia. x .66"
(Superseded to 938-0148)

$17.99

$

Usually ships in 3-6 days

0

21

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, only 2 left!

0

22

MTD 736-0217

L-Wash. 3/8" I.D. - H.D.

$

$

Not available

23

MTD 736-0258

Fl-Wash. .38" I.D. x 1.00"

$4.99

$

In Stock, Qty 10

0

24

MTD 13151

Lift Arm
(Superseded to 13151-0637)

Variations

13151-0637

MTD 13151-0637

Lift Arm - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 748-0241

Spacer .385" I.D.

$

$

Not available

26

MTD 13729

Cross Shaft Ass'y. - Front

$

$

Currently unavailable

27

MTD 13139

Lift Arm Link

Variations

13139-0637

MTD 13139-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

13139-0648

MTD 13139-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

13139-0665

MTD 13139-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 13728

CRoss Shaft Ass'y. - Rear

$

$

Not available

29

MTD 710-0490

Hex Bolt 1/2-13 x 2.75"

$

$

Not available

30

MTD 711-0146

Collar .50" I.D. x 1.0"

$

$

Not available

31

MTD 13545

Index Brkt.

Variations

13545-0637

MTD 13545-0637

Index Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 711-0242

Spacer .38 I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 8

0

33

MTD 711-0173

Clevis Pin 3/8" Dia.
(Superseded to 711-04722)

$7.49

$

In Stock, only 3 left!

0

34

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. - Grade 5
(Superseded to 710-0459A)

$7.49

$

In Stock, only 1 left!

0

35

MTD 13570

Deck Link

Variations

13570-0637

MTD 13570-0637

No Longer Available LINK-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 13572

Rear Wheel Hub Ass'y.

Variations

13572-0637

MTD 13572-0637

No Longer Available HUB ASM-W - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 13574

Hub Plate
(Superseded to 13574A-0637)

$

$

Not available

39

MTD 736-0364

L-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

40

MTD 712-0288

Hex Ins. L-Nut 3/4-16 Thd.
(Superseded to 912-0288)

$

$

Not available

41

MTD 710-0470

Wheel Lug Bolt
(Superseded to 910-0470)

$

$

Not available

42

MTD 734-0935

Rear Wheel Rim Only

Variations

734-0935-0499

MTD 734-0935-0499

No Longer Available WHEEL ASM - CUB BEIGE (0499)

$

$

Not available

734-0935-0662

MTD 734-0935-0662

No Longer Available WHEEL ASM - OYSTER GRAY (0662)

$

$

Not available

734-0935-0674

MTD 734-0935-0674

No Longer Available WHEEL ASM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

MTD 734-0934

Rear Wheel Ass'y. Comp. 27 x 9.50

Variations

734-0934-0911

MTD 734-0934-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

734-0934-0912

MTD 734-0934-0912

No Longer Available 911 Wheel - Dico Gray (0912)

$

$

Not available

734-0934-0941

MTD 734-0934-0941

No Longer Available WHL ASM 2 - Carlisle Yellow (0941)

$

$

Not available

734-0934-0942

MTD 734-0934-0942

No Longer Available WHEEL ASM - Dico Yellow (0942)

$

$

Not available

$

$

MTD 734-0397

Tire Only 27 x 9.50

Variations

734-0397-0901

MTD 734-0397-0901

No Longer Available - Carlisle (0901)

$

$

Not available

734-0397-0902

MTD 734-0397-0902

No Longer Available TIRE-TUBEL - Dico (0902)

$

$

Not available

$

$

MTD 734-0936

Air Valve

$

$

Currently unavailable

44

MTD 727-0159

Hydraulic Cylinder

$

$

Not available

45

MTD 727-0220

7/8-14 UNF-2A Thd. 5/8 Tube Fitting

$

$

Not available

46

MTD 727-0219

Valve to Cylinder Hose - 20"

$

$

Not available

47

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg. - Grade 5

$4.49

$

In Stock, only 4 left!

0

48

MTD 727-0222

Bushing Reducer 1/2-14 NPTF to 3/8-18 NPTF

$

$

Not available

49

MTD 726-0178

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

50

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$7.49

$

In Stock, Qty 8

0

51

MTD 736-0179

Fl-Wash. .50" I.D. x 1.25

$4.99

$

In Stock, Qty 12

0

52

MTD 727-0217

Filter Return Hose 24" Lg.

$

$

Not available

53

MTD 749-0309

Pump Tube Ass'y.

$

$

Not available

54

MTD 13026

Hitch Brkt.
(Superseded to 13026-0637)

Variations

13026-0637

MTD 13026-0637

Hitch Bracket - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

55

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

56

MTD 714-0114

Sq. Key 1/4" x 1/4" x 2"
(Superseded to 914-0114)

$4.49

$

In Stock, only 2 left!

0

57

MTD 714-0104

Hairpin Cotter 1/4" Dia.

$4.49

$

In Stock, Qty 10

0

58

Peerless Transaxle (See Breakdown)

$

$

Not available

59

MTD 710-0528

Hex Bolt 5/16-18 x 1.25"

$4.99

$

In Stock, Qty 20+

0

60

MTD 727-0167

Pump to Valve Hose

$

$

Not available

61

MTD 727-0162

Fram Filter Ass'y. PH-16

$

$

Not available

62

MTD 727-0163

Filter Base

$

$

Not available

63

MTD 727-0218

Valve to Filter Hose-8.38"

$

$

Not available

64

MTD 715-0129

Spring Pin Spiral 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

65

MTD 727-0187

Flare Adapter

$

$

Not available

66

MTD 714-0115

Cotter Pin 1/8" Dia. x .10"

$4.49

$

In Stock, only 2 left!

0

67

MTD 750-0417

Spacer

$

$

Not available

68

MTD 727-0175

Adapter 9/16-18 to 9/16-18

$

$

Not available

69

MTD 714-0145

Hairpin Cotter

$5.49

$

In Stock, Qty 20+

0

70

MTD 13530

Transmission Brace

$

$

Currently unavailable

71

MTD 13135

Rear Lift Shaft Ass'y.
(Superseded to 13135-0637)

Variations

13135-0637

MTD 13135-0637

SHAFT-LIFT-RR - POWDER BLACK (0637)

$

$

Not available

$

$

72

MTD 711-0654

Clevis Pin

$17.99

$

Usually ships in 3-6 days

0

73

MTD 710-0514

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5

$4.49

$

In Stock, Qty 16

0

74

MTD 714-0470

Cotter Pin 1/8" dia. x 1.25"

$4.49

$

In Stock, Qty 5

0

75

MTD 13709

Push Bar Ass'y.

Variations

13709-0637

MTD 13709-0637

Push Bar Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 13535

Position Indicator

$

$

Not available

77

MTD 13501

Lift Shaft Ass'y.

Variations

13501-0637

MTD 13501-0637

No Longer Available SHAFT ASM - POWDER BLACK (0637)

$

$

Not available

$

$

78

MTD 710-0649

Hex Self-Tap Scr. 3/8-24 x .88" Lg.

$

$

Not available

79

MTD 712-0239

Hex Cent. L-Nut 1/2-20 Thd.

$6.49

$

In Stock, Qty 17

0

80

MTD 710-0504

Hex Scr. 1/2-20 x 1.25" Lg.

$

$

Not available

81

MTD 731-0707

Battery Cover

$

$

Not available

82

MTD 712-0113

Wing Nut 1/4-20 Thd.
(Superseded to 912-0113)

$7.49

$

In Stock, only 2 left!

0

83

MTD 711-0222

Battery Hold Down Rods
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

84

MTD 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$60.99

$

In Stock, only 3 left!

0

85

MTD 751-0238A

Gas Tank Ass'y.

$

$

Not available

88

MTD 726-0205

Gas Line Clamp 1/2"

$4.49

$

In Stock, Qty 15

0

89

MTD 751-0535-46

Gas Line 46" Lg.
(Superseded to 751-10349-54)

$56.99

$

Usually ships in 3-6 days

0

92

MTD 710-0459

Hex Scr. 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$7.49

$

In Stock, only 1 left!

0

93

MTD 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 11

0

94

MTD 750-0336

Push Bar Sleeve
(Superseded to 950-0336)

$

$

Not available

95

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg. - Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 16

0

96

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

97

MTD 736-0921

L-Wash. 1/2" Scr.

$4.99

$

In Stock, Qty 9

0

98

MTD 710-0474

Hex Scr. 1/2-13 x 1.25" Lg.

$

$

Not available

99

MTD 710-0515

Hex Scr. 1/2-20 x 3-1/2" Lg. - Grade 5

$12.99

$

Usually ships in 3-6 days

0

100

MTD 750-0443

Spacer for Cylinder

$

$

Not available

101

MTD 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 19

0

102

MTD 711-0497

Link Clevis Pin

$

$

Not available

103

MTD 13196

Hitch Plate Ass'y.
(Superseded to 13196-0637)

Variations

13196-0637

MTD 13196-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

13196-0648

MTD 13196-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

13196-0665

MTD 13196-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

104

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$7.49

$

Usually ships in 3-6 days

0

105

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.99

$

In Stock, Qty 20+

0

106

MTD 711-0817

Eye Bolt
(Superseded to 911-0817)

$15.99

$

In Stock, only 3 left!

0

107

MTD 726-0288

Tie Strap

$15.99

$

In Stock, only 1 left!

0

108

MTD 750-0526

Spacer .385" I.D.

$4.99

$

In Stock, Qty 10

0
