145 B - Husqvarna Backpack Blower (1997-04) Carburetor Parts Parts Diagram

Backpack Blower

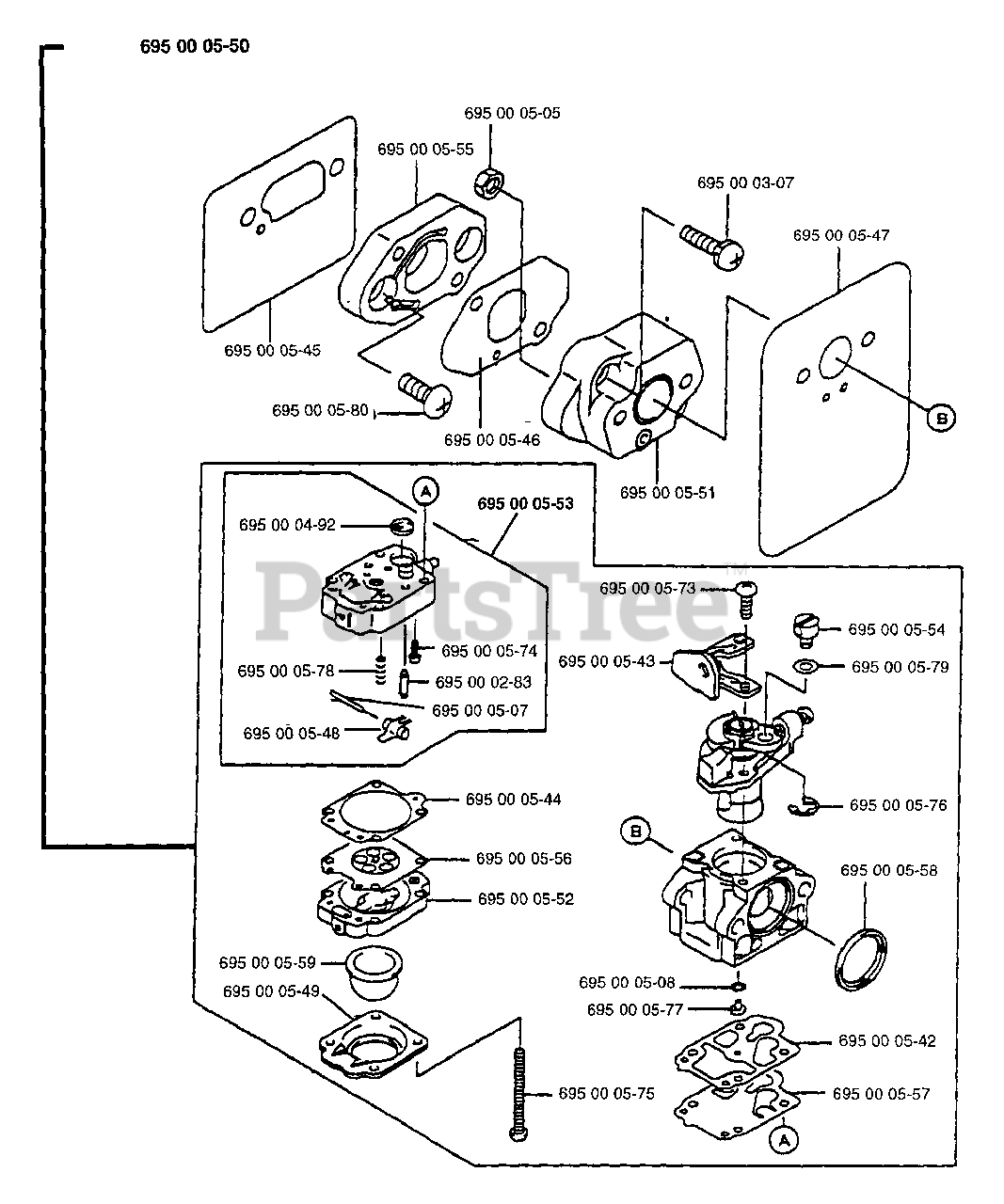

Carburetor Parts Parts Diagram

  • Title

695000505

Husqvarna 695000505

NUT M5

$

$

Not available

695000555

Husqvarna 695000555

ADAPTER
(Superseded to 531004451)

$

$

Not available

695000307

Husqvarna 695000307

PAN SCREW WP
(Superseded to 531004466)

$

$

Not available

695000547

Husqvarna 695000547

GASKET

$

$

Not available

695000546

Husqvarna 695000546

GASKET
(Superseded to 531004440)

$

$

Not available

695000553

Husqvarna 695000553

BODY
(Superseded to 531004449)

$

$

Not available

695000551

Husqvarna 695000551

INSULATOR

$

$

Not available

695000545

Husqvarna 695000545

GASKET

$

$

Not available

695000580

Husqvarna 695000580

SCREW-PAN
(Superseded to 531004465)

$

$

Not available

695000573

Husqvarna 695000573

SCREW
(Superseded to 695008100)

$1.99

$

In Stock, only 1 left!

0

695000543

Husqvarna 695000543

BRACKET
(Superseded to 531004437)

$

$

Not available

695000554

Husqvarna 695000554

ARM
(Superseded to 695008069)

$

$

Not available

695000579

Husqvarna 695000579

WASHER
(Superseded to 695008136)

$

$

Not available

695000576

Husqvarna 695000576

RING-SNAP
(Superseded to 695008114)

$

$

Not available

695000558

Husqvarna 695000558

PACKING
(Superseded to 531004454)

$

$

Not available

695000492

Husqvarna 695000492

FILTER
(Superseded to 531004443)

$

$

Not available

695000578

Husqvarna 695000578

SPRING
(Superseded to 531004463)

$

$

Not available

695000574

Husqvarna 695000574

SCREW
(Superseded to 695008101)

$

$

Not available

695000283

Husqvarna 695000283

FLOAT VALVE
(Superseded to 531004446)

$

$

Not available

695000507

Husqvarna 695000507

PIN
(Superseded to 695008117)

$2.49

$

In Stock, only 4 left!

0

695000544

Husqvarna 695000544

GASKET
(Superseded to 531004438)

$

$

Not available

695000556

Husqvarna 695000556

DIAPHRAGM
(Superseded to 695008080)

$

$

Not available

695000508

Husqvarna 695000508

RING-O
(Superseded to 695008120)

$

$

Not available

695000577

Husqvarna 695000577

JET-MAIN
(Superseded to 531004462)

$

$

Not available

695000542

Husqvarna 695000542

GASKET
(Superseded to 695008032)

$

$

Not available

695000557

Husqvarna 695000557

DIAPHRAGM
(Superseded to 695008081)

$10.99

$

In Stock, Qty 5

0

695000575

Husqvarna 695000575

SCREW
(Superseded to 695008102)

$

$

Not available

695000559

Husqvarna 695000559

PUMP, PRIMING
(Superseded to 695008085)

$

$

Not available

695000549

Husqvarna 695000549

COVER, PRIMER PUMP
(Superseded to 695008056)

$

$

Not available

695000550

Husqvarna 695000550

CARBURETOR ASS'Y

$

$

Not available
