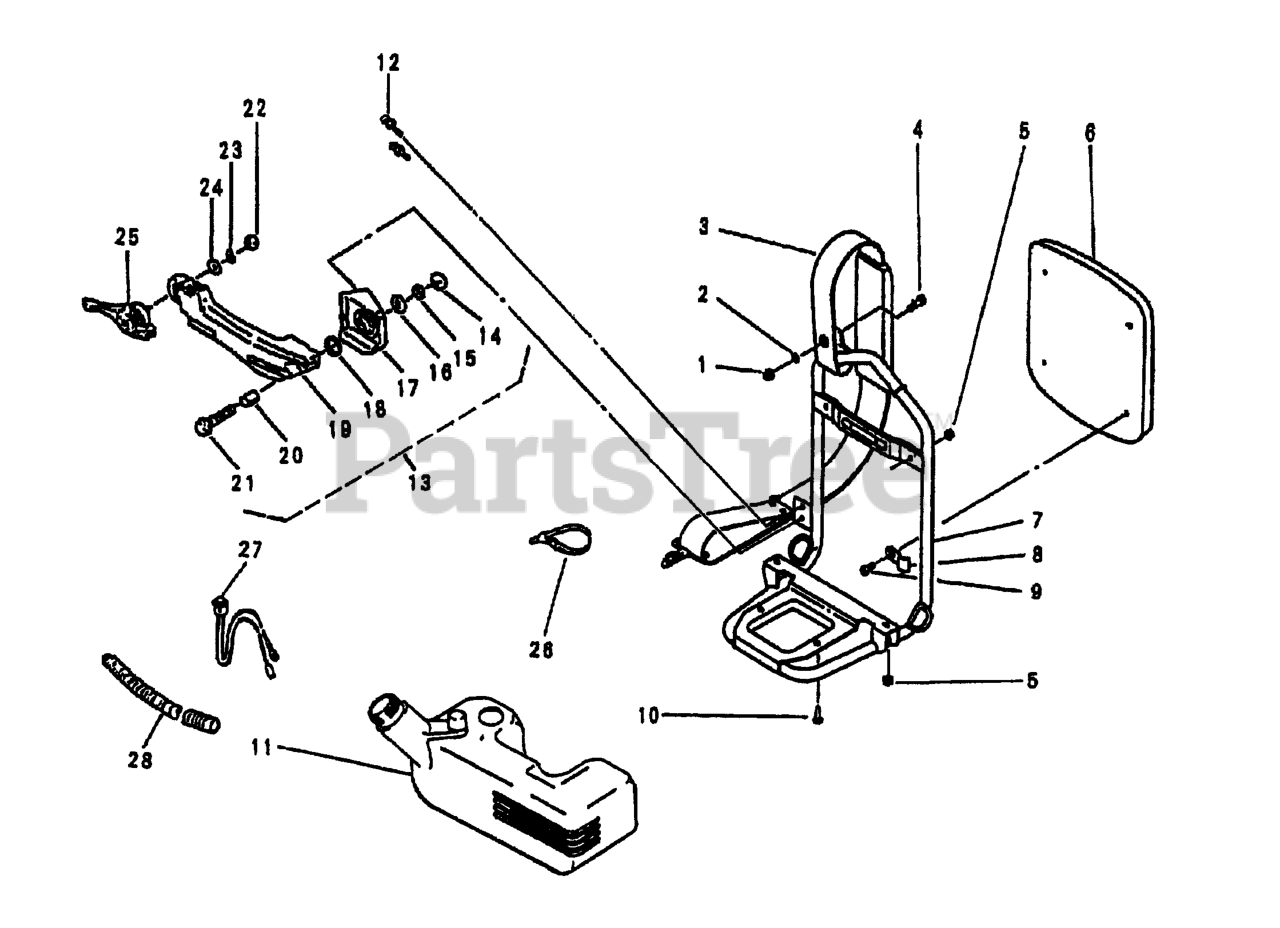

145 BF - Husqvarna Backpack Blower, CARB II (2001-04) Throttle Assy. & Backpack Frame & Fuel Tank Parts Diagram

Backpack Blower, CARB II

Throttle Assy. & Backpack Frame & Fuel Tank Parts Diagram

  • Title

1

Husqvarna 695000038

NUT
(Superseded to 531003205)

$

$

Not available

2

Husqvarna 695000045

WASHER
(Superseded to 531003379)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 695000763

Shoulder Band

$

$

Not available

4

Husqvarna 695000025

TRUSS SCREW

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 695000039

Flange Nut

$

$

Not available

6

Husqvarna 695000048

KNAPSACK PAD

$

$

Not available

7

Husqvarna 695000649

Backpack Frame

$

$

Not available

8

Husqvarna 695000003

PAD FITTING

$

$

Not available

9

Husqvarna 695000010

BOLT HEX

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 695000200

SCREW 6X10MM 374L0610
(Superseded to 531003220)

$

$

Not available

11

Husqvarna 695000572

Fuel Tank

$

$

Not available

12

Husqvarna 695000675

Screw (M5x12)

$

$

Not available

13

Husqvarna 695000404

LEVER C.P.

$

$

Not available

14

Husqvarna 695000216

HEXAG0N NUT 5MM

$

$

Not available

15

Husqvarna 695000212

SPRING LOCK WASHER 8MM 661L080

$

$

Not available

16

Husqvarna 695000213

PLAIN WASHER 8MM 612L0800

$

$

Not available

17

Husqvarna 695000206

STAY 11113-238

$

$

Not available

18

Husqvarna 695000209

O-RING 211B2100

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 695000207

STAY

$

$

Not available

20

Husqvarna 695000208

Spacer

$

$

Not available

21

Husqvarna 695000210

FLANGE BOLT 8X2.5MM

$

$

Not available

22

Husqvarna 695000216

HEXAG0N NUT 5MM

$

$

Not available

23

Husqvarna 695000217

SPRING LOCK WASHER 5MM

$

$

Not available

24

Husqvarna 695000218

PLAIN WASHER 5MM 613L0500

$

$

Not available

25

Husqvarna 695000215

THROTTLE LEVER

$

$

Not available

26

Husqvarna 695000043

WIRE BAND
(Superseded to 695000110)

$1.49

$

Usually ships in 3-10 days

0

27

Husqvarna 695000219

SWITCH STOP

$

$

Not available

28

Husqvarna 695000220

TUBE 41003-137

$4.99

$

Usually ships in 3-10 days

0
