145 BT - Husqvarna Backpack Blower, CARB II (2001-04) Blower Tubes Parts Diagram

Backpack Blower, CARB II

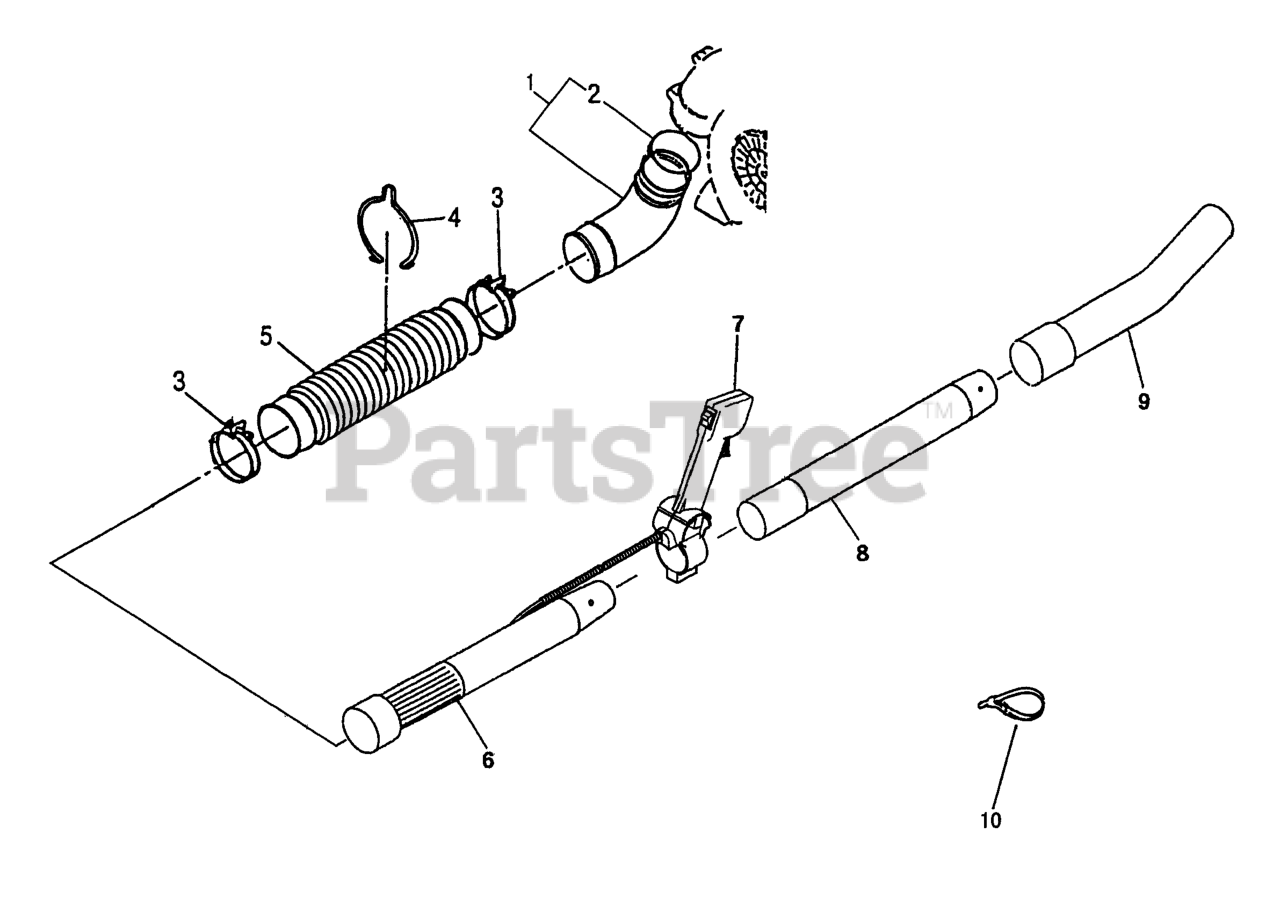

Blower Tubes Parts Diagram

  • Title

1

Husqvarna 695000402

ELBOW PIPE C.P.
(Superseded to 695000526)

$

$

Not available

2

Husqvarna 695000005

O'RING
(Superseded to 531003215)

$

$

Not available

3

Husqvarna 695000527

HOSE BAND
(Superseded to 531003212)

$

$

Not available

4

Husqvarna 695000421

CLAMP
(Superseded to 695008005)

$

$

Not available

5

Husqvarna 695000016

FLEX. PIPE 36084-101
(Superseded to 531003213)

$68.99

$

Usually ships in 3-10 days

0

6

Husqvarna 695000019

BASE PIPE
(Superseded to 531003211)

$

$

Not available

7

Husqvarna 695000632

THROTTLE ASSEMBLY
(Superseded to 531003391)

$

$

Not available

8

Husqvarna 695000020

MIDDLE PIPE
(Superseded to 531003216)

$

$

Not available

9

Husqvarna 695000021

BEND PIPE
(Superseded to 531003217)

$

$

Not available

10

Husqvarna 695000110

BAND FR66820XX006
(Superseded to 531003249)

$1.49

$

Usually ships in 3-10 days

0
