145 BT - Husqvarna Backpack Blower, CARB II (2001-04) Fan / Fan Housing & Backpack Frame & Fuel Tank Parts Diagram

Backpack Blower, CARB II

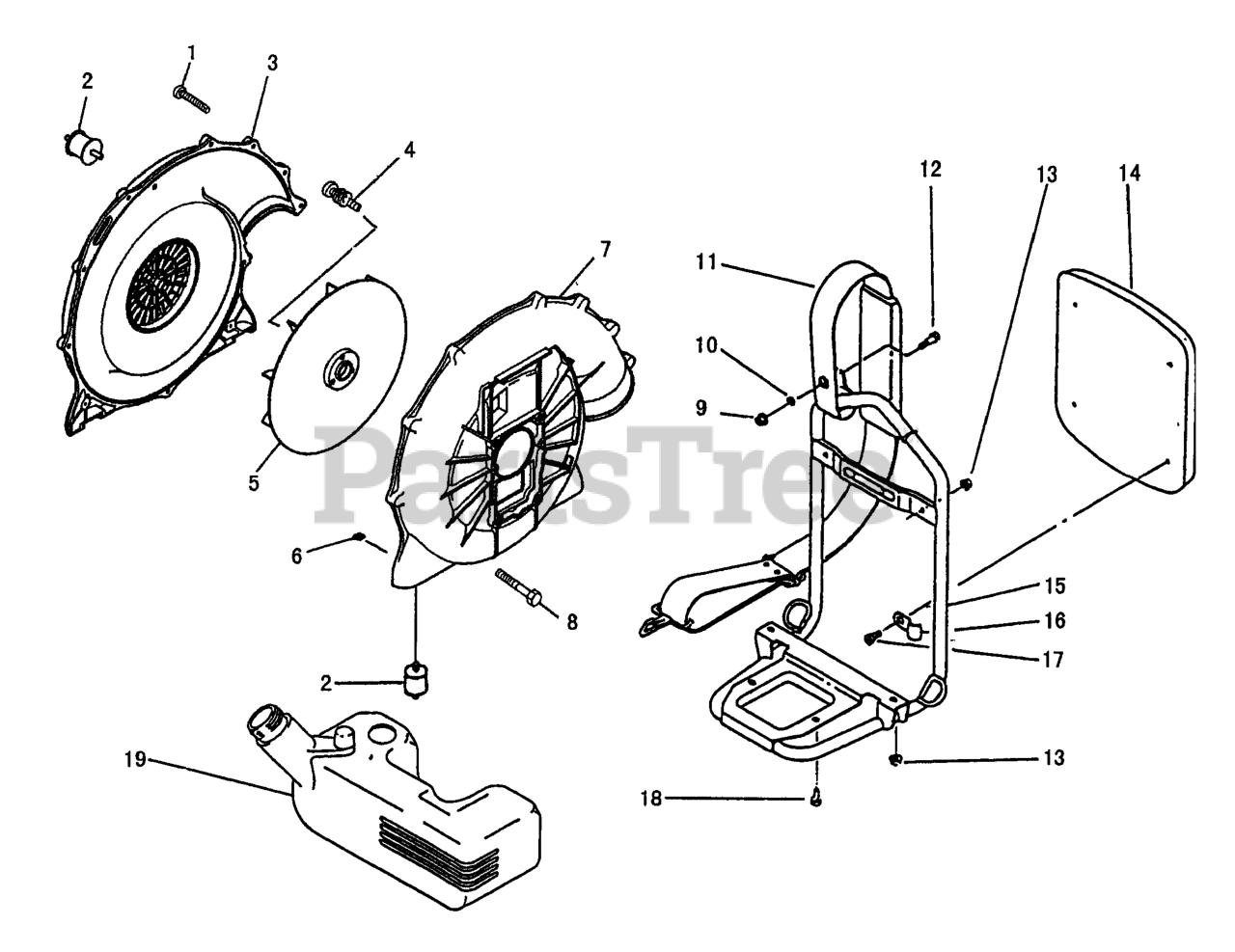

Fan / Fan Housing & Backpack Frame & Fuel Tank Parts Diagram

  • Title

1

Husqvarna 695000205

Tapping Screw (M5x30)

$

$

Not available

2

Husqvarna 695000188

VIBRATION DAMPER
(Superseded to 531003225)

$

$

Not available

3

Husqvarna 695000652

Fan Case

$

$

Not available

4

Husqvarna 695000637

BOLT
(Superseded to 531003679)

$

$

Not available

5

Husqvarna 695000036

FAN

$

$

Not available

6

Husqvarna 695000006

NUT
(Superseded to 531003247)

$

$

Not available

7

Husqvarna 695000653

FANCASE-REAR

$

$

Not available

8

Husqvarna 695000640

BOLT
(Superseded to 531003248)

$

$

Not available

9

Husqvarna 695000038

NUT
(Superseded to 531003205)

$

$

Not available

10

Husqvarna 695000045

WASHER
(Superseded to 531003379)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 695000763

Shoulder Band

$

$

Not available

12

Husqvarna 695000025

TRUSS SCREW

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 695000039

Flange Nut (M6)

$

$

Not available

14

Husqvarna 695000048

KNAPSACK PAD

$

$

Not available

15

Husqvarna 695000420

FRAME

$

$

Not available

16

Husqvarna 695000003

PAD FITTING

$

$

Not available

17

Husqvarna 695000010

BOLT HEX

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 695000200

SCREW 6X10MM 374L0610
(Superseded to 531003220)

$

$

Not available

19

Husqvarna 695000572

Fuel Tank

$

$

Not available
