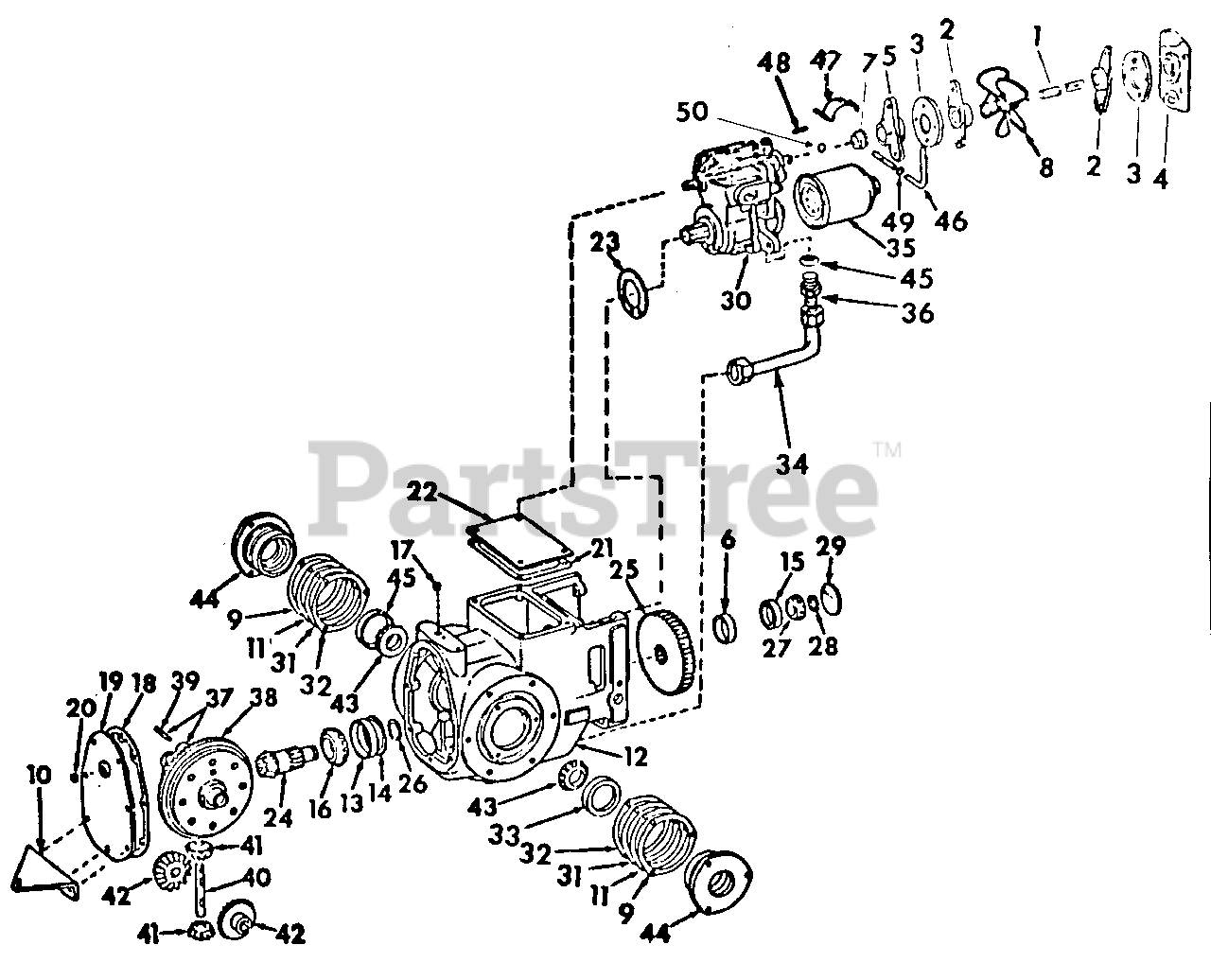

1450 (2050660U) - Cub Cadet Garden Tractor Transmission Case, Diff, Hydro Drive, & Rel Parts Parts Diagram

Garden Tractor

Transmission Case, Diff, Hydro Drive, & Rel Parts Parts Diagram

  • Title

1

Cub Cadet IH-140079-C1

Shaft, Drive

Note: (Replaces IH-61125-C4 on tractors w/Serial No. 622951 & below by also order

$

$

Not available

2

Cub Cadet 748-3001

Arm, Coupling

$

$

Not available

3

Cub Cadet 722-3000

Disc, Flexible Coupling

$30.99

$

In Stock, Qty 15

0

4

Cub Cadet 703-0204

Flange, Drive Shaft
(Superseded to 903-0204)

$43.99

$

In Stock, only 3 left!

0

Screw, 1/4-20 X 5/8 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Washer, 1/4 Reg Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

5

Cub Cadet 719-3027

Coupler, Drive Shaft
(Superseded to 919-3027)

$124.99

$

Usually ships in 3-6 days

0

6

Cub Cadet IH-530647-R1

Spacer, Pinion Shaft Gear

Note: (Not required for tractors w/internal wet brakes)

$

$

Currently unavailable

Washer, 1-11/32 X 2 X 11 Ga Flat

Note: (Common Hardware, Purchase Locally) (Not required for tractors w/internal wet brakes

$

$

Not available

7

Cub Cadet 741-3004

Bushing, Self Aligning Ball
(Superseded to 941-3004)

$54.99

$

In Stock, Qty 10

0

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0520

Bolt, 3/8 X 1-1/2 Type 5

$4.99

$

In Stock, only 3 left!

0

Cub Cadet 710-3097

Bolt, 3/8-16 X 1 Sq Nk Crg

$6.99

$

In Stock, Qty 5

0

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X 16 Ga Znd

$7.49

$

In Stock, Qty 12

0

Cub Cadet 712-3000

Nut, 3/8-16 Cdp Hex Lock

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 715-3000

Pin, 1/4 X 1-3/8 Hv Coiled Spring

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet IH-547749-R1

Fan, Cooling
(Superseded to IH-547749-R2)

$24.99

$

In Stock, only 2 left!

0

9

Cub Cadet 717-3097

Shim, Bearing Retainer, .004

Note: AR

$

$

Not available

10

Cub Cadet 703-0401

Drawbar, Fixed

$

$

Not available

Cub Cadet 710-3001

Screw, 3/8-16 X 1 Hex Hd Cap

$7.49

$

In Stock, Qty 5

0

11

Cub Cadet 717-3098

Shim, Bearing Retainer, .007

Note: AR

$

$

Not available

12

Cub Cadet IH-394081-R91

Case Assy, Transmission

Note: (Also order plug IH-379277-C1)

$

$

Currently unavailable

Cub Cadet IH-379277-C1

Plug, 1-3/8 Cup

$

$

Not available

13

Cub Cadet IH-394083-R91

Bearing, Bevel Pinion Shaft Rear Cup

$

$

Not available

14

Cub Cadet 717-3123

Shim, Rear Bearing Cup, .004

Note: AR

$

$

Not available

Cub Cadet 717-3124

Shim, Rear Bearing Cup, .015

Note: AR

$

$

Not available

Cub Cadet 717-3125

Shim, Rear Bearing Cup, .007

Note: AR

$

$

Not available

15

Cub Cadet 741-0372

Bearing, Bevel Pinion Shaft Front Cup
(Superseded to 741-04548)

$9.49

$

In Stock, only 2 left!

0

16

Cub Cadet IH-394083-R91

Bearing Assy, Bevel Pinion Shaft Rear Cone

$

$

Not available

17

Cub Cadet 727-3025

Plug, Breather

$

$

Currently unavailable

18

Cub Cadet IH-350837-R2

Gasket, Rear Cover Plate
(Superseded to IH-350837-R3)

$31.99

$

In Stock, only 1 left!

0

19

Cub Cadet IH-394089-R11

Plate Assy, Rear Cover

$

$

Currently unavailable

Cub Cadet 710-3001

Screw, 3/8-16 X 5/8 Hex Hd Cap

$7.49

$

In Stock, Qty 5

0

20

Cub Cadet 737-0177

Plug, 1/2-14 Auto Sq Soc Hd Drain

$

$

Not available

21

Cub Cadet IH-394091-R1

Gasket, Top Cover

$

$

Not available

22

Cub Cadet IH-394090-R1

Cover, Top

$

$

Currently unavailable

Screw, 3/8-16 X 3/4 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

23

Cub Cadet 721-3004

Gasket, Front
(Superseded to 921-3004)

$11.99

$

In Stock, only 4 left!

0

24

Cub Cadet IH-394093-R1

Shaft, Bevel Pinion

$

$

Currently unavailable

25

Cub Cadet 717-3141

Gear, Constant Mesh -66T

$

$

Not available

26

Cub Cadet IH-323315-C1

Ring, Gear Retainer

$

$

Not available

27

Cub Cadet 741-0373

Bearing Assy, Bevel Pinion Shaft Front Cone
(Superseded to 741-04549)

$20.99

$

In Stock, only 2 left!

0

28

Cub Cadet 717-3127

Ring, Pinion Shaft Front Brg Retainer, .125

Note: AR

$

$

Not available

Cub Cadet 717-3128

Ring, Pinion Shaft Front Brg Retainer, .119
(Superseded to 917-3128)

Note: AR

$

$

Not available

Cub Cadet 717-3129

Ring, Pinion Shaft Front Brg Retainer, .113

Note: AR

$

$

Not available

Cub Cadet 717-3130

Ring, Pinion Shaft Front Brg Retainer, .107

Note: AR

$

$

Not available

Cub Cadet IH-395099-R1

Ring, Pinion Shaft Front Brg Retainer, .101

Note: AR

$

$

Currently unavailable

Cub Cadet 717-3132

Ring, Pinion Shaft Front Brg Retainer, .131

Note: AR

$

$

Not available

29

Cub Cadet 726-0216

Plug, 2-1/8 Expansion

$

$

Not available

30

Cub Cadet 717-3033

Transmission Assy, Hydrostatic Drive

Note: (For components, see list of parts under details of hydrostatic transmissio

$

$

Currently unavailable

Bolt, 3/8 X 1-1/2 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

31

Cub Cadet 717-3099

Shim, Bearing Retainer, .0149

Note: AR

$39.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 717-3100

Shim, Bearing Retainer, .0299

Note: AR

$

$

Not available

33

Cub Cadet IH-ST974

Bearing, Cup

$

$

Not available

34

Cub Cadet 727-3008

Tube Assy, Transmission
(Superseded to 927-3008)

$

$

Not available

Cub Cadet IH-56446-D

Nut, 7/8-18 Hi-Duty Tube Fitting
(Superseded to 912-3028)

$47.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 723-3014

Filter Assy
(Superseded to 923-3014)

$21.99

$

In Stock, Qty 20+

0

36

Cub Cadet 727-3009

Union, 7/8-14 37 Deg Hyd Flared Tube Short Swivel

$

$

Not available

37

Cub Cadet IH-223472-C91

Case, Diff w/Drive Gear

$

$

Currently unavailable

38

Cub Cadet IH-350787-R1

Gear, Drive -46T

$

$

Not available

38

Cub Cadet IH-350787-R1

Gear, Drive -46T

$

$

Not available

NLA

Rivet, 5/16 X 1-1/8 Rd Hd

$

$

Not available

39

Cub Cadet IH-350788-R1

Pin, Pinion Shaft Lock

$

$

Not available

40

Cub Cadet IH-350789-R1

Shaft, Pinion

$

$

Currently unavailable

41

Cub Cadet 717-3113

Pinion, 10T

$

$

Not available

42

NLA

Gear, Side

$

$

Not available

43

Cub Cadet 741-0369

Bearing Assy, Cone

$

$

Not available

44

Cub Cadet IH-376158-R91

Cage Assy, Differential Bearing

$

$

Currently unavailable

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 1 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

45

Cub Cadet 721-3005

O-Ring, 3/4 X 15/16 X 3/32
(Superseded to 921-3005)

$

$

Not available

46

Cub Cadet IH-545727-R1

Handle, Dump Valve

$

$

Not available

47

Cub Cadet IH-545728-R1

Lever, Dump Valve

$

$

Currently unavailable

48

Cub Cadet 715-3008

Pin, 1/8 X 3/4 C-Z Hv Coiled Spring

$

$

Not available

49

Cub Cadet 735-3008

Grommet, Rubber

$

$

Not available

50

Cub Cadet 723-3022

Ball, 5/8 Cr Stl

Note: (Used only with shaft IH-61125-C4)

$6.99

$

In Stock, Qty 11

0
