14529 ES (1696030) - Murray 29" Snow Thrower, 14.5hp (2011) Auger Housing Group Parts Diagram

29" Snow Thrower, 14.5hp

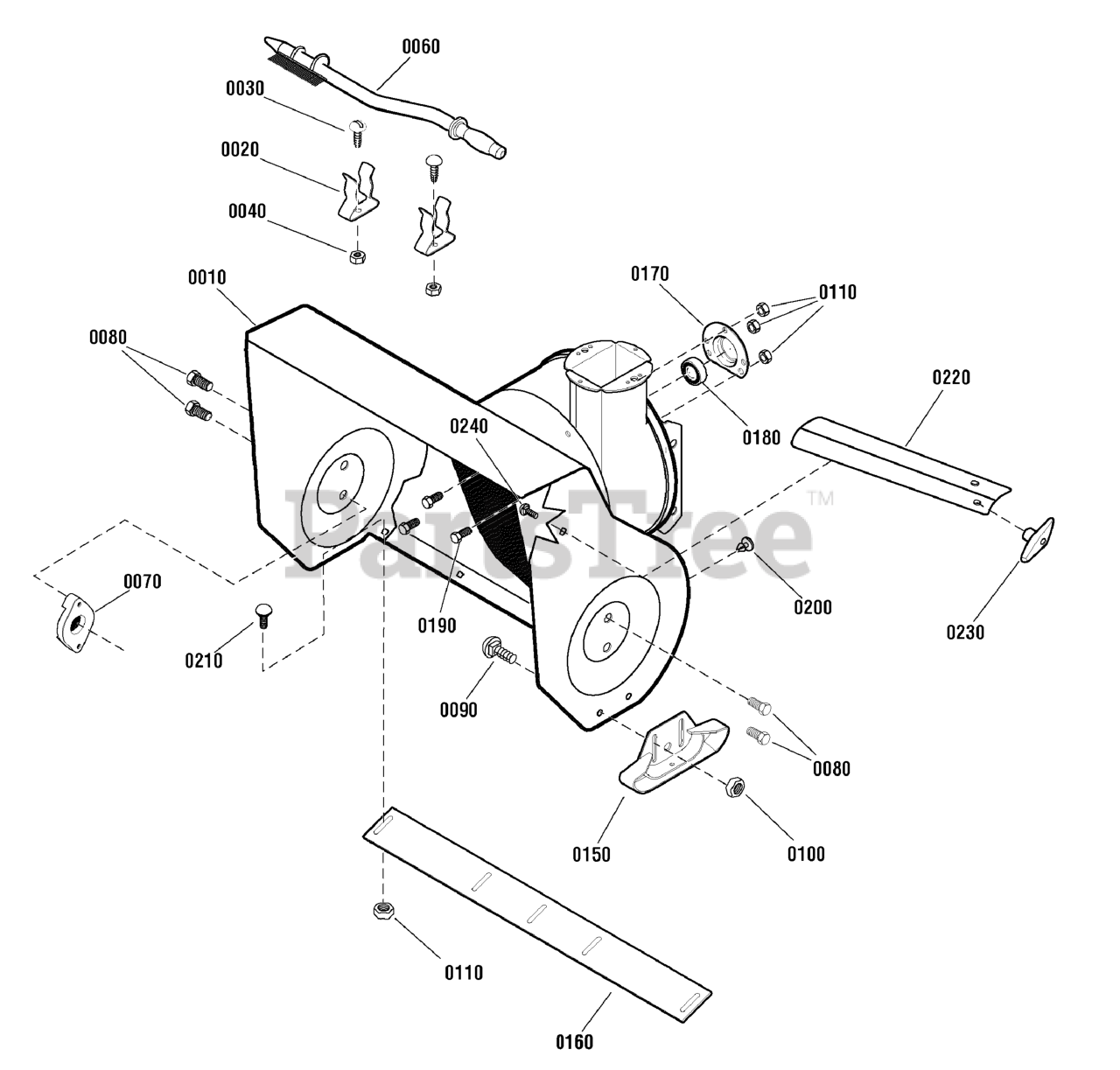

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1737925BIYP

HOUSING, Auger
(Superseded to 1687546YP)

$535.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP

$6.49

$

In Stock, only 1 left!

0

0030

Murray 1960569SM

SCREW
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 7091290SM

NUT, Hex Lock, Nylon, 3/8-16
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0060

Murray 1736094YP

BRUSH, Cleanout

$34.99

$

In Stock, only 2 left!

0

0070

Murray 53757MA

BEARING, Auger

$9.99

$

In Stock, only 2 left!

0

0080

Murray 25X021MA

SCREW, 5/16-18 x 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091547YP

BOLT, Carriage, Short Neck, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1737985AYP

SKID, Height Adjust

$

$

Not available

0160

Murray 1740746HMA

BLADE, Scraper
(Superseded to 1740746AYP)

$46.99

$

In Stock, only 1 left!

0

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

BOLT, HEX 5/16-18 x 0.62
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0200

Murray 760040MA

PLUG

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, Short Neck, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0220

Murray 1733102ASM

DRIFT CUTTER

$31.99

$

In Stock, only 4 left!

0

0230

Murray 340720MA

BOLT, 5/16-18 x 0.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 711604MA

NUT, Wing, Serrated, 5/16-18

$3.49

$

In Stock, Qty 12

0
