146-1458 - Exmark 2 Bag Collection System (SN: 416150475 - 417930745) (Rev B) (2024) Blower Assembly Parts Diagram

2 Bag Collection System

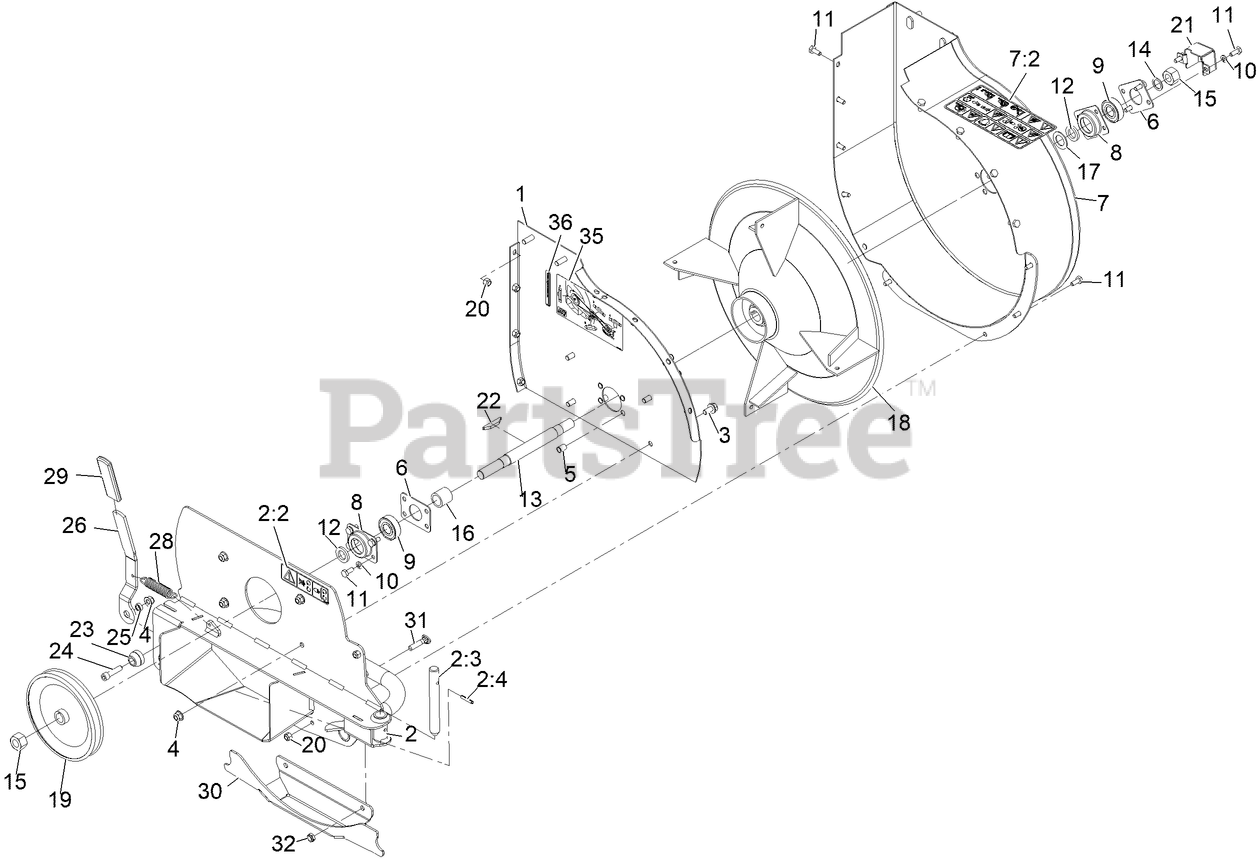

Blower Assembly Parts Diagram

  • Title

1

Exmark 133-8665-03

MOUNTING PLATE ASM

$291.99

$

Usually ships in 3-6 days

0

2

Exmark 163-4038

BLOWER PIVOT ASM

$533.99

$

Usually ships in 0 days

0

2:2

Exmark 112-9028

DECAL-COVER, MISSING

$23.99

$

Usually ships in 3-6 days

0

2:3

Exmark 146-4187

PIN-BLOWER PIVOT

$27.99

$

Usually ships in 0 days

0

2:4

Exmark 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

3

Exmark 3234-14

SCREW-HHF

$2.49

$

In Stock, Qty 9

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

5

Exmark 32117-2

NUT-CLINCH

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 63-9700-03

PLATE-COVER

$22.99

$

In Stock, only 2 left!

0

7

Exmark 136-0578

BLOWER HOUSING OUTER ASM

$383.99

$

Usually ships in 3-6 days

0

7:2

Exmark 136-4087

DECAL-WARNING

$32.99

$

Usually ships in 3-6 days

0

8

Exmark 37-6730

CUP-BEARING

$18.99

$

In Stock, only 3 left!

0

9

Exmark 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

10

Exmark 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 63-9710

SPACER-BEARING

$14.99

$

In Stock, only 1 left!

0

13

Exmark 105-5893

SHAFT-BLOWER

$153.99

$

Usually ships in 3-6 days

0

14

Exmark 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 14

0

15

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

16

Exmark 7989

SPACER

$15.99

$

In Stock, only 2 left!

0

17

Exmark 1535

WASHER-THRUST

$11.99

$

In Stock, only 2 left!

0

18

Exmark 56-4780-03

IMPELLER ASM

$1166.99

$

Usually ships in 3-6 days

0

19

Exmark 92-0874

PULLEY-TRANSAXLE

$102.99

$

Usually ships in 3-6 days

0

20

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Exmark 106-3076-03

COVER-SHAFT

$46.99

$

Usually ships in 3-6 days

0

22

Exmark 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

23

Exmark 136-4135

PIN-GUIDE

$19.99

$

Usually ships in 3-6 days

0

24

Exmark 3274-18

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

25

Exmark 99-2018

SPACER-ARM, IDLER

$17.99

$

Usually ships in 3-6 days

0

26

Exmark 136-4116

HANDLE

$39.99

$

Usually ships in 3-6 days

0

28

Exmark 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.99

$

In Stock, only 4 left!

0

29

Exmark 47-1970

GRIP

$17.99

$

Usually ships in 3-6 days

0

30

Exmark 136-4097-03

PLATE-SKID

$70.99

$

Usually ships in 3-6 days

0

31

Exmark 92-4095

SCREW-HANDLE

$6.99

$

In Stock, only 2 left!

0

32

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

35

Exmark 146-4438

DECAL-BLOWER BELT ROUTING

$16.99

$

Usually ships in 0 days

0

36

Exmark 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
