146-1792 - Exmark 30 Gallon Spray System (SN: 413950474 - 416150474) (Rev A) (2023) Spray System Assembly Parts Diagram

30 Gallon Spray System

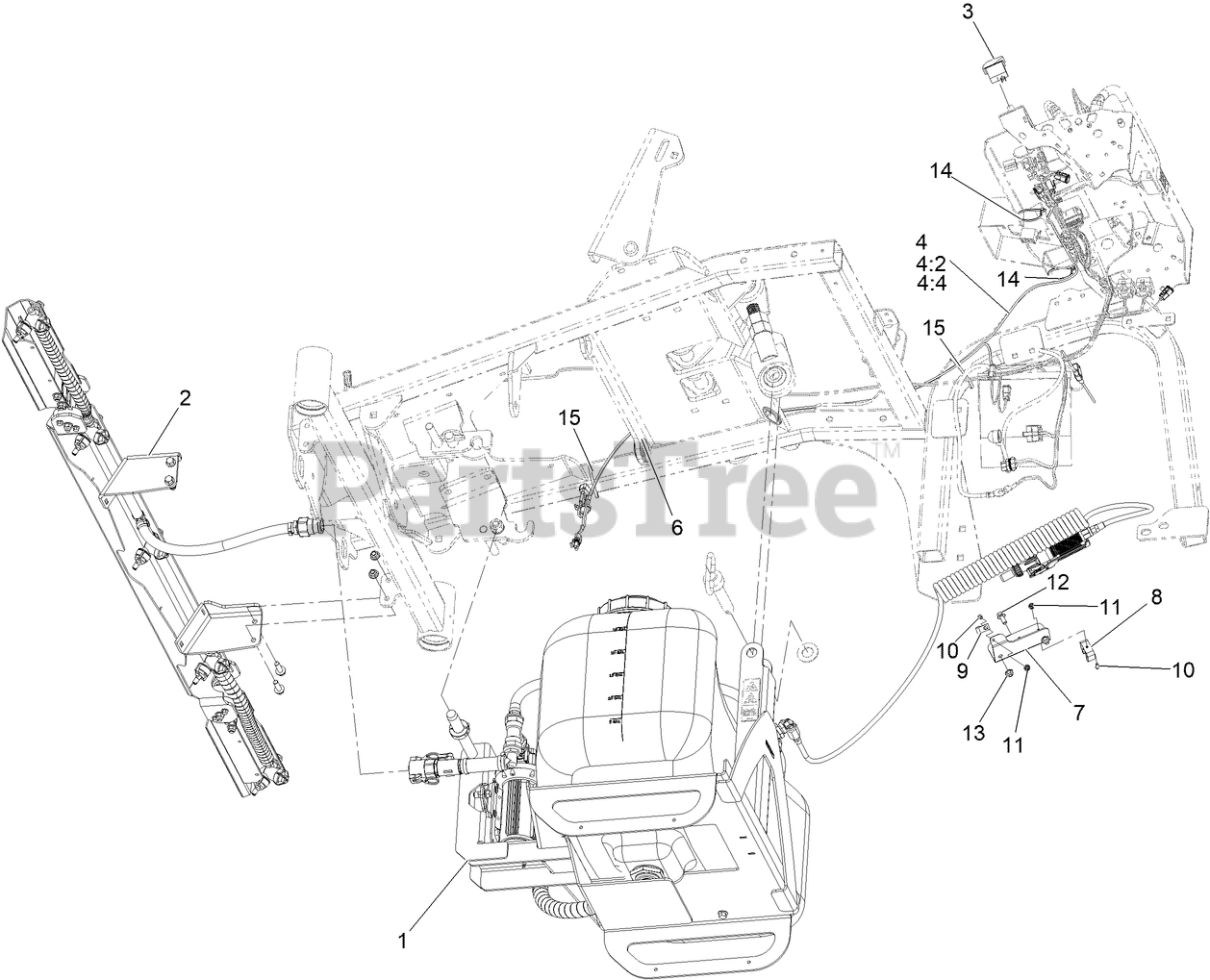

Spray System Assembly Parts Diagram

  • Title

1

Exmark 142-8283

Tank-ISO 30 Gal

$

$

Currently unavailable

2

Exmark 142-8285

BOOM-SPRAY 96 IN.

$1427.99

$

Usually ships in 0 days

0

3

Exmark 100-8469

SWITCH-ROCKER

$28.99

$

In Stock, only 2 left!

0

4

Exmark 142-8555

Harness-Accessory

$

$

Currently unavailable

4:2

Exmark 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 8

0

4:4

Exmark 100-4918

DIODE

$23.99

$

In Stock, Qty 11

0

6

Exmark 137-1812

GROMMET

$4.99

$

Usually ships in 0 days

0

7

Exmark 147-6674-03

BRACKET-HOLDER, SPRAY WAND

$35.99

$

Usually ships in 0 days

0

8

Exmark 135-5661

Holder-Tool, Clip

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 2412-89

CLAMP-R

$2.99

$

In Stock, only 2 left!

0

10

Exmark 135-6374

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

11

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, only 4 left!

0

12

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, only 4 left!

0

13

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

14

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

15

Exmark 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
