146-3085 - Exmark 2 Bag Collection System (SN: 416150475 - 417930745) (Rev A) (2024) Twin Bag Assembly Parts Diagram

2 Bag Collection System

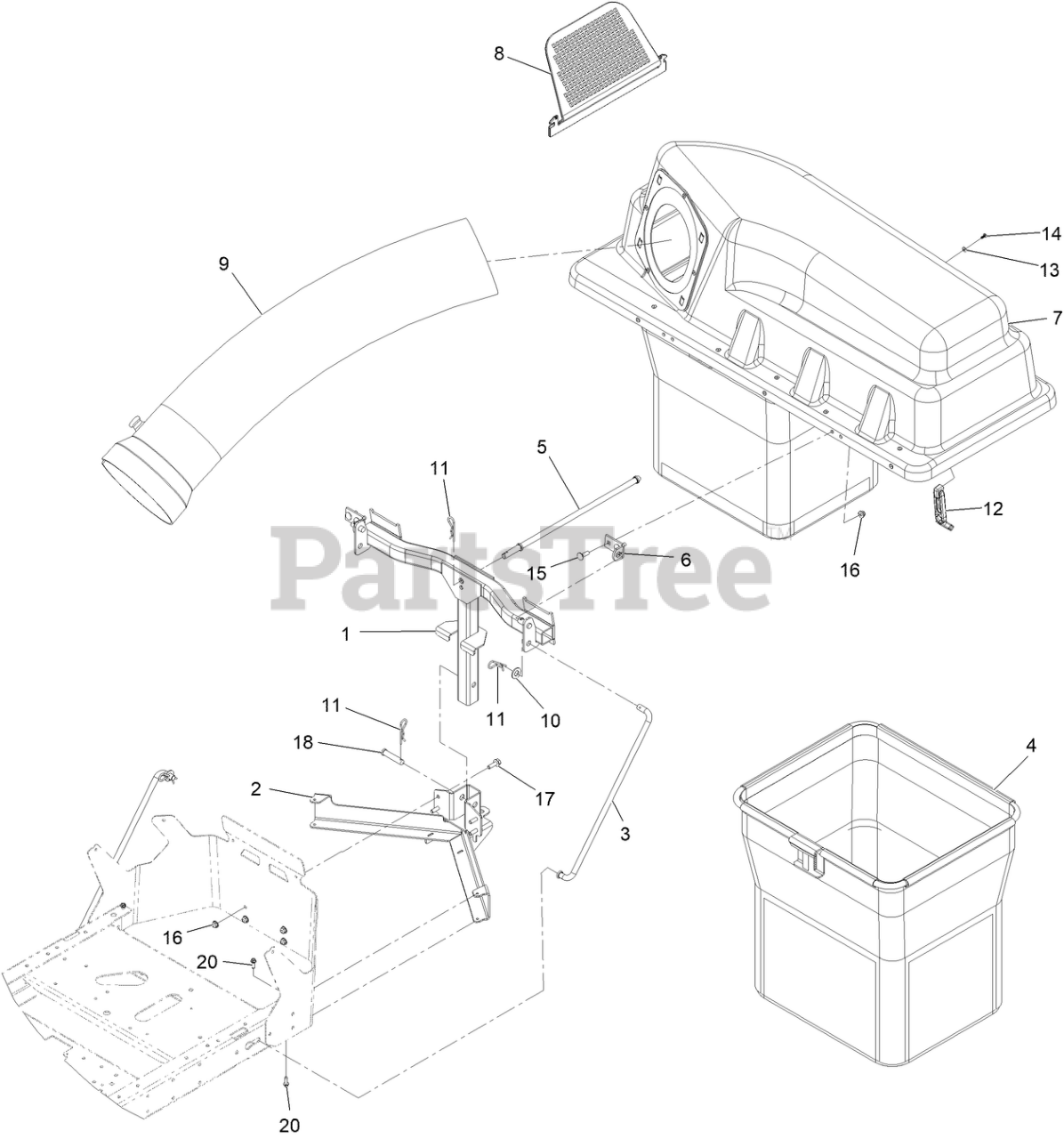

Twin Bag Assembly Parts Diagram

  • Title

1

Exmark 147-7733-03

FRAME ASM PIVOT

$373.99

$

Usually ships in 0 days

0

2

Exmark 147-7735-03

MOUNT-LOWER, BAGGER

$91.99

$

Usually ships in 0 days

0

3

Exmark 147-3044

ROD-SUPPORT, CZ

$36.99

$

Usually ships in 0 days

0

4

Exmark 147-2888

BAG ASM

$116.99

$

Usually ships in 3-6 days

0

5

Exmark 131-4189

ROD-HOOD, DOWN (HOLD)

$26.99

$

In Stock, only 2 left!

0

6

Exmark 140-5016

BRACKET-HOPPER PIVOT

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 140-5096

Top ASM-Bagger

$284.99

$

Usually ships in 3-6 days

0

8

Exmark 112-3993

SCREEN-BAGGER

$34.99

$

In Stock, only 2 left!

0

9

Exmark 112-3995

TUBE-BAGGER

$231.99

$

Usually ships in 3-6 days

0

10

Exmark 139-2611

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 139-2562

PIN-HAIR

$1.49

$

In Stock, Qty 9

0

12

Exmark 116-4992

LATCH-RUBBER

$54.99

$

In Stock, only 1 left!

0

13

Exmark 137-3073

Washer-Plain

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 132-6919

SCREW-PLASTIC, PTH

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 110-3144

Bolt-CARR

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Exmark 139-2596

SCREW-HHF

$1.49

$

In Stock, only 2 left!

0

18

Exmark 92-2739

PIN-CLEVIS

$11.99

$

In Stock, only 2 left!

0

20

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0
