146-3266 - Exmark Ultravac 2 Bag Collection System (SN: 417930746 & Above) (Rev A) (2025) 146-3266 Assembly Parts Diagram

Ultravac 2 Bag Collection System

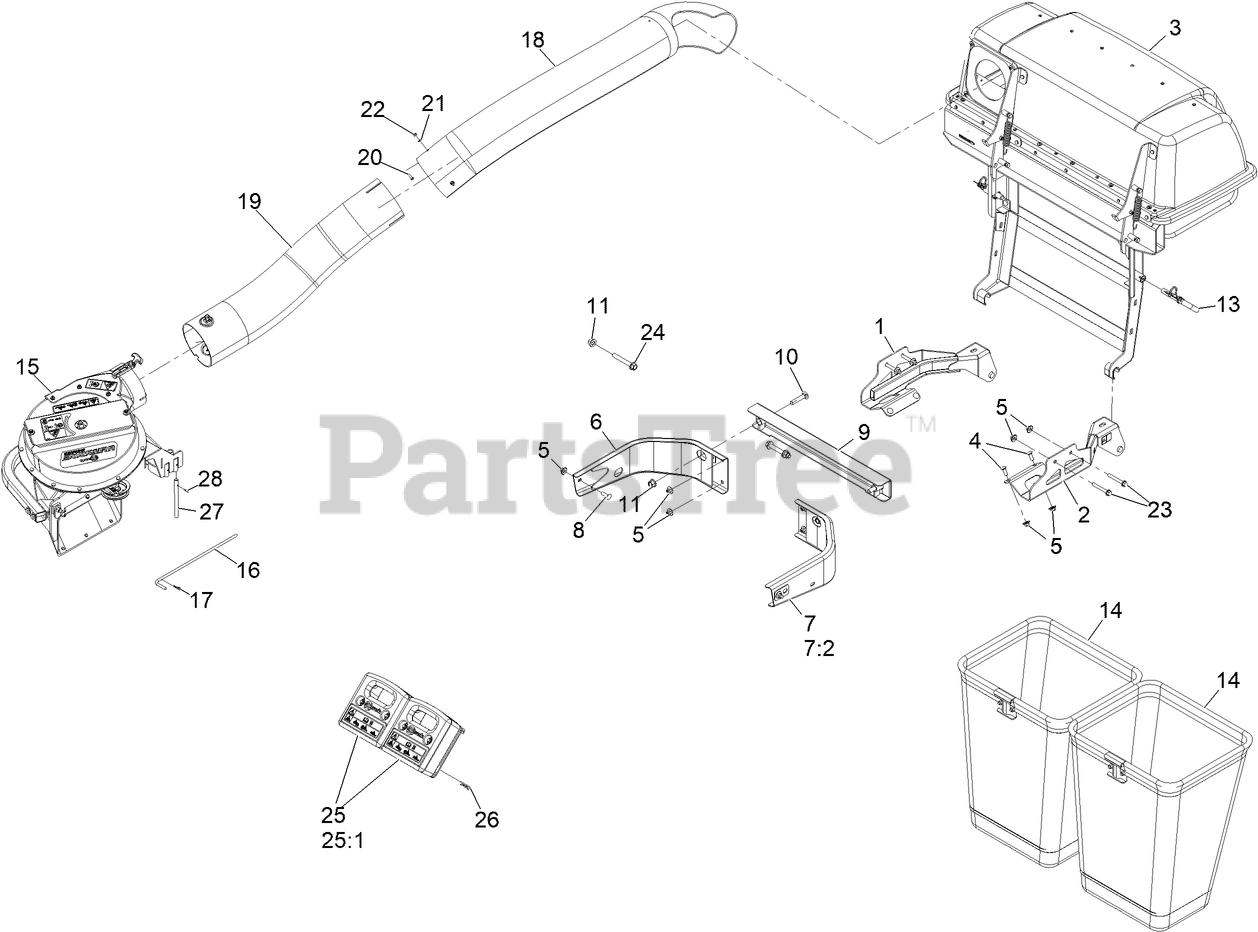

146-3266 Assembly Parts Diagram

  • Title

1

Exmark 146-3688

ASM, BAGGER MOUNT W/ DECAL, RT

$268.99

$

Usually ships in 3-6 days

0

2

Exmark 146-3689

ASM, BAGGER MOUNT W/ DECAL, LT

$275.99

$

Usually ships in 3-6 days

0

3

Exmark 109-5941

Asm, Hood & Frame

$

$

Currently unavailable

4

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 116-0057-03

BUMPER-RH

$247.99

$

Usually ships in 3-6 days

0

7

Exmark 116-0180

LH BUMPER ASM

$167.99

$

Usually ships in 3-6 days

0

7:2

Exmark 106-5517

DECAL-WARNING

$5.99

$

In Stock, only 2 left!

0

8

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

9

Exmark 116-0473-03

MOUNT-BAGGER, UPPER

$267.99

$

Usually ships in 3-6 days

0

10

Exmark 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 5

0

11

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

13

Exmark 116-0458

PIN-MOUNT, BAGGER

$17.99

$

In Stock, Qty 10

0

14

Exmark 161-6779

Bag And Frame ASM

$214.99

$

Usually ships in 3-6 days

0

15

Exmark 146-2474

ASM, UV BLOWER

$2473.99

$

Usually ships in 3-6 days

0

16

Exmark 109-3458

PIN,CHUTE PIVOT

$19.99

$

Usually ships in 3-6 days

0

17

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

18

Exmark 109-2036

TUBE-UPPER

$322.99

$

Usually ships in 3-6 days

0

19

Exmark 146-4047

ASM-TUBE, LOWER

$381.99

$

Usually ships in 3-6 days

0

20

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

21

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Exmark 133-9682

SCREW-HFH

$1.99

$

Usually ships in 3-6 days

0

24

Exmark 126-3900

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

25

Exmark 103-6363

ASM,CAST WEIGHT

$425.99

$

Usually ships in 3-6 days

0

25:1

Exmark 126-4661

DECAL-WARNING WEIGHT

$6.99

$

In Stock, only 2 left!

0

26

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

27

Exmark 1-353050

SHAFT-CATCHER, GRASS

$19.99

$

In Stock, only 1 left!

0

28

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0
