146-999-401 - Yard-Man Garden Tractor (1996) Engine And Pulley System Parts Diagram

Garden Tractor

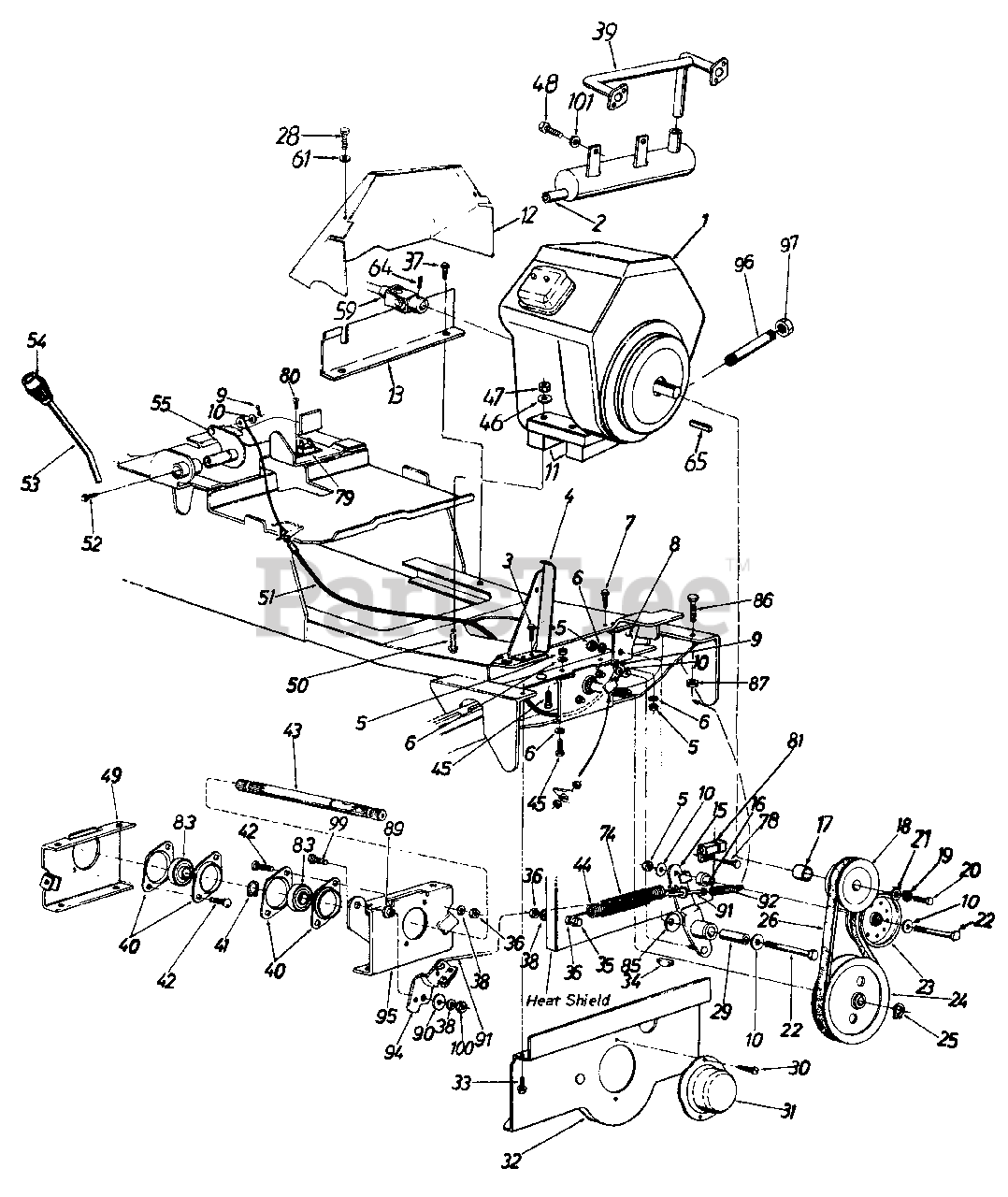

Engine And Pulley System Parts Diagram

  • Title

1

Engine (Kohler)

$

$

Not available

2

MTD 751-0611

Muffler

$

$

Not available

3

MTD 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 13590

Belt Guard

Variations

MTD 13590-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

6

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

7

MTD 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

8

MTD 13554

PTO Support Brkt.

Variations

MTD 13554-0637

No Longer Available BRACKET-PT - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 714-0101

Hairpin Cotter 1/2" Dia.

$4.49

$

In Stock, only 4 left!

0

10

MTD 736-0133

Fl-Wash .38" I.D. x 1.25" O.D. x .100" Thk.

$4.99

$

In Stock, Qty 7

0

11

MTD 783-0279

Engine Mounting Spacer

$

$

Not available

12

MTD 783-0282

Heat Shield

$

$

Not available

13

MTD 783-0111

Heat Baffle - Lower

$

$

Not available

15

MTD 13550

PTO Idler Arm Ass'y.

Variations

MTD 13550-0637

PTO Idler Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 711-0598

Idler Adapter

$

$

Not available

17

MTD 750-0782

Pulley Spacer

$

$

Not available

18

MTD 756-0601

Engine PTO - Pulley

$

$

Not available

19

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

20

MTD 710-3001

Hex Bolt 3/8-16 x 1" Lg.

$6.99

$

In Stock, Qty 13

0

21

MTD 736-0320

Fl-Wash. 3/8" I.D. x 1.37" O.D.

$6.49

$

In Stock, Qty 10

0

22

MTD 710-0937

Hex Bolt 3/8-16 x 2.50" Lg.
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

23

MTD 711-0306

Flat Idler Pulley

$107.99

$

Usually ships in 3-6 days

0

MTD 756-0309

1/2" V-Pulley 7.00" O.D. (PTO)

$

$

Not available

24

UNKNOWN

$

$

Not available

25

MTD 716-0127

Snap Ring

$11.99

$

Usually ships in 3-6 days

0

26

MTD 754-0234

"V"-Belt (PTO)
(Superseded to 954-0234)

$52.99

$

In Stock, only 1 left!

0

28

MTD 710-3209

Hex Bolt M6-1.0 x 10 MM Lg.

$7.99

$

In Stock, Qty 13

0

29

MTD 750-0374

Spacer .375" I.O. x .62" O.D. x 1.830" Lg.

$

$

Not available

30

MTD 710-0224

Hex "B" Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.49

$

In Stock, only 2 left!

0

31

MTD 13546

PTO Cup

Variations

MTD 13546-0637

PTO Cup - POWDER BLACK (0637)

$

$

Not available

MTD 13546-0648

No Longer Available CUP-PTO - TECH GRAY (0648)

$

$

Not available

$

$

32

MTD 13542

PTO Belt Guard Ass'y.

Variations

MTD 13542-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 710-1260

Hex Wash. TT-Tap Scr. 5/16-18 x .75
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

34

MTD 714-0154

#91 Hi-Pro Key

$

$

Not available

35

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0607

Hex Wash. Hd. Tap Scr. 5/16-18 x .5" Lg.

$6.49

$

In Stock, Qty 20+

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

MTD 751-0612

Exhaust Pipe

$

$

Not available

40

MTD 741-0242

1.00" Dia. Brg w/Flangette

$10.99

$

Usually ships in 3-6 days

0

41

MTD 716-0127

Snap Ring

$11.99

$

Usually ships in 3-6 days

0

42

MTD 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

43

MTD 738-0395

Spline Shaft

$225.99

$

Usually ships in 3-6 days

0

44

MTD 732-0262

Extension Spring (PTO Clutch)
(Superseded to 932-0262)

$20.99

$

Usually ships in 3-6 days

0

45

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

46

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

47

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

48

MTD 710-0505

Hex Bolt 7/16-14 x 1" Lg.

$6.49

$

Usually ships in 3-6 days

0

49

MTD 13553

PTO Bearing Retainer Brkt.

$

$

Not available

50

MTD 710-0756

Hex Bolt 3/8-16 x 2.25" Lg

$

$

Not available

51

MTD 746-0341

PTO Control Cable
(Superseded to 946-0341)

$99.99

$

In Stock, only 4 left!

0

52

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

53

MTD 747-0211

PTO Handle

$

$

Not available

54

MTD 720-0218

Shift Knob

$18.99

$

In Stock, only 2 left!

0

55

MTD 13587

PTO Actuator Lever Ass'y.

$

$

Not available

59

MTD 647-0012

Universal Drive Shaft Comp.

$

$

Not available

61

MTD 736-0142

Fl-Wash .281" I.D x .5" O.D.

$4.49

$

Usually ships in 3-6 days

0

64

MTD 710-0666

Set Scr. 5/16-18 x 38" Lg

$

$

Not available

65

MTD 714-0114

Sq. Key 1/4" x 2" Lg.
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

74

MTD 731-0466

Spring Cover Tubing (PTO Clutch)

$

$

Not available

78

MTD 710-0289

Hex Bolt 1/4-20 x 1/2" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

79

MTD 725-1382

Circuit Breaker

$

$

Not available

80

MTD 710-0351

Truss Mach Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 4 left!

0

81

MTD 725-1657A

Safety Switch (PTO)
(Superseded to 925-1657A)

Note: New Part

$22.99

$

In Stock, Qty 14

0

83

MTD 741-0303

Ball Bearing

$106.99

$

In Stock, only 2 left!

0

85

MTD 736-0331

Bell-Wash. 39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

86

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.49

$

In Stock, only 4 left!

0

87

MTD 712-3000

Hex L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

89

MTD 736-0289

Shoulder Spacer
(Superseded to 936-0289)

$6.49

$

In Stock, only 1 left!

0

90

MTD 736-0362

Fl-Wash .33" I.D. x 1.25" O.D

$4.49

$

In Stock, Qty 20+

0

91

MTD 747-0874

PTO Brake Rod

$

$

Not available

92

MTD 732-0339

Extension Spring 2.15" Lg
(Superseded to 932-0339)

$

$

Not available

94

MTD 17116

Brake Ass'y.
(Superseded to 97116)

$48.99

$

In Stock, only 2 left!

0

95

MTD 683-0013

PTO Brg. Retainer Brkt. Ass'y

$

$

Not available

96

MTD 737-0164

Pipe Nipple 3/8" x 5" Lg.
(Superseded to 937-0164)

$

$

Not available

97

MTD 737-0143

Oil Drain Cap

$

$

Not available

99

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 16

0

100

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

101

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0
