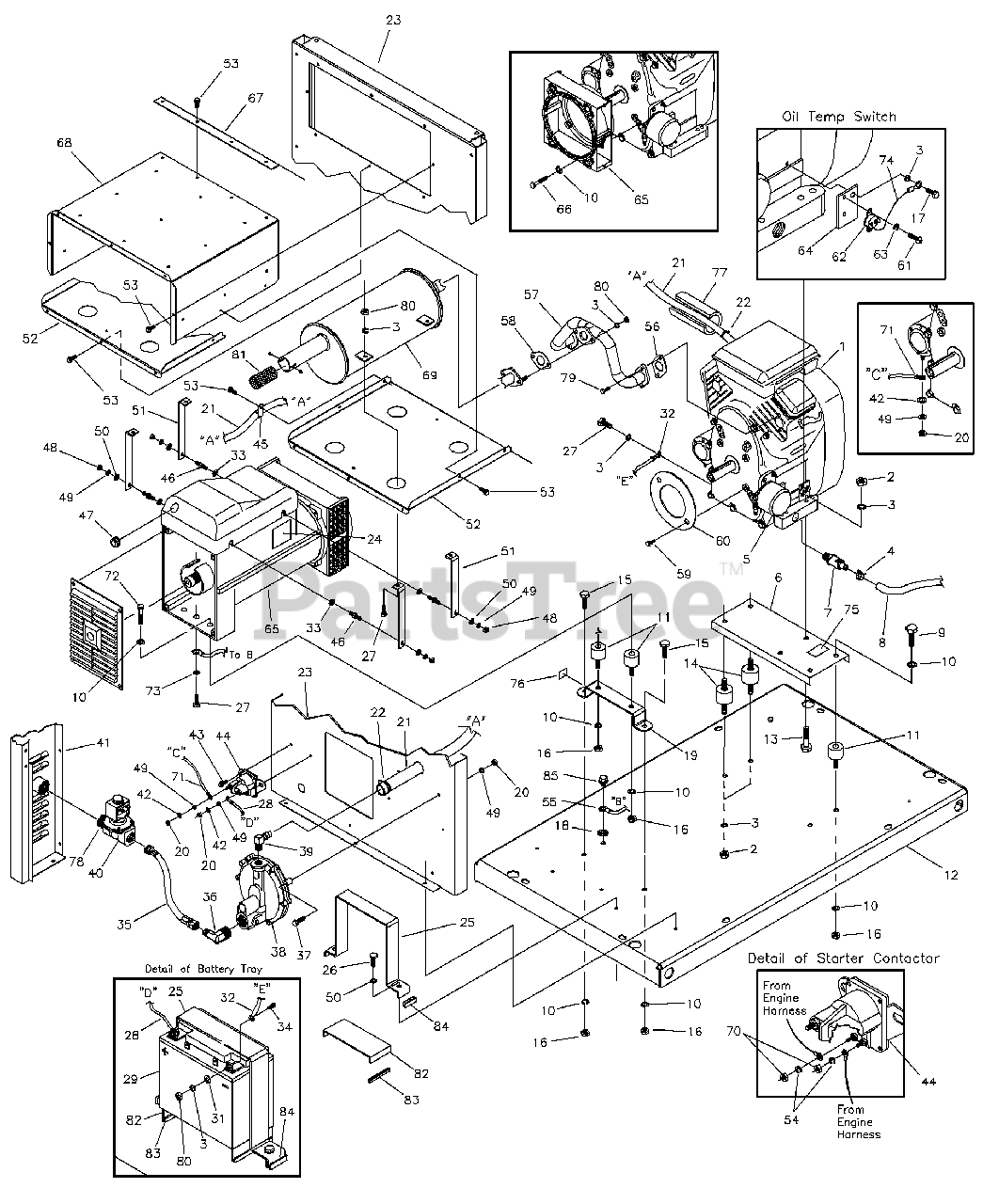

1461-0 - Generac 10kW Home Standby Generator Main Unit Parts Diagram

10kW Home Standby Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE, B&S, 18 HP

$

$

Currently unavailable

2

Briggs & Stratton 22259

NUT, 5/16" - 18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

LOCKWASHER, 5/16" - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 48031J

CLIP, Hoseband
(Superseded to 48031JGS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92134

FILTER, Oil
(Superseded to 7092134YP)

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton H186285

PAN, Engine Mounting
(Superseded to H186285GS)

$97.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 186071

VALVE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 186430

HOSE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 25017

HHCS, 3/8" - 16 x 1/2"
(Superseded to 25017GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22237

LOCKWASHER, 3/8"

$

$

Not available

11

Briggs & Stratton 38353

MOUNTS, Vibration
(Superseded to 38353GS)

$39.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton H185972

BASE, Mount
(Superseded to H185972GS)

$566.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22531

HHCS, 5/16" - 18 x 1-3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92609

MOUNTS, Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 29745

HHCS, 3/8" - 16 x 1"
(Superseded to 29745GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22241

NUT, 3/8" - 16

$

$

Not available

17

Briggs & Stratton 51754

HHCS, M8 - 1.25 x 12
(Superseded to 51754GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 187032

WASHER, 3/8 Ext., Shakeproof
(Superseded to 187032GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton H185957

SUPPORT, Alt.
(Superseded to H185957GS)

$170.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22127

NUT, 1/4" - 20

$

$

Not available

21

Briggs & Stratton 186152

HOSE, Gas Regulator to Engine
(Superseded to 186152GS)

$74.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 57822

CLAMP, Hose

$

$

Not available

23

Briggs & Stratton H185966

BULKHEAD, Alternator Side
(Superseded to H185966GS)

$154.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186647

DECAL, Outdoor Use Only

$

$

Currently unavailable

25

Briggs & Stratton H188446A

RETAINER, Battery Hold Down

$

$

Currently unavailable

26

Briggs & Stratton 92079

TAPTITE, M6 - 1.0 x 25
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 42907

HHCS, M8 1.25 x 16
(Superseded to 42907GS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 188574

CABLE, Battery Positive

$

$

Currently unavailable

29

Briggs & Stratton 188443

BATTERY, 33AH
(Superseded to 188443GS)

$229.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22145

WASHER, Flat 5/16 - M8

$

$

Not available

32

Briggs & Stratton 188573

CABLE, Battery Negative

$

$

Currently unavailable

33

Briggs & Stratton 186070

WASHER, Fiber .26 x .62 x .06
(Superseded to 186070GS)

$4.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 39253

HHCS, M8 x 20
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 186148

HOSE, Gas - regulator
(Superseded to 186148GS)

$76.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 186151

ELBOW, Brass, 3/4" NPT x 1/2" Gas
(Superseded to 186151GS)

$19.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22413

HHCS, 1/4" - 20 x 1"

$

$

Currently unavailable

38

Briggs & Stratton B4774

REGULATOR, Gas Fuel
(Superseded to 316866GS)

$289.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 186150

ELBOW, Brass 3/8 NPT
(Superseded to 186150GS)

$19.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4773

SOLENOID, Gas Fuel
(Superseded to 194683GS)

$386.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton H185961

CORNER, Alt. Air Inlet, Left
(Superseded to 191409GS)

$201.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 26850

WASHER, Ext. M6-1/4" Shakeproof

$

$

Not available

43

B4300

BOLT SWAG, 1/4 - 20

$

$

Not available

44

Briggs & Stratton B4769

CONTACTOR, Starter
(Superseded to B4769GS)

$29.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 186375

CLAMP, Hose
(Superseded to 207912GS)

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 185955

STUD, Muffler Mount
(Superseded to 185955GS)

$5.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 187049

PLUG, Dome
(Superseded to 187049GS)

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 49813

NUT, M6 - 1.0
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 22097

LOCKWASHER, M6 - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

50

22473

FLAT WASHER, M6 - 1/4"

$

$

Not available

51

Briggs & Stratton H186125

BRACKET, Muffler
(Superseded to H186125GS)

$41.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton H186030

BASE, Muffler Box
(Superseded to H186030GS)

$131.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 56893

CRIMPTITE, 10 - 24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 22264

LOCKWASHER, M4 #8

$

$

Not available

55

Briggs & Stratton 186790B

WIRE, Ground
(Superseded to 186790BGS)

$17.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 67897

MANIFOLD, Gasket
(Superseded to 691613)

$5.49

$

In Stock, Qty 20+

0

57

Briggs & Stratton 185900

MANIFOLD, Exhaust
(Superseded to 205626GS)

$223.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 186062

GASKET, Manifold, Muffler
(Superseded to 186062GS)

$7.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 86307

HHCS, 5/16" x 3/4" SEMS
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton B4260

DISK, Air Blocker
(Superseded to B4260GS)

$48.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 186242

PPHMS, #4 - 40 x .019"

$

$

Not available

62

Briggs & Stratton 186205

SWITCH, Thermodisk Oil Temp.
(Superseded to 186205GS)

$107.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 27772

LOCKWASHER, #4 Int.Tooth

$

$

Not available

64

Briggs & Stratton 186206

PLATE, Oil Temp Switch
(Superseded to 186206GS)

$6.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton B4268

ALTERNATOR, Sincro
(Superseded to B4268GS)

$2472.99

$

Usually ships in 2-12 days

0

66

22511

HHCS, 3/8 - 16 x 1-1/4"

$

$

Not available

67

Briggs & Stratton H186320

DEFLECTOR, 45° Muffler Box
(Superseded to H186320GS)

$55.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton H186038

BOX, Muffler
(Superseded to H186038GS)

$224.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 185894

MUFFLER, with Brackets
(Superseded to 205626GS)

$223.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 22471

NUT, #8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 185939C

CABLE, Starter
(Superseded to 185939CGS)

$

$

Not available

72

Briggs & Stratton 23152

HHCS, 3/8" - 16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 27482

WASHER, 5/16" Ext. Shakeproof
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 186790C

WIRE, Ground
(Superseded to 186790CGS)

$17.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 186649

DECAL, Oil Drain

$

$

Currently unavailable

76

Briggs & Stratton B4986

DECAL, Ground, Green
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

77

Briggs & Stratton 186551

INSULATION, Fuel Hose
(Superseded to 186551GS)

$13.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 26915

NIPPLE, 3/4" NPT

$

$

Not available

79

Briggs & Stratton 69397

BOLT, Manifold

$

$

Currently unavailable

80

Briggs & Stratton 45771

NUT, M8 - 1.25

$

$

Not available

81

Briggs & Stratton 187277

SCREEN, Spark Arrester w/screws

$

$

Currently unavailable

82

Briggs & Stratton H188444

TRAY, Battery Support

$

$

Currently unavailable

83

Briggs & Stratton 188445A

RUBBER STRIP, 85mm

$

$

Currently unavailable

84

Briggs & Stratton 188445B

RUBBER STRIP, 32mm

$

$

Currently unavailable

85
