1461-0 - Generac 10kW Home Standby Generator Transfer Switch Parts Diagram

10kW Home Standby Generator

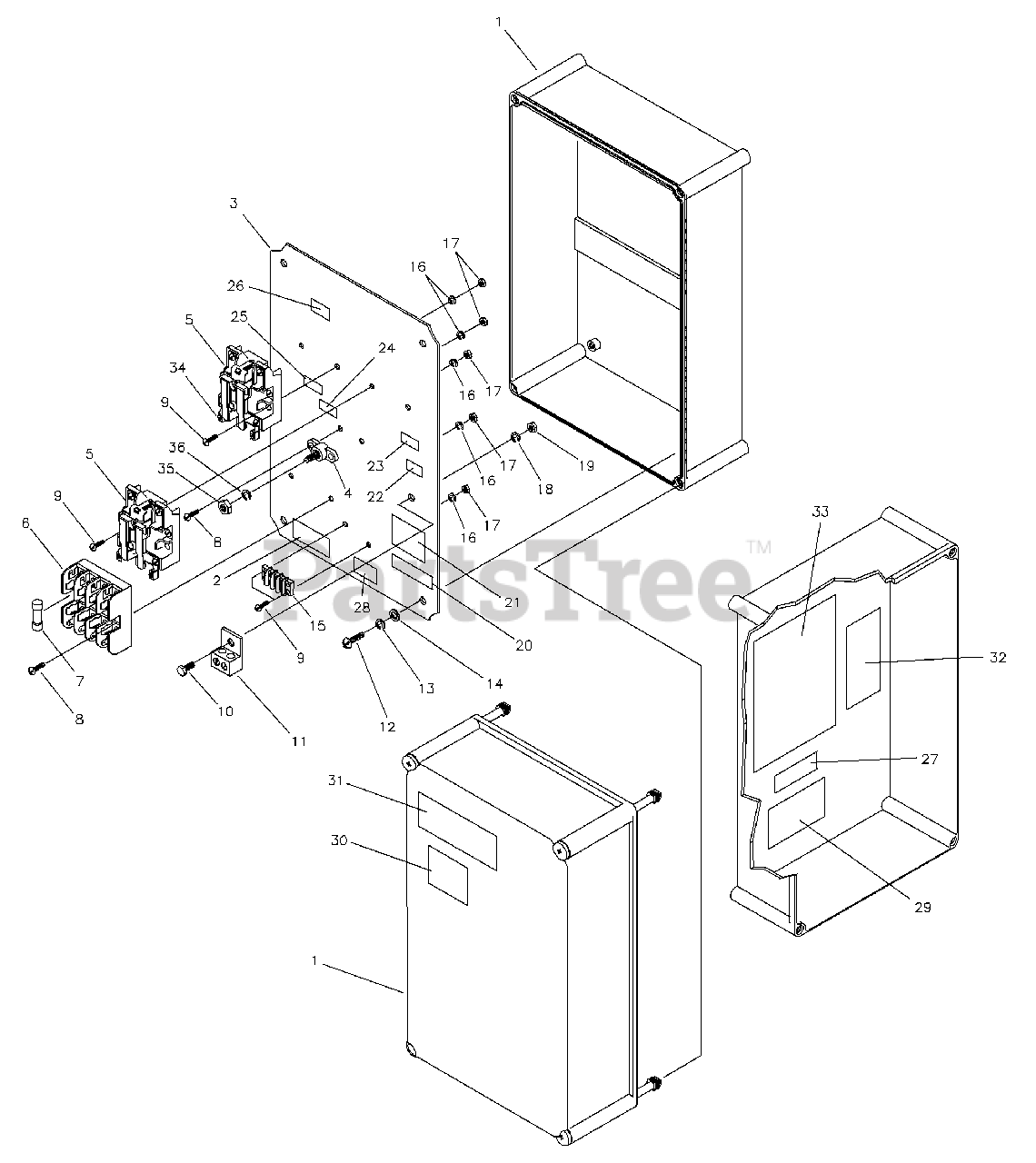

Transfer Switch Parts Diagram

  • Title

1

Briggs & Stratton B4852

BOX, Plastic
(Superseded to B4852GS)

$80.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B5079

DECAL, Utility Load
(Superseded to B5079GS)

$26.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4852

INSERT, Box
(Superseded to B4852GS)

$80.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 57073

NEUTRAL BLOCK
(Superseded to 57073GS)

$47.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 185890

RELAY, 900 Series
(Superseded to 185890GS)

$228.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B4858

FUSE HOLDER, 30 Amp
(Superseded to B4858GS)

$51.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4857

FUSE, 2 Amp, 600 Volt
(Superseded to 205110GS)

$31.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 75475

SCREW, M4 x 10

$

$

Not available

9

Briggs & Stratton 75476

SCREW, M4 x 16
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 43116

SCREW, M6 x 12
(Superseded to 43116GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4856

CONNECTION LUG, Ground

$

$

Currently unavailable

12

Briggs & Stratton 91526

SCREW, M5 x 12

$

$

Not available

13

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23897

FLAT WASHER, #10
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B5052

TERMINAL STRIP
(Superseded to B5052GS)

$8.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22264

LOCK WASHER, #8

$

$

Not available

17

Briggs & Stratton 51715

NUT, M4
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

LOCK WASHER, 1/4
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 49813

NUT, M6
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B5084

DECAL, UL Type
(Superseded to B5084GS)

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B5083

DECAL, UL Listed

$

$

Currently unavailable

22

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton B5107

DECAL, Generator Connection
(Superseded to B5107GS)

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B5081

DECAL, Neutral
(Superseded to B5081GS)

$11.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B5106

DECAL, Utility Connection
(Superseded to B5106GS)

$5.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B5105

DECAL, Load Connection
(Superseded to B5105GS)

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B5087

DECAL, Intended Use
(Superseded to B5087GS)

$11.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B5080

DECAL, Terminal Strip
(Superseded to B5080GS)

$29.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 186021

DECAL, Identification
(Superseded to 186021GS)

$11.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B5086

DECAL, Warning, Live Circuit

$

$

Currently unavailable

31

Briggs & Stratton B5082

DECAL, Danger High Voltage

$

$

Currently unavailable

32

Briggs & Stratton B5085

DECAL, Warning Shock
(Superseded to B5085GS)

$11.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B5088

DECAL, Auto Sequence
(Superseded to B5088GS)

$11.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B4854

TERMINAL, 14-6 Awg
(Superseded to 706901)

$10.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22241

NUT, 3/8"-16

$

$

Not available

36

Briggs & Stratton 22237

LOCK WASHER, 3/8"

$

$

Not available
