1461-2 - Generac 10kW Home Backup Generator Control Panel Parts Diagram

10kW Home Backup Generator

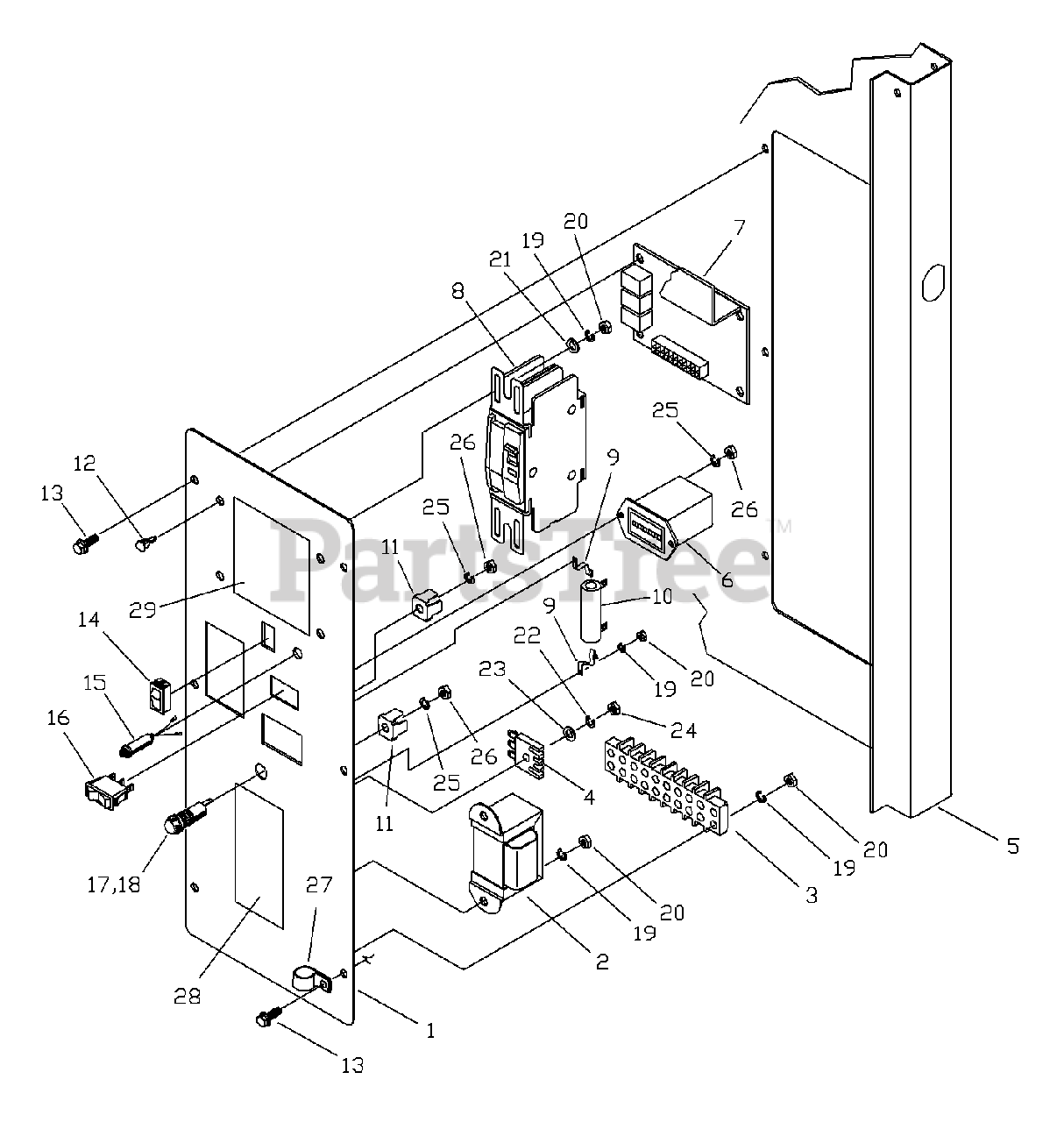

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 187225GS

CONTROL PANEL, with Silk Screen

$

$

Currently unavailable

2

Briggs & Stratton B4776GS

TRANSFORMER

$58.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4799GS

STRIP,Terminal

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

5

Briggs & Stratton H185967GS

BULKHEAD, Engine Side

$341.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 77604GS

HOUR METER

$112.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B5111GS

CONTROL BOARD

$525.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 186280GS

CIRCUIT BREAKER, 50 Amp, Model 1461

$242.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 186280BGS

CIRCUIT BREAKER, 40 Amp, Model 1535

$242.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4893GS

BRACKET, Resistor

$

$

Not available

10

Briggs & Stratton B4867GS

RESISTOR, 25W, .5 OHM

$91.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 57345GS

NEUTRAL, 4 Prong

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186413GS

STANDOFF, Control Board

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B4300GS

BOLT, Swage, 1/4-20
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 87799GS

SWITCH, Set Exercise

$7.49

$

In Stock, Qty 15

0

15

Briggs & Stratton B5133GS

DIODE, Light

$16.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 186443GS

SWITCH,Auto/Off/Manual

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 32300GS

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

18

Briggs & Stratton 22676GS

FUSE, 15 Amp AGC

$6.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 22264GS

LOCKWASHER, M4

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 51715GS

NUT, M4 - 0.7

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22985GS

FLATWASHER, M4

$1.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 49226GS

LOCKWASHER, M5

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 23897GS

FLATWASHER, M5

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 51716GS

NUT, M5 - 0.8

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 43182GS

LOCKWASHER, M3

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 51714GS

NUT, M3 - 0.5

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 187060GS

CLAMP, Cable 3/4" I.D.
(Superseded to 192940GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186645GS

DECAL, Caution Electrical Shock
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 186648GS

DECAL, Control Panel Fault Description
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0
