1461-2 - Generac 10kW Home Backup Generator Insulation Set Parts Diagram

10kW Home Backup Generator

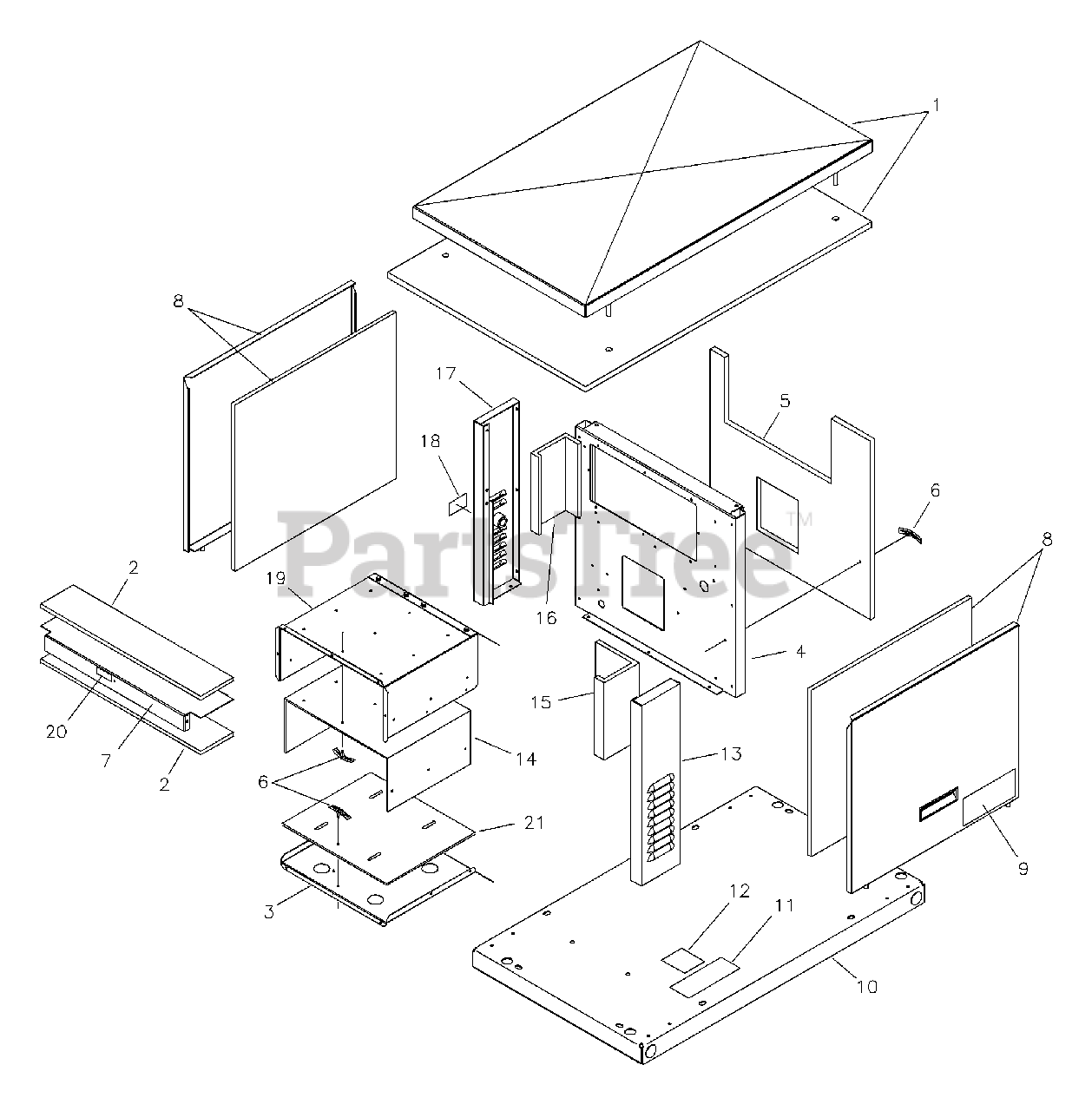

Insulation Set Parts Diagram

  • Title

1

Briggs & Stratton H187234GS

ROOF, with Insulation

$387.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 186188GS

INSULATION, Baffle Alt. Side

$55.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton H186030GS

BASE, Muffler Box

$131.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton H185966GS

BULKHEAD,Alternator Side

$154.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 186186GS

INSULATION, Bulk Head Alt.. End

$111.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B4772GS

CLIPS, Dart

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton H185968GS

BAFFLE, Horizontal,Alt. Side

$178.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton H187232GS

DOOR, with Insulation
(Superseded to 191406GS)

$111.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 189144GS

DECAL, Unit
(Superseded to 189467GS)

$22.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton H185972GS

BASE, Mounting

$566.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 186641GS

DECAL, Operation Instructions
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 186646GS

DECAL,Warning Engine Can Start
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton H185962GS

CORNER,Alt.Air Inlet Right
(Superseded to 191408GS)

$224.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 186351GS

INSULATION, Muffler Box

$20.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 186189GS

INSULATION, Corner, Right Side

$32.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 186190GS

INSULATION, Corner, Left Side

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton H185961GS

CORNER,Alt.Air Inlet, Left
(Superseded to 191409GS)

$201.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 186643GS

DECAL, Fuel Inlet
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton H186038GS

BOX, Muffler

$224.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 186352GS

INSULATION, Muffler Base

$13.99

$

Usually ships in 2-12 days

0
