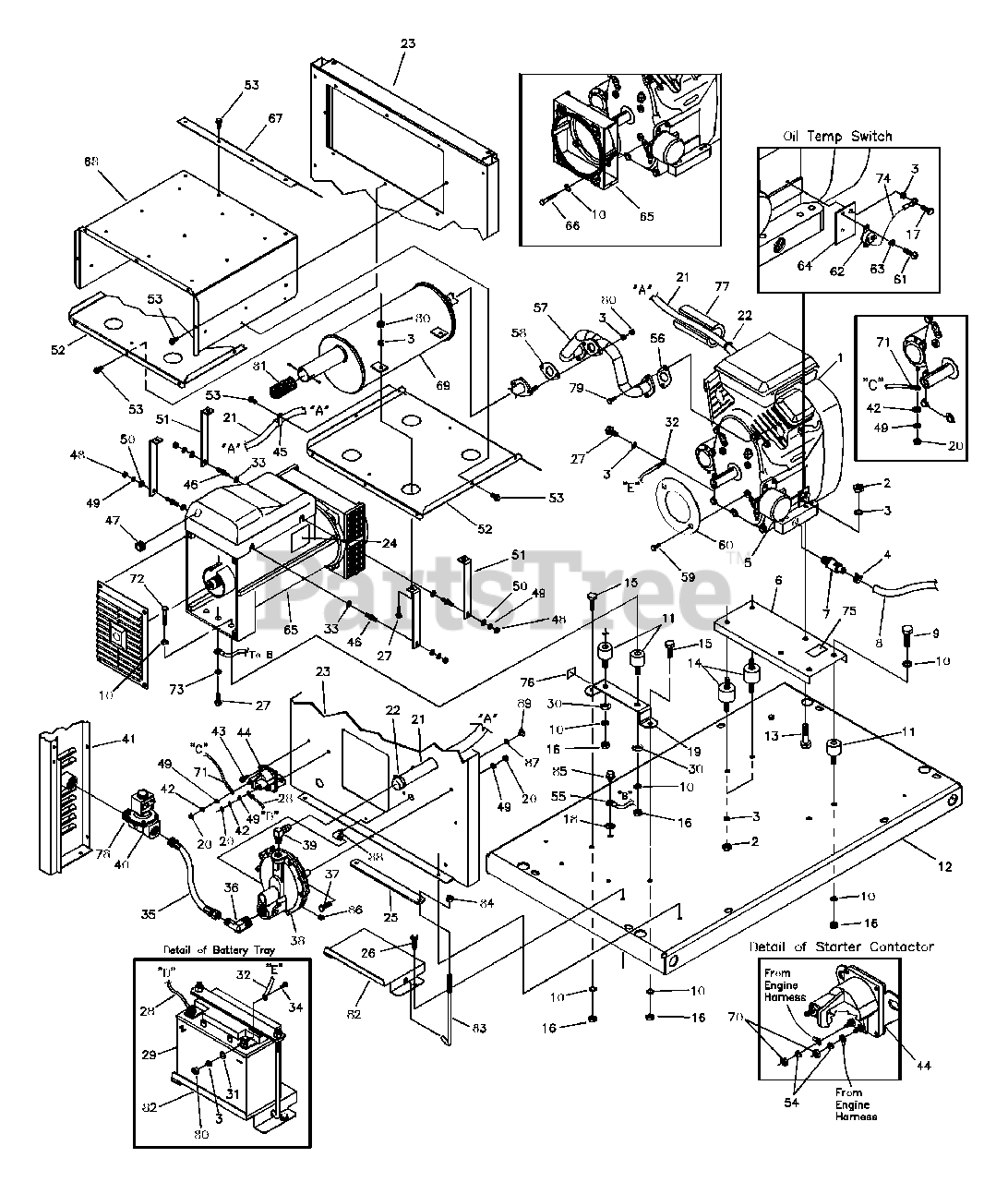

1461-2 - Generac 10kW Home Backup Generator Main Unit Parts Diagram

10kW Home Backup Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton ~NSP

ENGINE, B&S, 18 HP

$

$

Currently unavailable

2

Briggs & Stratton 22259GS

NUT, 5/16" - 18

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129GS

LOCKWASHER, 5/16" - M8

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 48031JGS

CLIP, Hoseband

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92134GS

FILTER, Oil

$

$

Currently unavailable

6

Briggs & Stratton H186285GS

PAN, Engine Mounting

$97.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 186071GS

VALVE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 186430GS

HOSE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 25017GS

HHCS, 3/8" - 16 x 1/2"

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22237GS

LOCKWASHER, 3/8"

$2.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 38353GS

MOUNTS,Vibration

$39.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton H185972GS

BASE, Mount

$566.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22531GS

HHCS, 5/16" - 18 x 1-3/4"
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 92609GS

MOUNTS,Vibration

$38.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 29745GS

HHCS, 3/8" - 16 x 1"

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22241GS

NUT, 3/8" - 16

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 51754GS

HHCS, M8 - 1.25 x 12

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 187032GS

WASHER, 3/8 Ext., Shakeproof

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton H185957GS

SUPPORT,Alt.

$170.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22127GS

NUT, 1/4" - 20

$1.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 186152GS

HOSE, Gas Regulator to Engine

$74.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 57822GS

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton H185966GS

BULKHEAD,Alternator Side

$154.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186647GS

DECAL, Outdoor Use Only
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton H189952GS

STRAP, Battery Hold Down

$34.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B4300GS

SWAGE BOLT, 1/4" - 20 x 1/2"
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 42907GS

HHCS, M8 1.25 x 16

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 188574GS

CABLE, Battery Positive

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 188443GS

BATTERY, 33AH

$229.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 22131GS

WASHER, Flat 3/8"

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22145GS

WASHER, Flat 5/16 - M8

$2.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 188573GS

CABLE, Battery Negative

$20.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 186070GS

WASHER, Fiber .26 x .62 x .06

$4.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 39253GS

HHCS, M8 x 20

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 186148GS

HOSE, Gas - regulator

$76.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 186151GS

ELBOW, Brass, 3/4" NPT x 1/2" Gas

$19.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22413GS

HHCS, 1/4" - 20 x 1"

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B4774GS

REGULATOR, Gas Fuel

$

$

Not available

39

Briggs & Stratton 186150GS

ELBOW, Brass 3/8 NPT

$19.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4773GS

SOLENOID, Gas Fuel
(Superseded to 194683GS)

$386.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton H185961GS

CORNER,Alt.Air Inlet, Left
(Superseded to 191409GS)

$201.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 26850GS

WASHER, Ext. M6-1/4" Shakeproof

$2.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton B4300GS

BOLT SWAG, 1/4 - 20
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton B4769GS

CONTACTOR, Starter

$29.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 186375GS

CLAMP, Hose
(Superseded to 207912GS)

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 185955GS

STUD, Muffler Mount

$5.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 187049GS

PLUG, Dome

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 49813GS

NUT, M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 22097GS

LOCKWASHER, M6 - 1/4"

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 22473GS

FLAT WASHER, M6 - 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

51

Briggs & Stratton H186125GS

BRACKET, Muffler

$41.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton H186030GS

BASE, Muffler Box

$131.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 56893GS

CRIMPTITE, 10 - 24 x 1/2"

$3.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 22264GS

LOCKWASHER, M4 #8

$2.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 186790BGS

WIRE, Ground

$17.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 67897GS

MANIFOLD, Gasket

$

$

Not available

57

Briggs & Stratton 185900GS

MANIFOLD, Exhaust
(Superseded to 205626GS)

$223.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 186062GS

GASKET, Manifold, Muffler

$7.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 86307GS

HHCS, 5/16" x 3/4" SEMS

$2.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton B4260GS

DISK,Air Blocker

$48.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 186242GS

PPHMS, #4 - 40 x .019"
(Superseded to 708730)

$4.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 186205GS

SWITCH,Thermodisk Oil Temp.

$107.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 27772GS

LOCKWASHER, #4 Int.Tooth

$1.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 186206GS

PLATE, Oil Temp Switch

$6.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton B4268GS

ALTERNATOR, Sincro

$2472.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 22511GS

HHCS, 3/8 - 16 x 1-1/4"

$1.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton H186320GS

DEFLECTOR, 45° Muffler Box

$55.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton H186038GS

BOX, Muffler

$224.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 185894GS

MUFFLER, with Brackets
(Superseded to 205626GS)

$223.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 22471GS

NUT, #8-32

$3.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 185939CGS

CABLE, Starter

$

$

Not available

72

Briggs & Stratton 23152GS

HHCS, 3/8" - 16 x 3/4"

$2.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 27482GS

WASHER, 5/16" Ext. Shakeproof

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 186790CGS

WIRE, Ground

$17.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

77

Briggs & Stratton 186551GS

INSULATION, Fuel Hose

$13.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 26915GS

NIPPLE, 3/4" NPT

$3.49

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 69397GS

BOLT, Manifold

$

$

Currently unavailable

80

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

81

Briggs & Stratton 187277GS

SCREEN, Spark Arrestor w/ screws

$12.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton H189951GS

TRAY, Battery Support

$56.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 96924GS

J-BOLT

$7.49

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 49820GS

NUT, Locking Hex

$3.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 59637GS

TAPTITE, 3/8" - 16 x 3/4"
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

86

Briggs & Stratton 96137GS

PLUG, 1/8" - 27

$2.49

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 189295GS

FLAT WASHER
(Superseded to 22304GS)

$3.49

$

In Stock, only 1 left!

0

88

Briggs & Stratton A6344GS

FITTING, Barbed, 90°, 1/8" NPT

$15.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 189294GS

E-RING

$3.49

$

Usually ships in 2-12 days

0
