1465828P352 - MTD Garden Tractor (1996) (Walmart) Deck Assembly Parts Diagram

Garden Tractor

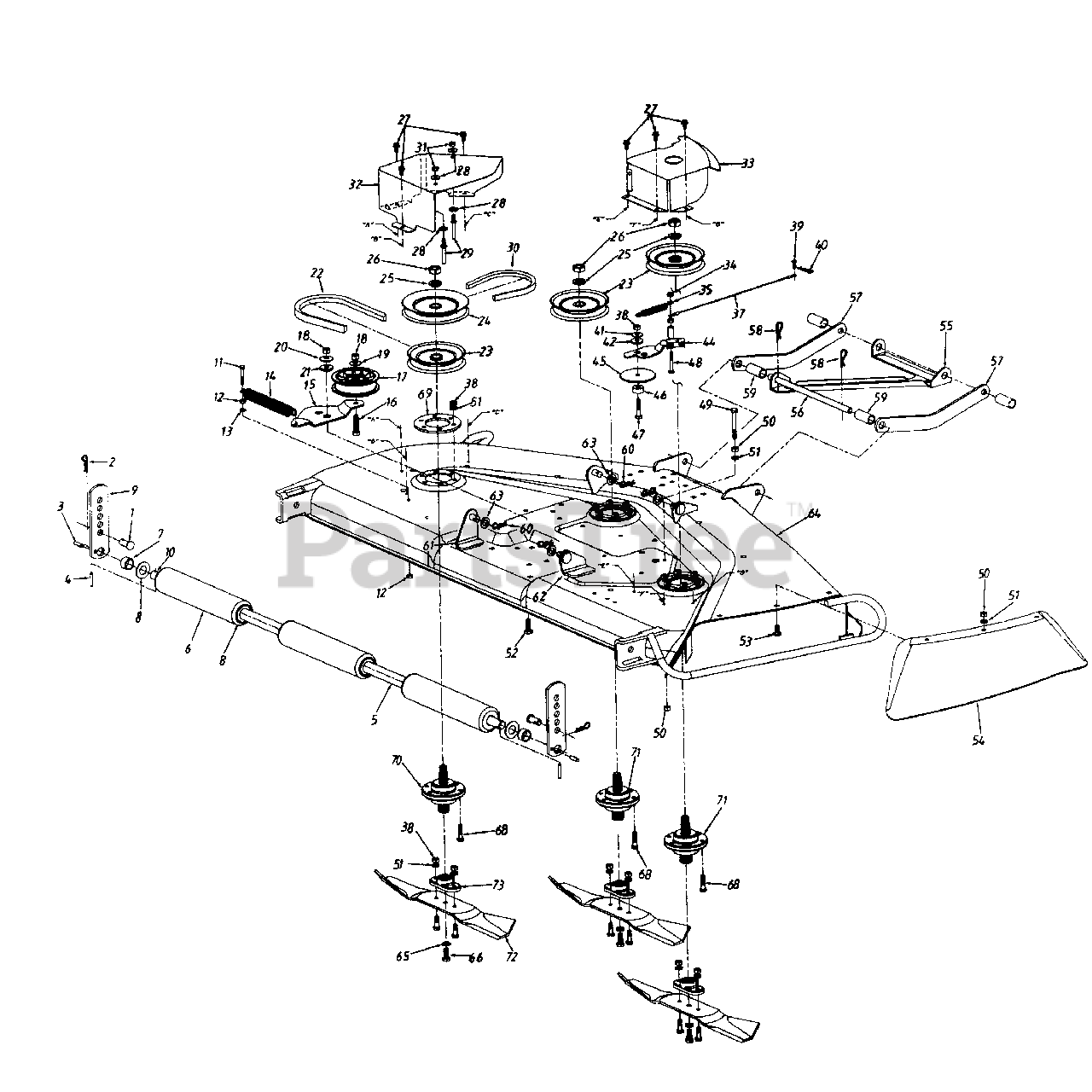

Deck Assembly Parts Diagram

  • Title
1

MTD Part# 711-0310

Clevis Pin
(Superseded to 911-0310)
Usually ships same day

Not available

$

$

2

MTD Part# 714-0101

Hairpin Clip
(Superseded to 914-0101)
Usually ships same day

Not available

$

$

3

MTD Part# 715-0108

Spring Pin 1/4" x 1" Lg.
Usually ships in 1 day

$

$3.52

0

4

MTD Part# 715-0246

Spring Pin 3/16" x 1-1/4" Lg.
(Superseded to 915-0246)
Usually ships in 1 day

$

$4.76

0

5

MTD Part# 750-0288

Spacer .82" I.D.

Variations

MTD Part# 750-0288-0637

Spacer, .82 x 1.0 x 5.75 - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

6

MTD Part# 731-0335

Deck Roller
Usually ships in 1 day

$

$50.90

0

7

MTD Part# 750-0212

Spacer .75" I.D.
(Superseded to 950-0212)
Usually ships same day

Not available

$

$

8

MTD Part# 736-0188

Fl-Wash. .76" I.D. x 1.5" O.D.
Usually ships in 1 day

$

$3.00

0

9

MTD Part# 12650

Height Adjuster

Variations

MTD Part# 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)
Usually ships in 1 day

$

$30.86

0

MTD Part# 12650-4008

Height Adjuster - WINE RED (4008)
Usually ships in 1 day

$

$30.86

0

Usually ships in 5 to 10 days

$

$30.86

0

10

MTD Part# 738-0295

Roller Shaft
Usually ships in 1 day

$

$87.71

0

11

MTD Part# 710-0698

Hex Bolt 1/4-28 x 1.5" Lg. (Gr. 5)
Usually ships same day

Not available

$

$

12

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

13

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

14

MTD Part# 732-0594A

Ext. Spring 7.33" Lg.
(Superseded to 932-0594A)
Usually ships in 1 day

$

$10.91

0

15

MTD Part# 783-0139

Idler Brkt.

Variations

MTD Part# 783-0139-0637

Idler Bracket, Black - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$15.97

0

Usually ships same day

$

$

16

MTD Part# 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)
Usually ships in 1 day

$

$5.15

0

17

MTD Part# 756-0627

Idler Pulley
(Superseded to 756-0627D)
Usually ships in 1 day

$

$22.70

0

18

MTD Part# 712-0241

Hex Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.10

0

19

MTD Part# 736-0105

Bell-Wash. 3/8" I.D.
Usually ships in 1 day

$

$3.15

0

20

MTD Part# 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.
Usually ships in 1 day

$

$2.78

0

21

MTD Part# 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)
Usually ships in 1 day

$

$7.16

0

22

MTD Part# 754-0291A

"V"-Belt
(Superseded to 954-0291A)
Usually ships in 1 day

$

$50.79

0

23

MTD Part# 756-0519

Deck Pulley
Usually ships in 1 day

$

$59.89

0

24

MTD Part# 756-0604

Upper Deck Pulley
Usually ships same day

Not available

$

$

25

MTD Part# 736-0158

L-Wash. 5/8" I.D.
(Superseded to 936-0158)
Usually ships in 1 day

$

$3.11

0

26

MTD Part# 712-0318

Hex Jam Nut 5/8-18 Thd.
Usually ships in 1 day

$

$2.63

0

27

MTD Part# 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5" Lg.
Usually ships in 1 day

$

$3.06

0

28

MTD Part# 736-0270

Bell-Wash. 1/4" I.D.
Usually ships in 5 to 10 days

$

$2.87

0

29

MTD Part# 711-0747

Belt Guard Pin
(Superseded to 911-0747)
Usually ships in 5 to 10 days

$

$7.48

0

30

MTD Part# 754-0364

"V"-Belt
(Superseded to 954-0364)
Usually ships in 1 day

$

$55.63

0

31

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

32

MTD Part# 783-0131

Belt Guard - L.H.

Variations

MTD Part# 783-0131-0480

GUARD-BELT LH - BRILLIANT GREEN (0480)
Usually ships in 5 to 10 days

$

$40.77

0

MTD Part# 783-0131-0483

GUARD-BELT LH - CHARCOAL GRAY (0483)
Usually ships in 5 to 10 days

$

$40.77

0

MTD Part# 783-0131-0637

GUARD-BELT LH - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$40.77

0

MTD Part# 783-0131-0638

GUARD-BELT LH - MTD/TROY-BILT RED (0638)
Usually ships in 5 to 10 days

$

$40.77

0

MTD Part# 783-0131-0648

GUARD-BELT LH - TECH GRAY (0648)
Usually ships in 5 to 10 days

$

$40.77

0

MTD Part# 783-0131-0665

GUARD-BELT LH - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

MTD Part# 783-0131-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

Usually ships in 5 to 10 days

$

$40.77

0

33

MTD Part# 783-0130

Belt Guard - R.H.

Variations

MTD Part# 783-0130-0480

No Longer Available - BRILLIANT GREEN (0480)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0483

No Longer Available - CHARCOAL GRAY (0483)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0638

No Longer Available - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0648

No Longer Available - TECH GRAY (0648)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0665

No Longer Available - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0629

No Longer Available GUARD-BELT - SILVER FLAKE (0629)
Usually ships same day

Not available

$

$

MTD Part# 783-0130-0662

No Longer Available GUARD-BELT - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

34

MTD Part# 712-0117

Hex L-Nut 1/4-28 Thd.
(Superseded to 912-0117)
Usually ships in 1 day

$

$2.02

0

35

MTD Part# 732-0429A

Ext. Spring 3.97" Lg.
(Superseded to 932-0429A)
Usually ships in 1 day

$

$6.57

0

?36

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

37

MTD Part# 727-0295

Brake Cable
Usually ships same day

Not available

$

$

38

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

39

MTD Part# 711-0701

Clevis Pin
(Superseded to 911-0701)
Usually ships in 5 to 10 days

$

$4.81

0

40

MTD Part# 714-0104

Hairpin Clip
(Superseded to 914-0104)
Usually ships in 1 day

$

$3.09

0

41

MTD Part# 736-0425

Bell-Wash. .325" I.D.
(Superseded to 936-0425)
Usually ships in 1 day

$

$3.18

0

42

MTD Part# 748-0234

Shld. Spacer
Usually ships in 1 day

$

$3.10

0

?43

MTD Part# 750-0470

Spacer 96" Lg.
Usually ships in 5 to 10 days

$

$4.81

0

44

MTD Part# 17116

Brake Ass'y
(Superseded to 97116)
Usually ships in 1 day

$

$38.56

0

45

MTD Part# 736-0416

Fl-Wash. 5/16" I.D. x .3" O.D
Usually ships same day

Not available

$

$

46

MTD Part# 750-0214

Spacer .44" Lg.
Usually ships same day

Not available

$

$

?47

MTD Part# 710-0624

Hex Bolt 5/16-24 x 1.5" Lg. (Gr. 5)
Usually ships in 5 to 10 days

$

$4.27

0

48

MTD Part# 710-0559

Hex Bolt 1/4-28 x 1.75" Lg. (Gr. 5)
Usually ships same day

Not available

$

$

49

MTD Part# 710-0378

Hex Bolt 5/16-18 x 2.5" Lg
Usually ships in 5 to 10 days

$

$3.29

0

50

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

51

MTD Part# 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

52

MTD Part# 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)
Usually ships in 1 day

$

$3.19

0

53

MTD Part# 710-0451

Carr. Bolt 5/16-18 x .75" Lg.
Usually ships in 1 day

$

$2.84

0

54

MTD Part# 12649

Chute Guard

Variations

MTD Part# 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$118.32

0

MTD Part# 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)
Usually ships in 5 to 10 days

$

$118.32

0

MTD Part# 12649-0648

GUARD-CHUTE - TECH GRAY (0648)
Usually ships same day

Not available

$

$

MTD Part# 12649-0650

No Longer Available GUARD-CHUT - RED METALLIC (0650)
Usually ships same day

Not available

$

$

MTD Part# 12649-0662

No Longer Available GUARD-CHUT - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

MTD Part# 12649-0665

No Longer Available GUARD-CHUT - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

55

MTD Part# 17264

Diagonal Brace

Variations

MTD Part# 17264-0637

Diagonal Brace - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

56

MTD Part# 738-0392

Connecting Rod
Usually ships in 5 to 10 days

$

$24.79

0

57

MTD Part# 17347

Stabilizer Link

Variations

MTD Part# 17347-0637

STABILIZER-DECK - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

58

MTD Part# 714-0149B

Hairpin Clip
(Superseded to 914-0149B)
Usually ships same day

Not available

$

$

59

MTD Part# 750-0932

Spacer 1.75" Lg.
(Superseded to 950-0932A)
Usually ships in 1 day

$

$14.69

0

60

MTD Part# 714-0145

Hairpin Clip
(Superseded to 914-0145)
Usually ships same day

Not available

$

$

61

Part#

UNKNOWN
Usually ships same day

Not available

$

$

62

Part#

UNKNOWN
Usually ships same day

Not available

$

$

63

MTD Part# 736-0192

Fl-Wash. 1/2" I.D. x .93" O.D.
(Superseded to 936-0192)
Usually ships in 1 day

$

$3.00

0

64

MTD Part# 683-0060

Deck Ass'y.

Variations

MTD Part# 683-0060-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 683-0060-0648

No Longer Available - TECH GRAY (0648)
Usually ships same day

Not available

$

$

MTD Part# 683-0060-0665

No Longer Available - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

65

MTD Part# 736-0217

L-Wash. 3/8" I.D.- H.D.
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

66

MTD Part# 710-0877

Hex Bolt 3/8-24 x .88" Lg. (Gr. 5)
(Superseded to 710-0696)
Usually ships in 1 day

$

$4.76

0

68

MTD Part# 710-0672

Hex Bolt 5/16-24 x 1-1/4" Lg. (Gr. 5)
Usually ships in 1 day

$

$3.08

0

69

MTD Part# 14249A

Spindle Reinforcement Plate
Usually ships same day

Not available

$

$

70

MTD Part# 618-0119

Spindle Ass'y. (L.H.)
(Superseded to 918-0119)

Note: New Part

Usually ships same day

Not available

$

$

71

MTD Part# 618-0118

Spindle Ass'y. (R.H. & Center)
(Superseded to 918-0118)

Note: New Part

Usually ships in 1 day

$

$140.86

0

72

MTD Part# 742-0171B

Blade
(Superseded to 942-0171B)
Usually ships in 1 day

$

$32.17

0

73

MTD Part# 748-0300

Blade Adapter
Usually ships in 1 day

$

$10.25

0

?74

MTD Part# 710-0888

Hex Bolt 5/16-24 x 1" Lg.
Usually ships in 1 day

$

$3.06

0
