1467-0 - Generac 1,700 PSI Pressure Washer Pressure Washer Parts Diagram

1,700 PSI Pressure Washer

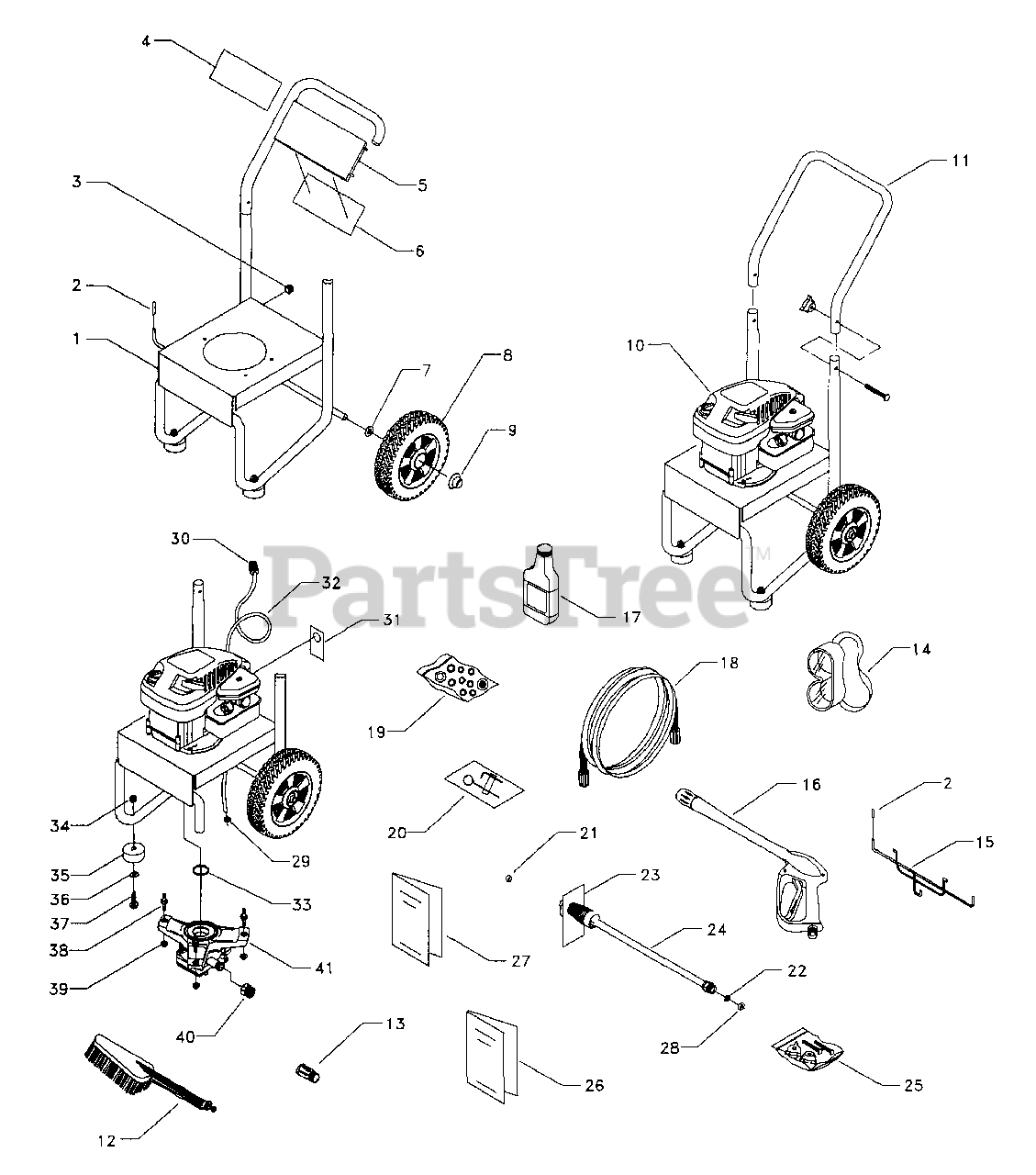

Pressure Washer Parts Diagram

  • Title
1

Briggs & Stratton AB1939

BASE, VSPW
(Superseded to AB1939GS)

$161.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B1460

CAP, Vinyl Black
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 30809

GROMMET, Chemical Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186481

DECAL, Logo 1700 PSI

$

$

Not available

5

Briggs & Stratton B1631B

BILLBOARD, Plastic
(Superseded to B1631BGS)

$29.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1932

DECAL, Instructions
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 49808

WASHER, M 12 Flat
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton B2142

TIRE, 2" X 9" Black Mag
(Superseded to B2142GS)

$19.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 3 left!

0

10

NSP

ENGINE

$

$

Not available

11

Briggs & Stratton AB1945

HANDLE, VS PW
(Superseded to AB1945GS)

$76.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 88185

BRUSH, Utility
(Superseded to 88185GS)

$77.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 88935

ADAPTER, Brush Extension
(Superseded to 88935GS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B1953A

WIREFORM
(Superseded to B1953AGS)

$30.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3263

SPRAY GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 8

0

17

Briggs & Stratton BB3061B

OIL, 20oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton B5693

HOSE, 1/4" X 25'
(Superseded to 708962)

$59.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton B5830

KIT, O-Ring Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton B2163

KIT, Nozzle Cleaning

$

$

Currently unavailable

21

Briggs & Stratton 21761

NOZZLE, Replacement

$

$

Not available

22

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$

$

Not available

23

Briggs & Stratton 97566

HANG TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3335

EXTENSION, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton B2203

KIT, Handle Fastening
(Superseded to B2203GS)

$5.49

$

In Stock, only 1 left!

0

26

Briggs & Stratton 186539

MANUAL, Engine
(Superseded to 186539GS)

$14.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 186482

MANUAL, Owner's

$

$

Not available

28

Briggs & Stratton 97837

O-RING, Hi Pressure Transfer
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B1210A

CARD, Starting Instructions
(Superseded to B1210AGS)

$2.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 98300

SEAL, Engine Donut
(Superseded to 98300GS)

$11.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 27007

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

36

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton B1214

HHCS, M8 X 1.25 X 45
(Superseded to B1214GS)

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B1735

STUD, Double Ended
(Superseded to B1735GS)

$

$

Not available

39

Briggs & Stratton B1880

NUT, With Washer
(Superseded to B1880GS)

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

41

-----

PUMP

Note: (For replacement, order 209940GS)

$

$

Not available

41

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available
