147-0310 - Toro 52" Recycler Kit for GrandStand Revolution Mower 52 Inch Recycler Kit Assembly No. 147-0310 Parts Diagram

52" Recycler Kit for GrandStand Revolution Mower

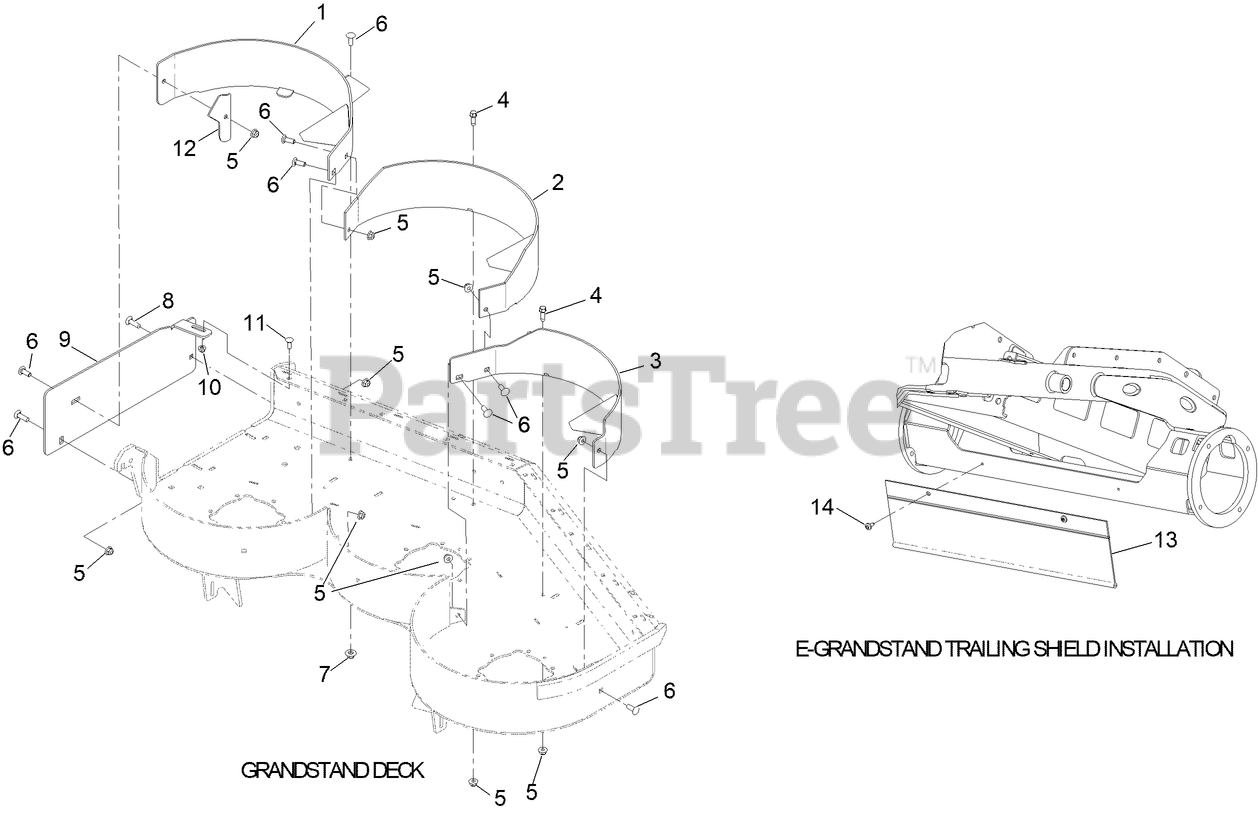

52 Inch Recycler Kit Assembly No. 147-0310 Parts Diagram

  • Title

1

Toro 139-6654-01

BAFFLE ASM-RH, 52

$288.99

$

Usually ships in 3-6 days

0

2

Toro 115-7477-01

BAFFLE-CENTER

$288.99

$

Usually ships in 3-6 days

0

3

Toro 115-7476-01

BAFFLE-LH

$288.99

$

Usually ships in 3-6 days

0

4

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 3231-28

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

9

Toro 115-7471-01

PLATE-COVER, DISCHARGE

$140.99

$

In Stock, only 4 left!

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

12

Toro 144-3726-01

PLATE-SIDE COVER

$14.99

$

Usually ships in 0 days

0

13

Toro 161-3556

SHIELD-TRAILING

$61.99

$

Usually ships in 0 days

0

14

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0
