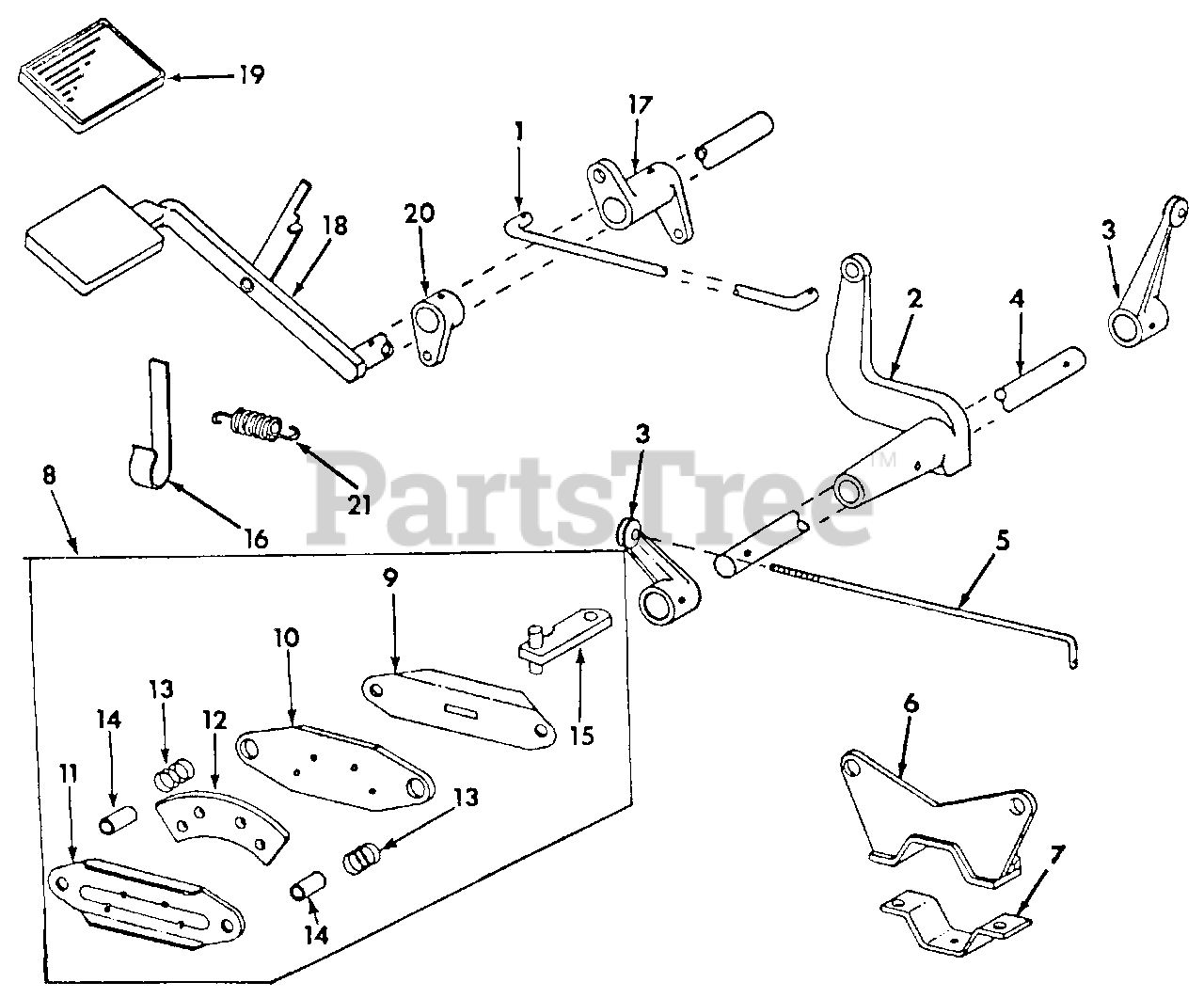

147 (2050041U) - Cub Cadet Garden Tractor Brakes & Connections Parts Diagram

Garden Tractor

Brakes & Connections Parts Diagram

  • Title

1

~NLA

Rod, Brake

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cot

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet IH-528629-R1

Lever, Brake

$

$

Currently unavailable

3

Cub Cadet IH-528630-R1

Arm, Brake

$

$

Not available

4

Cub Cadet IH-528814-R1

Shaft, Brake Pivot

$

$

Not available

Cub Cadet IH-19479-R1

Pin, 1/4 X 2 Hv Coiled Spring

$

$

Currently unavailable

Cub Cadet IH-25708-R1

Washer, 11/32 X 3/4 X 16 Ga Flat
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-137141

Pin, 1/16 X 5/8 C-Z Cot

$

$

Currently unavailable

Cub Cadet IH-124824

Nut, 5/16-18 C-Z Hex Jam

$

$

Not available

5

Cub Cadet IH-528818-R1

Rod, Brake

$

$

Not available

6

Cub Cadet 719-3014

Bracket Assy, Caliper

$

$

Currently unavailable

7

Cub Cadet 703-0222

Flange, Caliper Mounting

$

$

Not available

Screw, 3/8-16 X 1-1/4 Cdp Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet IH-57953-C91

Caliper Assy, Brake

Note: (Consists of Ref No. 9 thru 15)

$

$

Not available

9

Cub Cadet IH-530673-R1

Plate, Actuator Cam

$

$

Not available

10

Cub Cadet IH-530675-R1

Carrier, Flat Plate

$

$

Not available

11

~NLA

Carrier, Rib Plate

$

$

Not available

12

Liner, Brake

Note: (Order liner kit IH-544835-R91)

$

$

Not available

Cub Cadet IH-24699-R1

Rivet, 9/64 X 7/16 Fl Hd Tubular Brass

$

$

Not available

13

Cub Cadet IH-530678-R1

Spring, Compression

$

$

Not available

14

Cub Cadet IH-528823-R1

Bushing, Caliper

$

$

Not available

Screw, 3/8-24 Unf-2A Znd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Nut, 3/8-24 Unf-3B Hex Lock

Note: Common Hardware Purchase Locally

$

$

Not available

15

Cub Cadet IH-531636-R1

Lever, Cam

$

$

Not available

16

Cub Cadet IH-394037-R1

Clip, Safety Switch Release Lever Strip

$

$

Not available

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0114)

$9.99

$

In Stock, Qty 20+

0

Cub Cadet 715-3018

Pin, 1/4 X 1-3/8 Coiled Spring
(Superseded to 915-3000)

$

$

Not available

17

~NLA

Lever, Brake Rod

$

$

Not available

18

~NLA

Pedal Assy, Clutch & Brake

$

$

Not available

19

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

$20.99

$

In Stock, Qty 9

0

20

Cub Cadet 759-3106

Lever, Neutral Return

$

$

Not available

21

Cub Cadet 732-3015

Spring, Pedal Return
(Superseded to 932-3015)

$12.99

$

In Stock, Qty 6

0

Cub Cadet IH-544835-R91

Liner Kit Liner Rivet Spring

$247.99

$

Usually ships in 3-6 days

0
