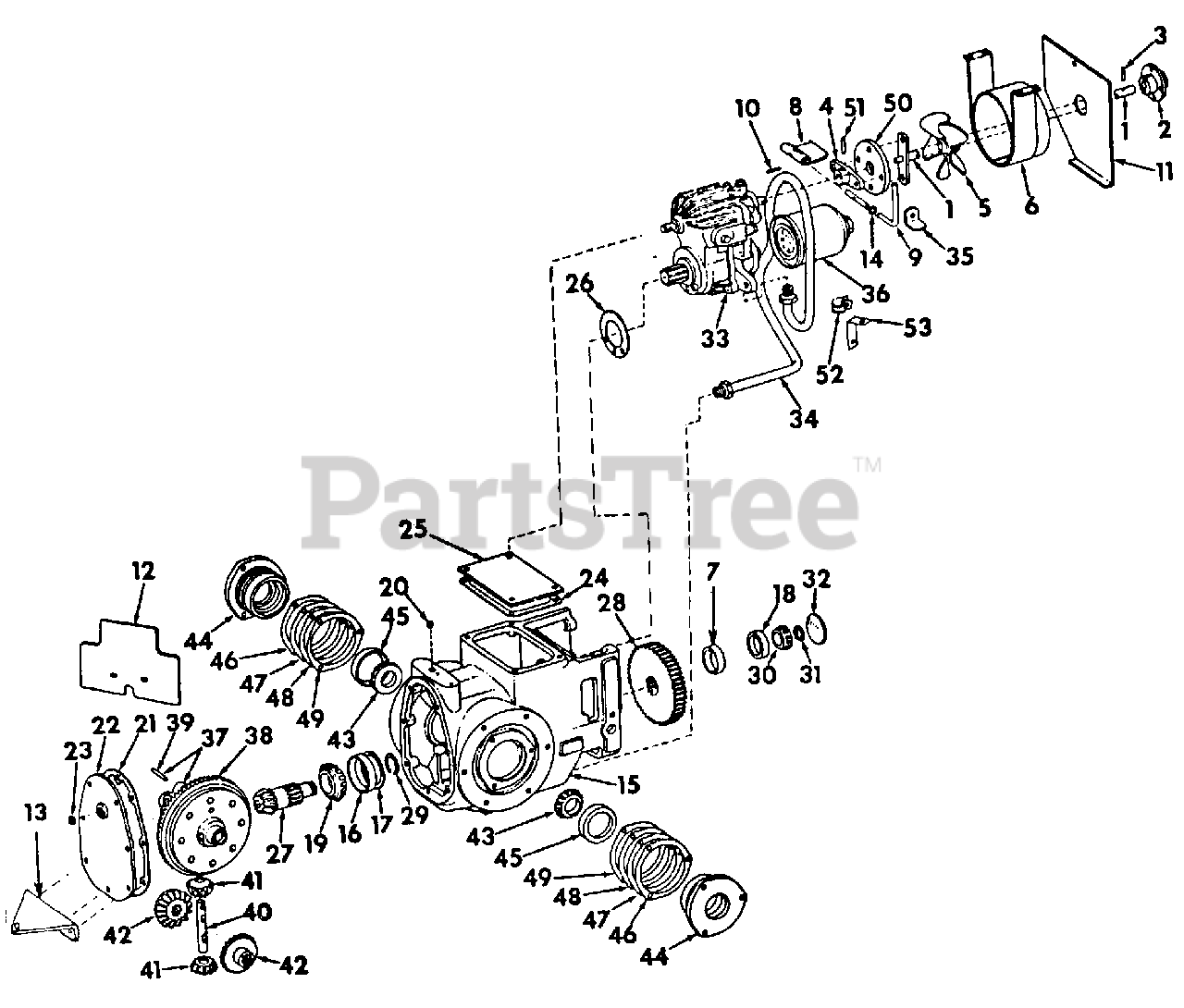

147 (2050041U) - Cub Cadet Garden Tractor Transmission Case, Differential, Hydro Drive & Rel Parts Parts Diagram

Garden Tractor

Transmission Case, Differential, Hydro Drive & Rel Parts Parts Diagram

  • Title

1

Cub Cadet IH-397373-R2

Rod Assy, Drive

$181.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-394034-R31

Hub Assy, Drive Plate
(Superseded to IH-394034-R32)

$160.99

$

In Stock, only 1 left!

0

Screw, 1/4-20 X 5/8 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 1/4 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

3

Cub Cadet IH-19837-R1

Pin, 1/4 X 1-1/2 Dowel
(Superseded to IH-19837-R2)

$9.49

$

In Stock, only 2 left!

0

4

Cub Cadet 759-3009

Arm, Coupling

$124.99

$

Usually ships in 3-6 days

0

Screw, 3/8-16 X 1-1/8 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 3/8 X 3/4 X .062

Note: Common Hardware Purchase Locally

$

$

Not available

5

Cub Cadet IH-394065-R92

Fan, Cooling

$29.99

$

In Stock, only 1 left!

0

Cub Cadet IH-139042

Screw, 5/16-24 X 5/16 Hex Soc Hd

$

$

Not available

6

~NLA

Shroud Assy, Fan

$

$

Not available

~NLA

Nut, Mach Screw Spring

$

$

Not available

Cub Cadet IH-159927

Screw, 10-24 X 1/2 C-Z Slt Pan Hd Mach

$

$

Not available

Cub Cadet 736-0931

Washer, 7/32 X 1/2 X .049 C-Z

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet IH-530647-R1

Spacer, Pinion Shaft Gear

$

$

Currently unavailable

Washer, 1-11/32 X 2 X 11 Ga Flat

Note: Common Hardware Purchase Locally

$

$

Not available

8

Cub Cadet 703-0310

Actuator, Dump Valve

$

$

Not available

9

~NLA

Rod, Dump Valve

$

$

Not available

10

Cub Cadet 715-3008

Pin, 1/8 X 3/4 C-Z Hv Coiled Spring

$

$

Not available

11

~NLA

Plate, Air Baffle

$

$

Not available

Washer, 1/4 X 9/16 X 18 Ga C-Z

Note: Common Hardware Purchase Locally

$

$

Not available

Screw, 1/4-28 X 5/8 C-Z Hex Hd Tap

Note: Common Hardware Purchase Locally

$

$

Not available

12

~NLA

Shield, Rear Cover

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 5/8 Hex Hd Cap

$

$

Not available

13

Cub Cadet 703-0401

Drawbar, Fixed

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 1 Hex Hd Cap

$

$

Not available

14

Cub Cadet 735-3008

Grommet, Rubber

$

$

Not available

15

Cub Cadet IH-394081-R91

Case Assy, Transmission

Note: (Also order plug IH-379277-C1)

$

$

Currently unavailable

Cub Cadet IH-379277-C1

Plug, 1-3/8 Cup

$

$

Not available

16

Cub Cadet IH-394083-R91

Bearing, Bevel Pinion Shaft Rear Cup

$

$

Not available

17

Cub Cadet 717-3123

Shim, Rear Brg Cup, .004

$

$

Not available

Cub Cadet 717-3124

Shim, Rear Brg Cup, .015

$

$

Not available

Cub Cadet 717-3125

Shim, Rear Brg Cup, .007

$

$

Not available

18

Cub Cadet 741-0372

Bearing, Bevel Pinion Shaft Front Cup
(Superseded to 741-04548)

$9.49

$

In Stock, only 2 left!

0

19

Cub Cadet IH-394083-R91

Bearing Assy, Bevel Pinion Shaft Rear Cone

$

$

Not available

20

Cub Cadet 727-3025

Plug, Breather

$

$

Currently unavailable

21

Cub Cadet IH-350837-R2

Gasket, Rear Cover Plate
(Superseded to IH-350837-R3)

$31.99

$

In Stock, only 1 left!

0

22

Cub Cadet IH-394089-R11

Plate Assy, Rear Cover

$

$

Currently unavailable

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 5/8 Hex Hd Cap

$

$

Not available

23

Cub Cadet 737-0177

Plug, 1/2-14 Automotive Sq-Soc-Hd Drain

$

$

Not available

24

Cub Cadet IH-394091-R1

Gasket, Top Cover

$

$

Not available

25

Cub Cadet IH-394090-R1

Cover, Top

$

$

Currently unavailable

Screw, 3/8-16 X 3/4 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

26

Cub Cadet 721-3004

Gasket, Front
(Superseded to 921-3004)

$11.99

$

In Stock, only 4 left!

0

27

Cub Cadet IH-394093-R1

Shaft, Bevel Pinion

$

$

Currently unavailable

28

Cub Cadet 717-3141

Gear, Constant Mesh -66T

$

$

Not available

29

Cub Cadet IH-323315-C1

Ring, Gear Retainer

$

$

Not available

30

Cub Cadet 741-0373

Bearing Assy, Bevel Pinion Shaft Front Cone
(Superseded to 741-04549)

$20.99

$

In Stock, only 2 left!

0

31

Cub Cadet 717-3127

Ring, Pinion Shaft Front Brg Retainer, .125

$

$

Not available

Cub Cadet 717-3128

Ring, Pinion Shaft Front Brg Retainer, .119
(Superseded to 917-3128)

$

$

Not available

Cub Cadet 717-3129

Ring, Pinion Shaft Front Brg Retainer, .113

$

$

Not available

Cub Cadet 717-3130

Ring, Pinion Shaft Front Brg Retainer, .107

$

$

Not available

Cub Cadet IH-395099-R1

Ring, Pinion Shaft Front Brg Retainer, .101

$

$

Currently unavailable

Cub Cadet 717-3132

Ring, Pinion Shaft Front Brg Retainer, .131

$

$

Not available

32

Cub Cadet 726-0216

Plug, 2-1/8 Expansion

$

$

Not available

33

Cub Cadet 717-3032

Transmission Assy, Hydrostatic Drive

Note: (For components see list of parts under details of hydrostatic transmission

$

$

Currently unavailable

Screw, 3/8-16 X 1-1/4 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

34

Cub Cadet IH-394827-R21

Tube Assy, Suction

$

$

Not available

35

~NLA

Bracket, Lever Retaining

$

$

Not available

Cub Cadet 736-3001

Washer, Spring

$

$

Not available

Cub Cadet 712-0324

Nut, 1/4-20 Nylon Insert

$3.99

$

In Stock, only 2 left!

0

36

Cub Cadet 723-3014

Filter Assy
(Superseded to 923-3014)

$21.99

$

In Stock, Qty 20+

0

37

Cub Cadet IH-223472-C91

Case, Differential w/Drive Gear

$

$

Currently unavailable

38

Cub Cadet IH-350787-R1

Gear, Drive -46T

$

$

Not available

~NLA

Rivet, 5/16 X 1-1/8 Rd Hd

$

$

Not available

39

Cub Cadet IH-350788-R1

Pin, Pinion Shaft Lock

$

$

Not available

40

Cub Cadet IH-350789-R1

Shaft, Pinion

$

$

Currently unavailable

41

Cub Cadet 717-3113

Pinion -10T

$

$

Not available

42

~NLA

Gear, Side

$

$

Not available

43

Cub Cadet 741-0369

Bearing Assy, Cone

$

$

Not available

44

Cub Cadet IH-376158-R91

Cage Assy, Differential Brg

$

$

Currently unavailable

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 1 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

45

Cub Cadet IH-ST974

Bearing, Cup

$

$

Not available

46

Cub Cadet 717-3097

Shim, Bearing Retainer, .004

$

$

Not available

47

Cub Cadet 717-3098

Shim, Bearing Retainer, .007

$

$

Not available

48

Cub Cadet 717-3099

Shim, Bearing Retainer, .0149

$39.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 717-3100

Shim, Bearing Retainer, .0299

$

$

Not available

50

Cub Cadet IH-376257-R3

Disc, Flexible Coupling

$46.99

$

In Stock, only 2 left!

0

51

Cub Cadet 715-3006

Pin, 1/4 X 1-3/4 Hv Coiled Spring
(Superseded to 915-3006)

$3.99

$

In Stock, Qty 6

0

Cub Cadet IH-385525-R1

Nut, 3/8-16 Gripco Center Lock
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

52

~NLA

Clip, Suction Tube

$

$

Not available

Screw, 1/4-20 X 1/2 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 1/4 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Nut, 1/2-20 Hex

Note: Common Hardware Purchase Locally

$

$

Not available

53

~NLA

Bracket, Suction Tube

$

$

Not available
