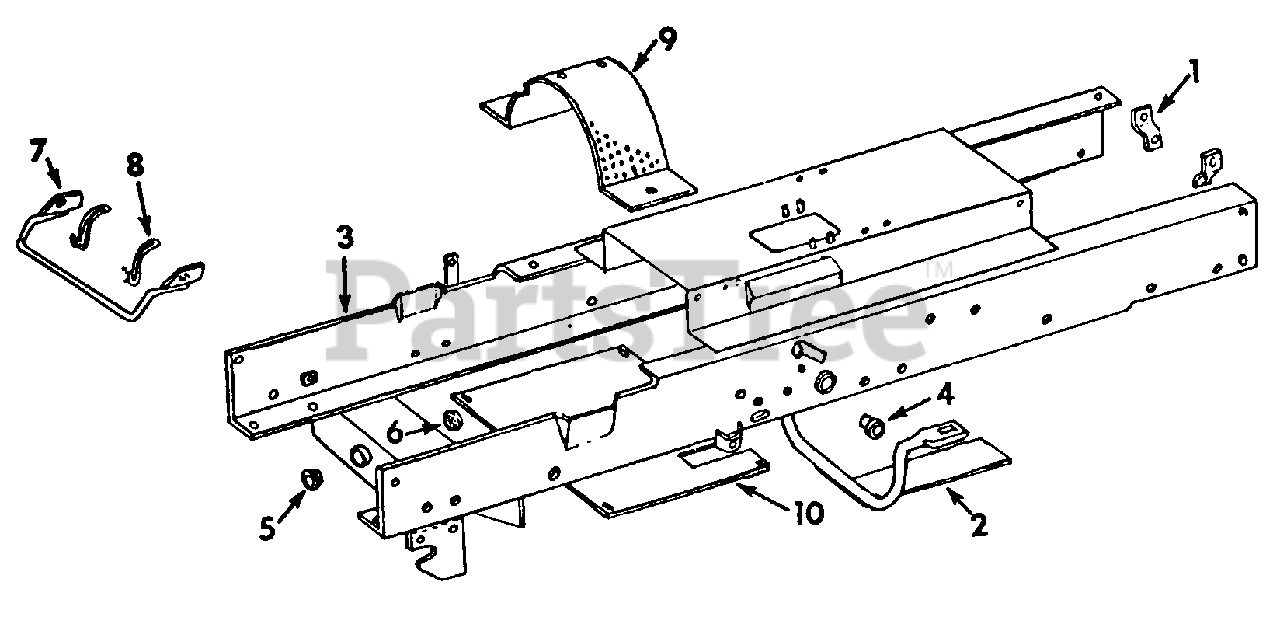

147 (2050203U) - Cub Cadet Garden Tractor Frame & Connections Parts Diagram

Garden Tractor

Frame & Connections Parts Diagram

  • Title

1

Cub Cadet 703-0168

Bracket, Transmission Mounting

$

$

Not available

Bolt, 3/8-16 X 1 Hex Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

2

~NLA

Guard Assy, Suction Tube

$

$

Not available

Screw, 5/16-24 X 3/4 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

3

~NLA

Frame Assy

$

$

Not available

Screw, 3/8-16 X 11/16 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Screw, 3/8-16 X 1-1/4 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Nut, 1/4-20 Hex

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet IH-21318-R1

Screw, 3/8-16 X 2-1/2 Hex Hd Cap

$

$

Not available

4

~NLA

Bearing, Clutch Pedal Shaft

$

$

Not available

5

Cub Cadet IH-384837-R1

Bracket, Front Axle Pivot Pin Front

$

$

Not available

6

Cub Cadet 711-3005

Washer, Front Axle Pivot Pin Rear

$13.99

$

Usually ships in 3-6 days

0

7

~NLA

Hitch Assy, Quick

$

$

Not available

Cub Cadet 711-3010

Pin, 3/8 X 1-3/32 Std Hd C-Z
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cot C-Z

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 738-3001

Bolt, Implement Mtg Shoulder

$

$

Not available

Cub Cadet 736-0272

Washer, Implement Mtg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet IH-402344-R3

Spring, Latch
(Superseded to IH-402344-R4)

$

$

Not available

9

~NLA

Screen, Air Intake

$

$

Not available

Cub Cadet IH-172415

Screw, 12-24 X 1/2 Znd Hex Hd Cap
(Superseded to 710-1189)

$

$

Not available

Washer, No. 12 C-Z Ext Tooth Lock

Note: Common Hardware Purchase Locally

$

$

Not available

10

~NLA

Shield, Bottom Dust

$

$

Not available

Cub Cadet IH-172415

Screw, 12-24 X 1/2 Znd Hex Hd Cap
(Superseded to 710-1189)

$

$

Not available

Washer, No. 12 C-Z Ext Tooth Lock

Note: Common Hardware Purchase Locally

$

$

Not available
