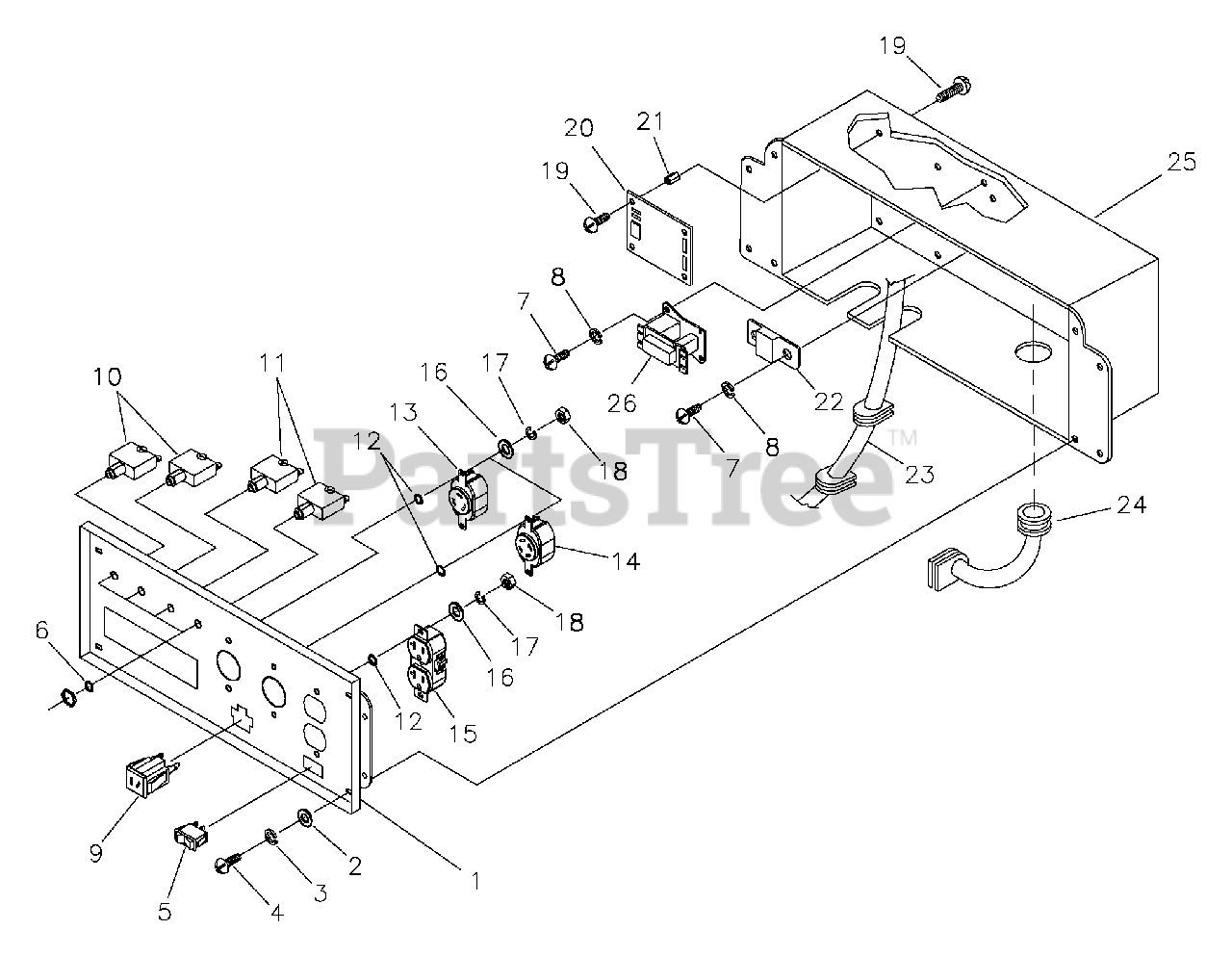

1470-1 - Generac EXL 7,500 Watt Portable Generator Control Panel Parts Diagram

EXL 7,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton A92070GS

PANEL, Control

$22.99

$

Usually ships in 2-12 days

0

2

WASHER, Flat, #10 M5

Note: (Purchase locally)

$

$

Not available

3

WASHER, Lock, M5

Note: (Purchase locally)

$

$

Not available

4

SCREW, M5-0.8 x 12mm

Note: (Purchase locally)

$

$

Not available

5

Briggs & Stratton 82538GS

SWITCH, Idle Control

$6.99

$

Usually ships in 2-12 days

0

6

WASHER, Lock, 7/16"

Note: (Purchase locally)

$

$

Not available

7

SCREW, M3 - 0.5 x 10mm

Note: (Purchase locally)

$

$

Not available

8

WASHER, Lock, M3

Note: (Purchase locally)

$

$

Not available

9

Briggs & Stratton 90418GS

OUTLET, 12V

$

$

Not available

10

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

12

WASHER, #8 Shakeproof

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 68868GS

OUTLET, 120V, 30A Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437GS

OUTLET, 120V/240V, 30A Locking

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68759GS

OUTLET, 120V, 20A Duplex

$24.99

$

In Stock, only 2 left!

0

16

WASHER, Flat, M4

Note: (Purchase locally)

$

$

Not available

17

WASHER, Lock, #8 M4

Note: (Purchase locally)

$

$

Not available

18

NUT, M4-0.7 Hex

Note: (Purchase locally)

$

$

Not available

19

SCREW, #6-32 x 3/8"

Note: (Purchase locally)

$

$

Not available

20

Briggs & Stratton 83970GS

BOARD, System Control

$

$

Not available

21

Briggs & Stratton 64525GS

STAND-OFF, 3/4" Hex

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962GS

BREAKER. Circuit, 12V, 10A

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335GS

ASSY,Wire Harness

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134GS

GROMMET, Rubber Conn.

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B92069GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 2 left!

0
