1470-1 - Generac EXL 7,500 Watt Portable Generator Main Unit (Part 2) Parts Diagram

EXL 7,500 Watt Portable Generator

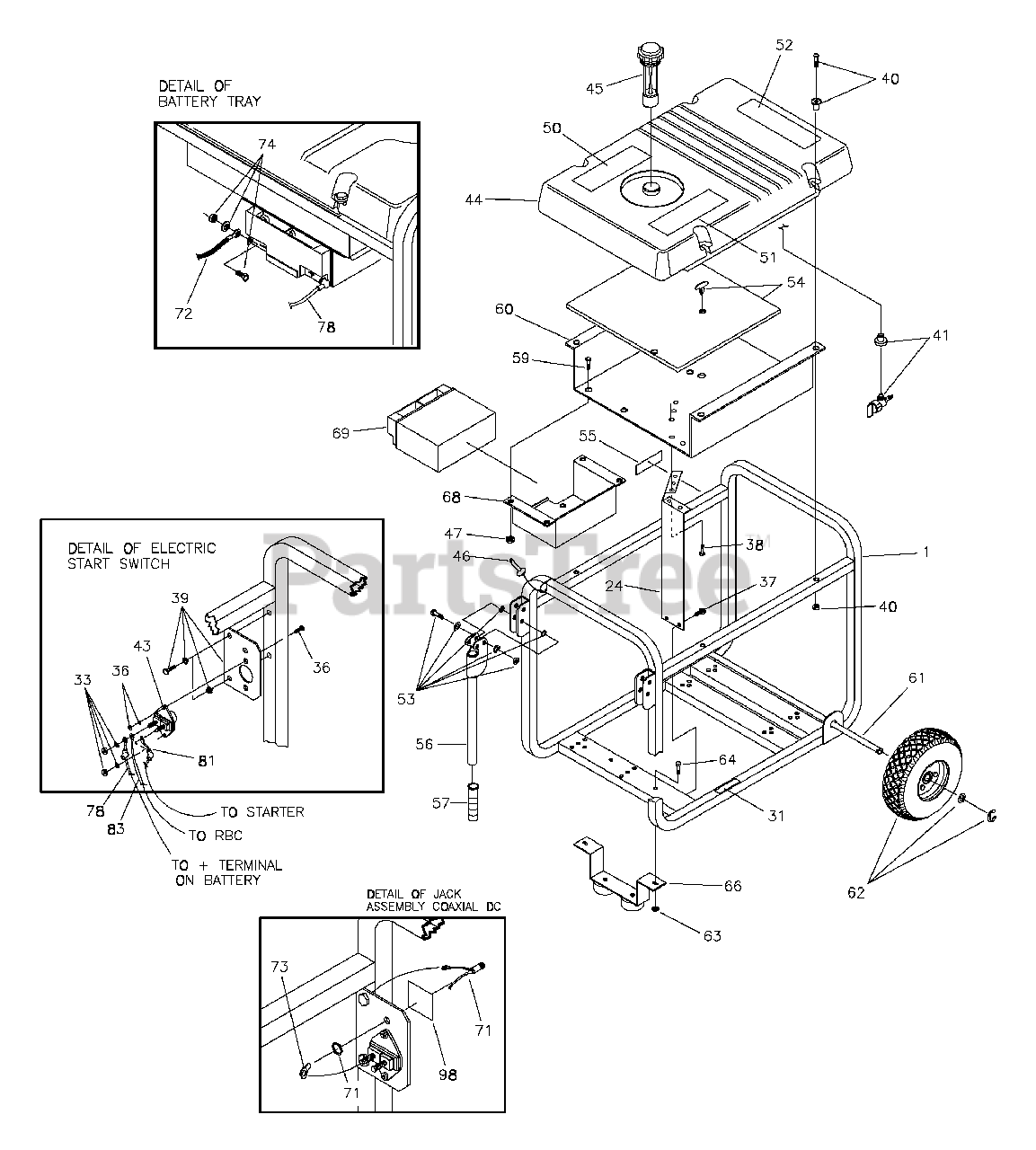

Main Unit (Part 2) Parts Diagram

  • Title

1

Briggs & Stratton M197022GS

CRADLE, Red

$

$

Not available

24

Briggs & Stratton 194390GS

SHIELD, Heat

$91.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$16.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194507GS

KIT, Hardware, Starter Contact

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8, Self Driller

$4.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 194440GS

KIT, Hardware Mounting Starter

$5.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8, Self Driller

$4.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2"

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 194439GS

KIT, Mounting Plate Switch

$

$

Not available

40

Briggs & Stratton 194401GS

KIT, Hardware Tank Fuel

Note: (Includes Qty. 4)

$8.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,Valve,Tank

$18.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 77282GS

SWITCH, Starter

$81.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 193823GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, with Gauge, Fuel

$43.99

$

In Stock, Qty 11

0

46

Briggs & Stratton B4135GS

PIN, with Lanyard

$

$

Not available

47

Briggs & Stratton 77395GS

NUT, Flange Lock - M6

$3.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Fuel Level

$25.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$12.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 93826GS

DECAL, Start Instructions

$

$

Not available

53

Briggs & Stratton 194034GS

KIT, Hardware Fold Down Handle

$11.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation, with Clip

$

$

Not available

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-Off

$9.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton B193200GS

ASSY, Handle

Note: (Includes Item 57)

$42.99

$

In Stock, only 4 left!

0

57

Briggs & Stratton 198669GS

GRIP

$9.49

$

Usually ships in 2-12 days

0

59

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

60

Briggs & Stratton 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$141.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 191267GGS

AXLE

$31.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194509GS

KIT,Wheel

$55.99

$

In Stock, only 2 left!

0

63

Briggs & Stratton 52858GS

NUT, M8-1.25, Lock

$3.99

$

In Stock, Qty 12

0

64

HHCS, M8 - 1.25 x 20

Note: (Purchase locally)

$

$

Not available

66

Briggs & Stratton 189956GS

SUPPORT,Wheel, Riveted
(Superseded to 193982GS)

$

$

Not available

68

Briggs & Stratton 195680GS

TRAY, Battery

$66.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$145.99

$

In Stock, only 2 left!

0

71

Briggs & Stratton 188989GS

ASSY, Jack, DC
(Superseded to 192531GS)

$

$

Not available

72

Briggs & Stratton 185939HGS

ASSY,Wire, #55

$21.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

LUG, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 193347GS

KIT, Battery Hardware

$2.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302CGS

ASSY,Wire, #13

$

$

Not available

81

Briggs & Stratton 189302BGS

ASSY,Wire, #16

$

$

Not available

83

Briggs & Stratton 191698GS

ASSY,Wire, #13

$42.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 189198GS

DECAL, Instruction, ES

$9.49

$

In Stock, only 1 left!

0
