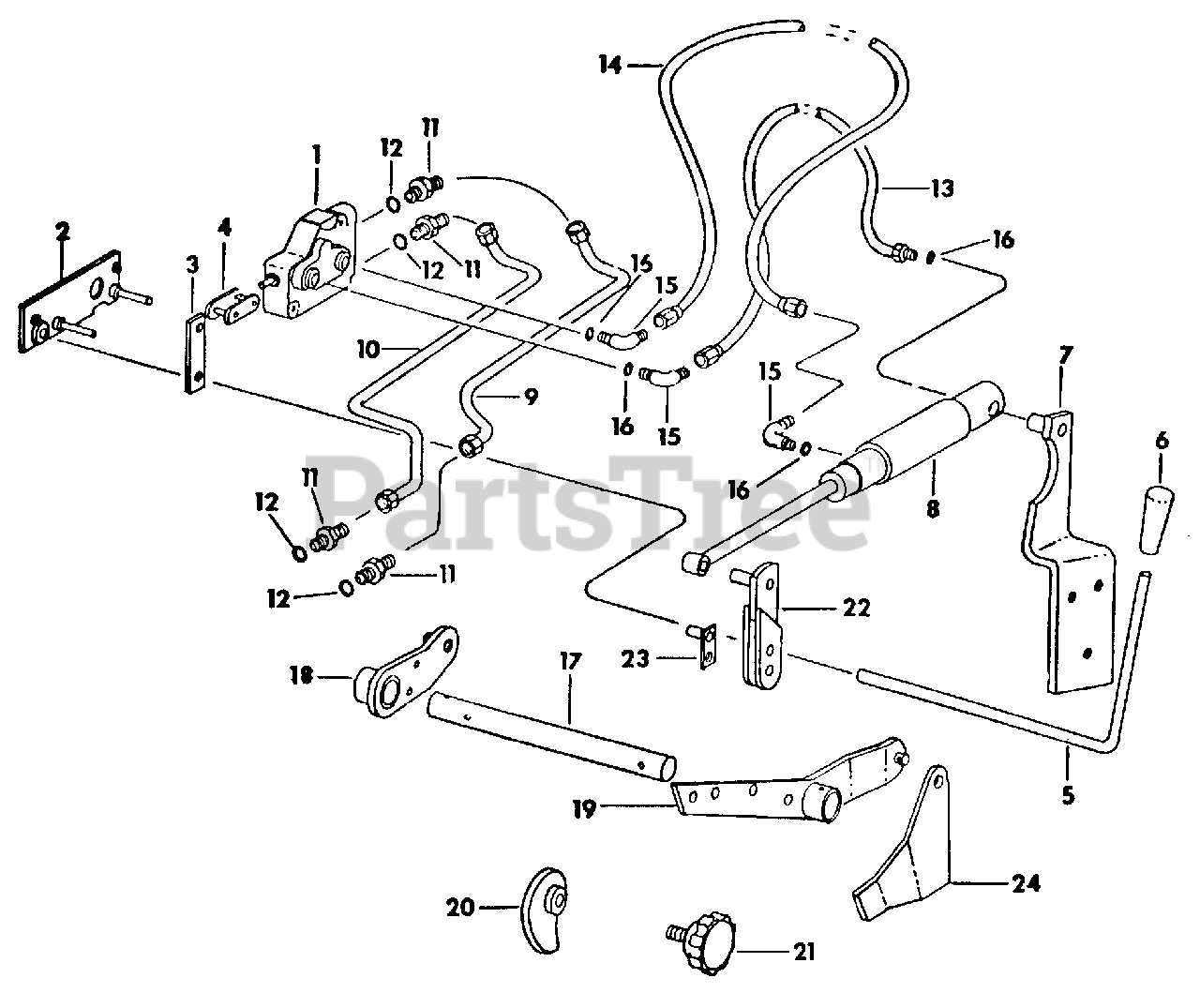

149 (2050047U) - Cub Cadet Garden Tractor Hydraulic Lift Parts Diagram

Garden Tractor

Hydraulic Lift Parts Diagram

  • Title

1

Valve Assy, Control

Note: (Order valve assy 717-3004)

$

$

Not available

Valve Assy, 4 Way Control

Note: (Order valve assy 717-3004)

$

$

Not available

2

~NLA

Plate Assy, Valve Mtg

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 Znd Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 12

0

3

Cub Cadet IH-548037-R1

Link, Valve Handle

$

$

Not available

4

Cub Cadet 713-3000

Link, Chain
(Superseded to 913-3000)

$

$

Not available

5

Cub Cadet IH-548037-R1

Handle, Valve

$

$

Not available

Cub Cadet IH-19313-R1

Pin, 1/8 X 1 Hv Coiled Spring

$

$

Not available

6

Cub Cadet IH-396454-R1

Grip, Handle

$

$

Not available

7

Cub Cadet IH-548038-R1

Bracket Assy, Lift

$

$

Currently unavailable

Cub Cadet 710-0514

Screw, 3/8-16 X 1 Znd Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, 3/8 Znd Reg Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8-16 Znd Hex

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet IH-548040-R3

Cylinder, Lift

$

$

Currently unavailable

Washer, 25/32 X 1-1/8 X 10 Ga

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Pin, 1/4 X 1-1/4 Cotter

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0272

Washer, 17/32 X 1 X 11 Ga

$5.49

$

In Stock, Qty 20+

0

Pin, 3/16 X 7/8 Cotter

Note: (Common Hardware, Purchase Locally)

$

$

Not available

9

Cub Cadet IH-548043-R1

Tube Assy, Return

$

$

Not available

10

Cub Cadet IH-548042-R1

Tube Assy, Pressure

$

$

Not available

11

Cub Cadet 727-3002

Union, 37 Deg Flared Short Swivel Tube
(Superseded to 927-3002)

$13.99

$

In Stock, only 2 left!

0

12

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.99

$

In Stock, Qty 6

0

13

Cub Cadet IH-548044-R2

Hose, Lift

$

$

Not available

14

Cub Cadet IH-548045-R2

Hose, Lower

$

$

Not available

15

Cub Cadet 727-3012

Elbow, 90 Deg Tube

$28.99

$

In Stock, only 4 left!

0

16

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.99

$

In Stock, Qty 6

0

17

Cub Cadet IH-544194-R1

Rockshaft

$

$

Not available

18

Cub Cadet IH-544195-R1

Arm Assy, Lift LH

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Coiled Spring

$9.49

$

Usually ships in 3-6 days

0

19

Cub Cadet IH-545627-R1

Arm Assy, Lift RH

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Coiled Spring

$9.49

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-544202-R2

Cam Assy, Lift Handle Stop

$

$

Currently unavailable

21

Cub Cadet IH-544205-R1

Knob, Torque

$

$

Not available

Cub Cadet IH-178374-R1

Washer, 17/32 X 1-1/8 X 18 Ga C-Z

$

$

Not available

22

Cub Cadet IH-548046-R1

Clevis Assy, Hyd Lift

$

$

Currently unavailable

Pin, 1/2 X 1-3/16 Std Hd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0272

Washer, 17/32 X 1-1/16 X 16 Ga

$5.49

$

In Stock, Qty 20+

0

Pin, 3/16 X 7/8 Cotter

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-475579-R1

Pin, Quick Attachable Cotter
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet IH-545633-R1

Pin Assy, Float Lockout

$

$

Not available

24

Cub Cadet IH-548048-R1

Plate Assy, Rockshaft

$

$

Not available

Cub Cadet 715-3002

Pin, 5/16 X 1-1/2 Coiled Spring

$9.49

$

Usually ships in 3-6 days

0
