149-817-000 - MTD Garden Tractor Accessory (1989)

Garden Tractor Accessory

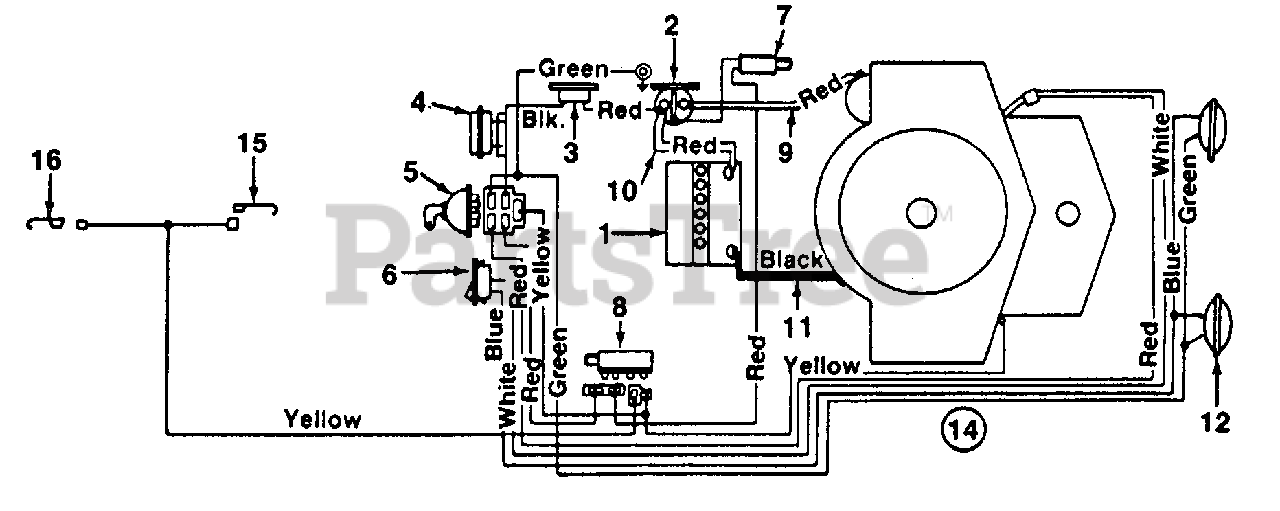

149-817-000 - MTD Garden Tractor Accessory (1989) > Parts Diagrams (2) > Electrical

  • Title
725-0453A

1

Battery

Part# 725-0453A

OEM Warranty Repair Part for MTD

Not available

725-0771

2

Solenoid

Part# 725-0771 (Superseded to 925-0771)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.91

725-0459

3

Circuit Breaker

Part# 725-0459 (Superseded to 753-0685)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.60

725-0925

4

Ammeter

Part# 725-0925 (Superseded to 925-0925)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $20.19

725-0267

5

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.44

725-0634

6

Light Switch

Part# 725-0634 (Superseded to 925-0634)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.81

725-0268

7

Safety Switch

Part# 725-0268 (Superseded to 925-0268)

Note: (Clutch)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.77

725-0465A

8

Safety Switch

Part# 725-0465A (Superseded to 925-0465A)

Note: (PTO)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.69

725-0561

9

Electric Wire 14" Lg.

Part# 725-0561 (Superseded to 629-0705)

OEM Warranty Repair Part for MTD

Not available

725-0563

10

Electric Wire 7.5" Lg.

Part# 725-0563

OEM Warranty Repair Part for MTD

Currently unavailable

725-0996

11

Ground Wire 7.5" Lg.

Part# 725-0996

OEM Warranty Repair Part for MTD

Not available

725-0222

12

Lamp

Part# 725-0222 (Superseded to 925-0222)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $39.07

725-1398

14

Wire Harness

Part# 725-1398

OEM Warranty Repair Part for MTD

Currently unavailable

725-0759

15

Spring Switch

Part# 725-0759 (Superseded to 753-0579)

OEM Warranty Repair Part for MTD

Not available

725-1303

16

Spring Switch

Part# 725-1303 (Superseded to 925-1303)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.13
