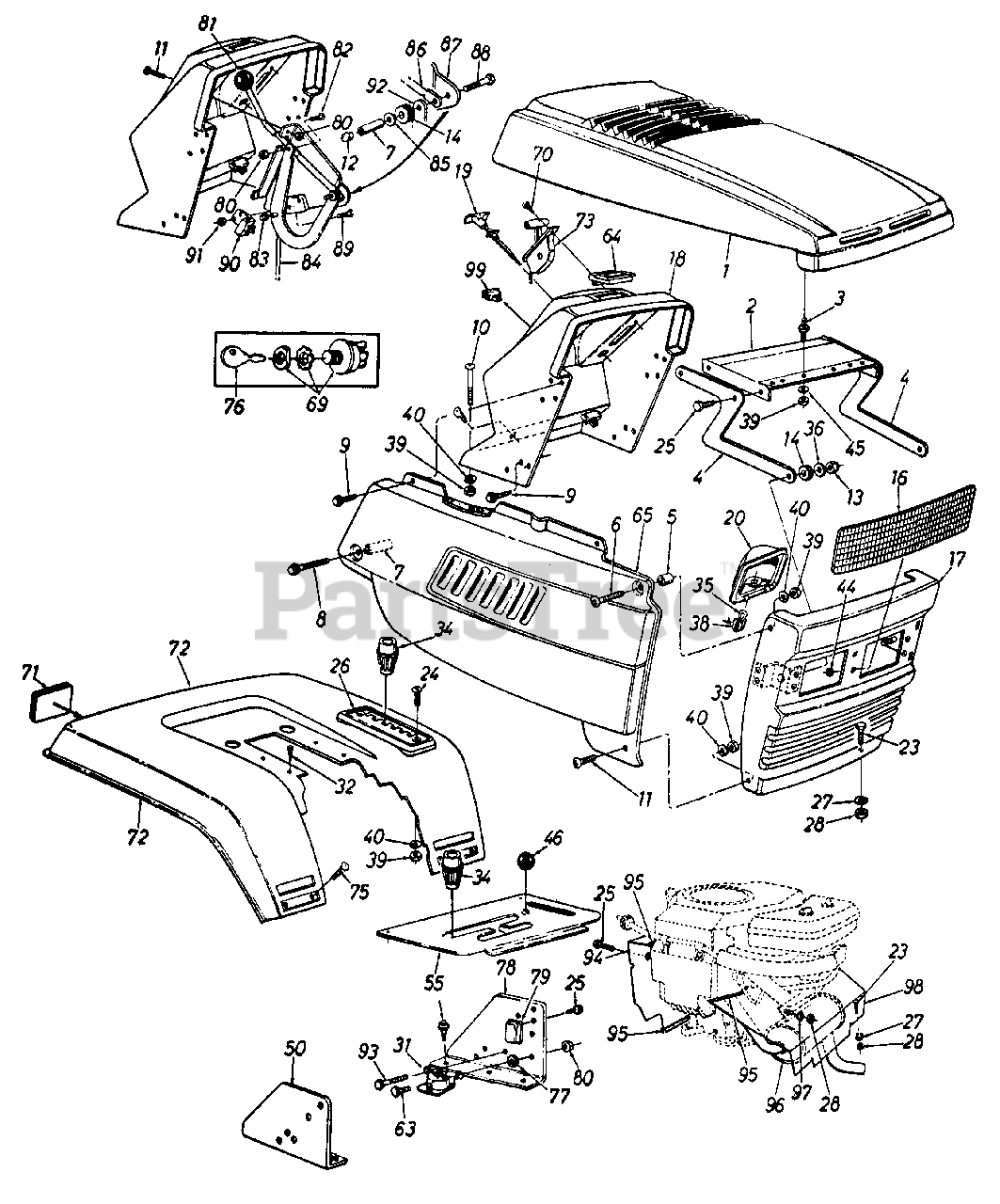

149-819-000 - MTD Garden Tractor (1989) Parts21 Parts Diagram

Garden Tractor

Parts21 Parts Diagram

  • Title

1

MTD 731-1054

Hood

$

$

Currently unavailable

2

MTD 16903

Hood Plate

$

$

Not available

3

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

4

MTD 17273

Hood Hinge

$

$

Not available

5

MTD 750-0287

Spacer .34" I.D. x .437"

$

$

Currently unavailable

6

MTD 710-0166

Truss Hd. Mach. Scr. 1/4-20 Thd.
(Superseded to 710-0166A)

$6.99

$

In Stock, only 1 left!

0

7

MTD 750-0583

Spacer.26" I.D. x .375"

$

$

Not available

8

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.49

$

In Stock, Qty 20+

0

9

MTD 710-0642

Hex T-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0136

Truss Mach. Scr. 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, only 2 left!

0

11

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

MTD 712-0324

Hex Ins. L-Nut 1/4 20 Thd.

$3.49

$

In Stock, Qty 20+

0

13

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

14

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

16

MTD 731-1044

Headlight Lens
(Superseded to 931-1044)

$

$

Not available

17

MTD 17410

Grille Ass'y.

Variations

MTD 17410-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17410-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17410-0629

No Longer Available GRILLE ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 17410-0638

No Longer Available GRILLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17410-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17410-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17410-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17410-0667

No Longer Available GRILLE ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17410-0668

No Longer Available GRILLE ASM - MOSS GREEN (0668)

$

$

Not available

MTD 17410-0671

No Longer Available GRILLE ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 17410-0674

No Longer Available GRILLE ASM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17410-0677

No Longer Available GRILLE ASM - GRASS GREEN (0677)

$

$

Not available

MTD 17410-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

MTD 17410-0691

No Longer Available GRILLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

18

MTD 731-1046

Dash Ass'y.

$

$

Not available

19

MTD 746-3022B

Choke Control
(Superseded to 946-3022B)

$36.99

$

In Stock, only 4 left!

0

20

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

23

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62n Lg.

$3.49

$

Usually ships in 3-6 days

0

25

MTD 710-0599

Hex Wash. Hd. Scr. 1/4" x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

26

MTD 731-1069

7-Speed Index Brkt.
(Superseded to 931-1746)

$

$

Not available

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

32

MTD 710-0726

Hex Hd. Rolling Scr. 5/16-24 x ,7sn Lg.

$3.99

$

In Stock, Qty 20+

0

34

MTD 720-0218

Shitt Knob

$18.99

$

In Stock, only 1 left!

0

35

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

36

MTD 736-0242

Bell-Wash. .34" I.D. x 37"

$3.99

$

In Stock, Qty 20+

0

38

MTD 725-1058

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

44

MTD 726-0201

Speed Nut 5/16" I.D.

$6.49

$

In Stock, Qty 20+

0

45

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O D

$3.99

$

In Stock, Qty 13

0

46

MTD 720-0166

Ball Knob Brake

$

$

Not available

50

MTD 17293A

Dash Support Brkt.-R.H.
(Superseded to 17293B-0637)

$

$

Not available

55

MTD 17399

Transmission Cover Ass'y.

$

$

Not available

63

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

64

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

65

MTD 17458

Side Panel Ass'y.-R.H.
(Superseded to 16725)

Variations

MTD 17458-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 17459

Side Panel Ass'y.-L.H.
(Superseded to 17309B)

Variations

MTD 17459-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17459-0499

No Longer Available PANEL - CUB BEIGE (0499)

$

$

Not available

MTD 17459-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17459-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17459-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17459-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17459-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17459-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17459-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17459-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17459-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17459-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 17459-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17459-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

69

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 15

0

70

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5n Lg.

$4.49

$

In Stock, Qty 12

0

71

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$16.99

$

In Stock, Qty 7

0

72

MTD 17330

Rear Fender

Variations

MTD 17330-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17330-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17330-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17330-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17330-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17330-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

73

MTD 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

75

MTD 710-0167

Carriage Bolt t/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

76

MTD 725-0201

Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

77

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.49

$

In Stock, only 3 left!

0

78

MTD 17294A

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)

$

$

Not available

79

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

80

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

81

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

82

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

83

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

84

MTD 16985

PTO Rod

$

$

Not available

85

MTD 736-0173

Fl-Wash. .281" I.D. x 73n

$3.99

$

In Stock, Qty 10

0

86

MTD 16984

PTO Lever

$

$

Not available

87

MTD 12476

Deck Clutch Control Brkt.

$

$

Currently unavailable

88

MTD 710-0102

Hex Bolt 1/4-20 x 2 Sn Lg.
(Superseded to 710-1122)

$6.99

$

Usually ships in 3-6 days

0

89

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$3.99

$

In Stock, only 1 left!

0

90

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$28.99

$

In Stock, only 2 left!

0

91

MTD 712-0121

Hex Nut #10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

92

MTD 16983

PTO Bracket

$

$

Not available

93

MTD 710-0708

Self Clinching Stud 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

94

MTD 16989

Engine Baffle

$

$

Currently unavailable

95

MTD 731-0511

Trim Strip lon Lg.

$3.49

$

Usually ships in 3-6 days

0

96

MTD 751-0474

Muffler

$

$

Not available

97

MTD 736-0170

Spec. L-Wash. 5/16n I.D.

$5.99

$

Usually ships in 3-6 days

0

98

MTD 16934

Front Heat Shield

$

$

Not available

99

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0
