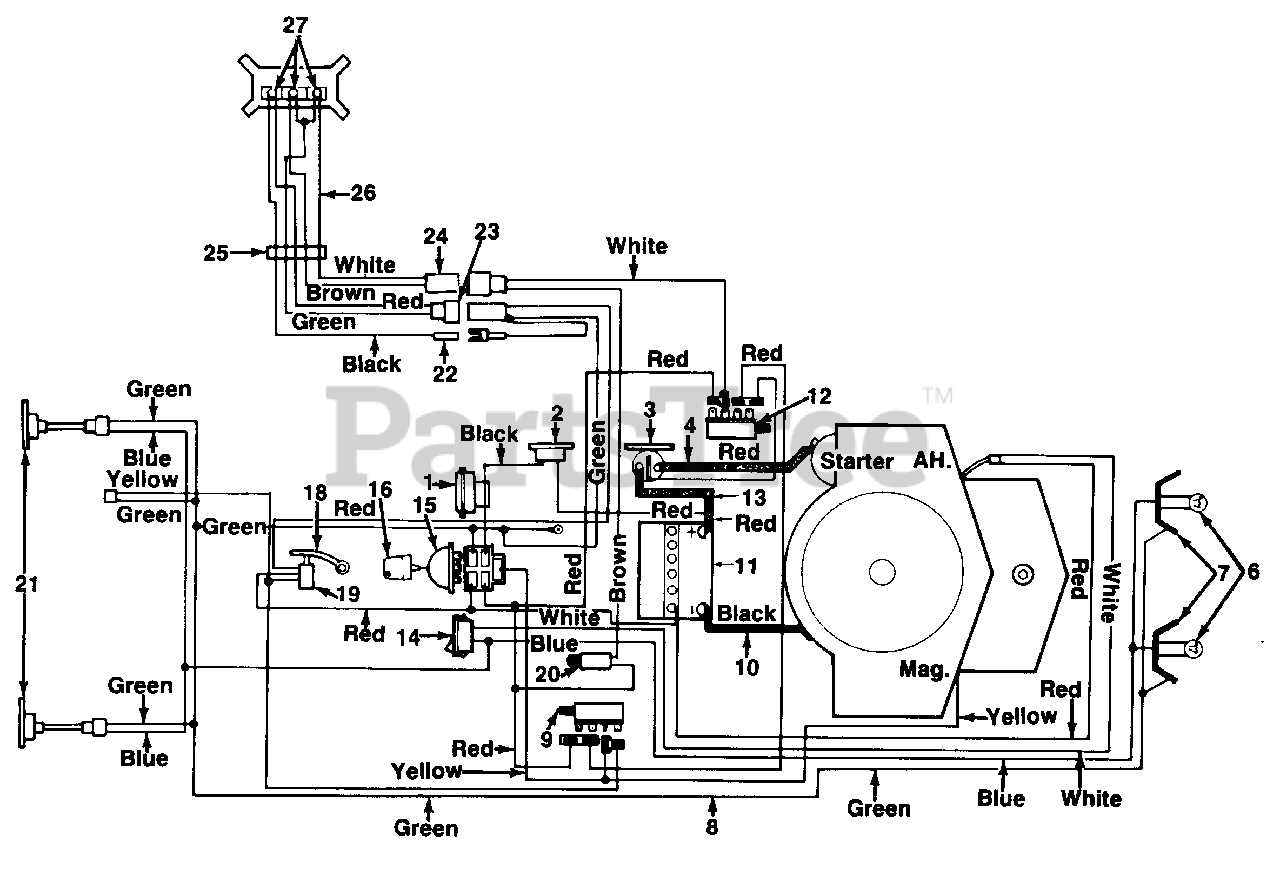

149-824-000 - MTD Garden Tractor (1989) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

2

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

3

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

4

MTD 725-0561

Wire
(Superseded to 629-0705)

$

$

Not available

6

MTD 725-0963

Bulb
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

7

MTD 725-1058A

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

8

MTD 725-1363

Wire Harness

$

$

Currently unavailable

9

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$28.99

$

In Stock, only 2 left!

0

10

MTD 725-0996

6 Ga. Black Wire

$

$

Not available

11

MTD 725-0453

Battery 12V

$

$

Not available

12

MTD 725-0842A

Safety Switch

$

$

Not available

13

MTD 725-0563

Wire

$

$

Currently unavailable

14

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

15

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

16

MTD 725-1341B

Ignition Key

$9.99

$

In Stock, only 3 left!

0

18

MTD 732-0405

Spring Lever

$

$

Currently unavailable

19

MTD 725-1197

Safety Switch

$

$

Currently unavailable

20

MTD 725-0277

Safety Switch

$

$

Not available

21

MTD 725-3018

Taillight

$

$

Currently unavailable

22

MTD 729-0139

Connector

$

$

Not available

23

MTD 729-0166

Connector

$

$

Not available

24

MTD 729-0132

Connector

$

$

Not available

25

MTD 729-0204

Clamp

$

$

Currently unavailable

26

MTD 725-1364

Wire Harness

$

$

Not available

27

MTD 725-1365

Bulb
(Superseded to 925-1365)

$9.99

$

In Stock, only 4 left!

0
