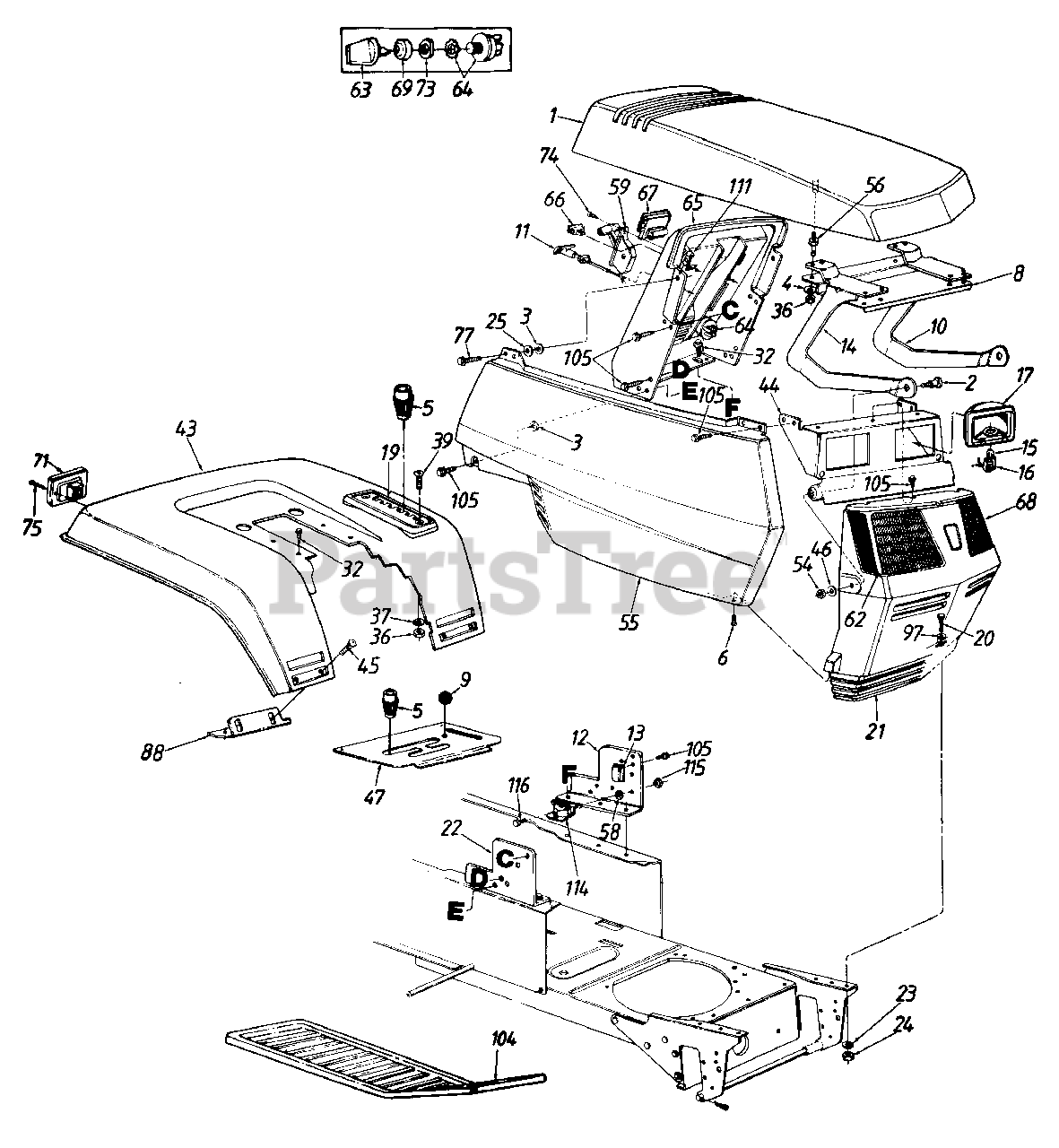

149-824-000 - MTD Garden Tractor (1989) Parts Parts Diagram

Garden Tractor

Parts Parts Diagram

  • Title

1

MTD 16823

Hood

Variations

MTD 16823-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16823-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 16823-0638

No Longer Available HOOD MTD R - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$6.99

$

In Stock, Qty 8

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$3.99

$

In Stock, Qty 11

0

4

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 13

0

5

MTD 720-0218

Shift Knob

$18.99

$

In Stock, only 1 left!

0

6

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x 5n Lg.

$4.49

$

In Stock, only 4 left!

0

8

MTD 16808

Hood Reinforcement

$

$

Not available

9

MTD 720-0166

Ball Knob-Brake

$

$

Not available

10

MTD 17271

Hood Hinge-L.H.

$

$

Not available

11

MTD 746-3022B

Choke Control
(Superseded to 946-3022B)

$36.99

$

In Stock, only 4 left!

0

12

MTD 17294

Dash Support Brkt.-L.H.

$

$

Not available

13

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

14

MTD 17270

Hood Hinge-R.H.

$

$

Currently unavailable

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

16

MTD 725-1058

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

19

MTD 731-1069

Speed Control Index Brkt.
(Superseded to 931-1746)

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

21

MTD 731-0935A

Grille

Variations

MTD 731-0935A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 731-0935A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 731-0935A-0629

No Longer Available GRILLE - SILVER FLAKE (0629)

$

$

Not available

MTD 731-0935A-0638

No Longer Available GRILLE-MTD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

22

MTD 17293

Dash Support Bracket-R.H.
(Superseded to 17293B-0637)

$

$

Not available

23

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

37

MTD 736-0329

L-Wash. 1/4n I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

39

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62n Lg.

$3.49

$

Usually ships in 3-6 days

0

43

MTD 17330

Rear Fender

Variations

MTD 17330-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17330-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17330-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17330-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17330-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17330-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-0167

Carriage Bolt 1/4-20 x ,50n Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.49

$

Usually ships in 3-6 days

0

47

MTD 17401

Transmission Panel

$

$

Not available

54

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

55

MTD 17448

Side Cover-R.H.

$

$

Not available

MTD 17447

Side Cover-L.H.

Note: (Not Shown)

$

$

Not available

56

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

58

MTD 736-0222

Ext. L-Wash. 114" I.D.

$5.49

$

In Stock, only 3 left!

0

59

MTD 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

62

MTD 731-0948

Lens-R.H.
(Superseded to 931-0948)

$34.99

$

In Stock, only 1 left!

0

63

MTD 725-1341B

Ignition Key

$9.99

$

In Stock, only 3 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

65

MTD 731-0958

Dash Panel

$

$

Not available

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

68

MTD 731-0949

Lens-L.H.
(Superseded to 931-0949)

$

$

Not available

69

MTD 725-1347

Ignition Switch Cap

$4.49

$

In Stock, only 4 left!

0

MTD 757-0350

Seat Ass'y.
(Superseded to 957-0350)

$547.99

$

Usually ships in 3-6 days

0

71

MTD 725-3018

Taillight Ass'y.

$

$

Currently unavailable

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 17406

Fender Bracket-R.H.
(Superseded to 17406-0637)

Variations

MTD 17406-0637

Fender Bracket-R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17407

Fender Bracket-L.H.

Variations

MTD 17407-0637

No Longer Available BRKT-FENDE - POWDER BLACK (0637)

$

$

Not available

$

$

97

MTD 736-0159

Fl-Wash...344" I.D.

$3.99

$

In Stock, Qty 20+

0

104

MTD 731-1051

Foot Pad

$

$

Not available

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

114

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

115

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

116

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0
