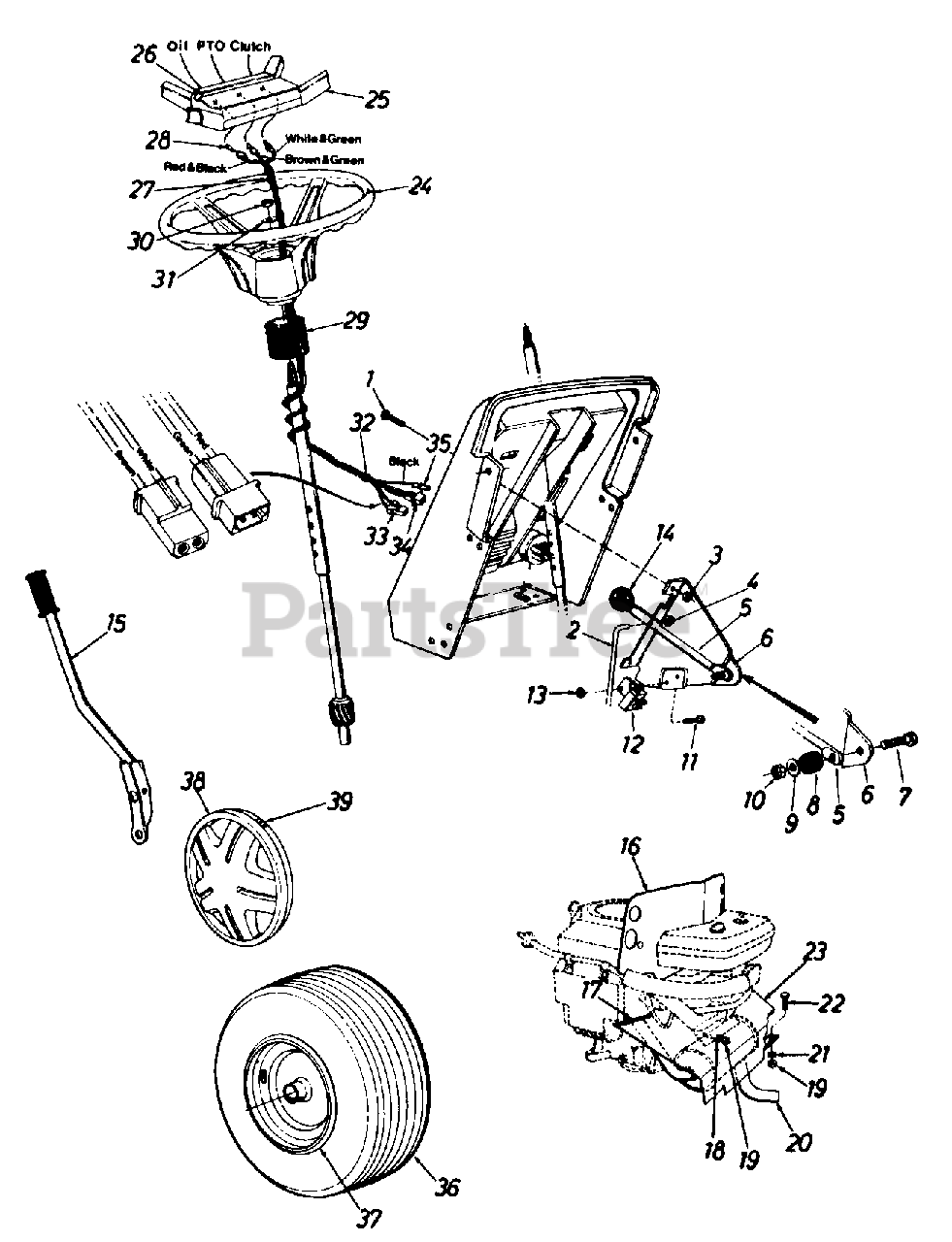

149-824-000 - MTD Garden Tractor (1989) Parts Parts Diagram

Garden Tractor

Parts Parts Diagram

  • Title

1

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

2

MTD 747-0708

Deck Control Rod

$

$

Not available

3

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

4

MTD 726-0106

Push Cap

$3.99

$

Usually ships in 3-6 days

0

5

MTD 747-0513

PTO Lever

$

$

Not available

6

MTD 13950A

Deck Clutch Cont. Brkt.

$

$

Not available

7

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

8

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

9

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$3.99

$

In Stock, Qty 10

0

10

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

11

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$3.99

$

In Stock, only 1 left!

0

12

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$28.99

$

In Stock, only 2 left!

0

13

MTD 712-0121

Hex Nut #10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

14

MTD 720-0165

Knob-Blade Clutch
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

15

MTD 17282

Lift Handle Ass'y.

$

$

Not available

16

MTD 17319

Top Heat Shield

$

$

Not available

17

MTD 731-0511

Trim Strip 10" Lg.

$3.49

$

Usually ships in 3-6 days

0

18

MTD 736-0170

L-Wash. 5/16n I.D.

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

19

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 751-0474

Muffler

$

$

Not available

21

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

23

MTD 16934

Front Heat Shield

$

$

Not available

24

MTD 731-0806A

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

25

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

$

$

Not available

26

MTD 777-7993

Steering Wheel Insert Label

$

$

Currently unavailable

27

MTD 725-1364

Wire Harness

Note: (Incl. Ref. 28)

$

$

Not available

28

MTD 725-1365

Bulb
(Superseded to 925-1365)

$9.99

$

In Stock, only 4 left!

0

29

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

30

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, Qty 7

0

31

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 729-0204

Clamp

$

$

Currently unavailable

33

MTD 729-0139

Connector

$

$

Not available

34

MTD 729-0166

Connector

$

$

Not available

35

MTD 729-0132

Connector

$

$

Not available

36

MTD 734-1569

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-0275

Tire Only

Variations

MTD 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)

$

$

Not available

MTD 734-0275-0905

TIRE-16X6.5 - Duro (0905)

$

$

Not available

MTD 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

37

MTD 734-1567

Rim Only

$

$

Not available

38

MTD 734-1504

Hub Cap
(Superseded to 734-1615A)

Note: (Front Wheel)

$30.99

$

Usually ships in 3-6 days

0

MTD 734-1505

Hub Cap

Note: (Rear Wheel)

$

$

Not available

39

MTD 727-0425

Spring Clip
(Superseded to 927-0425A)

$

$

Not available
