149 R (126-149D100) - Cub Cadet Walk-Behind Mower (1996) Rotary Mower Parts Diagram

Walk-Behind Mower

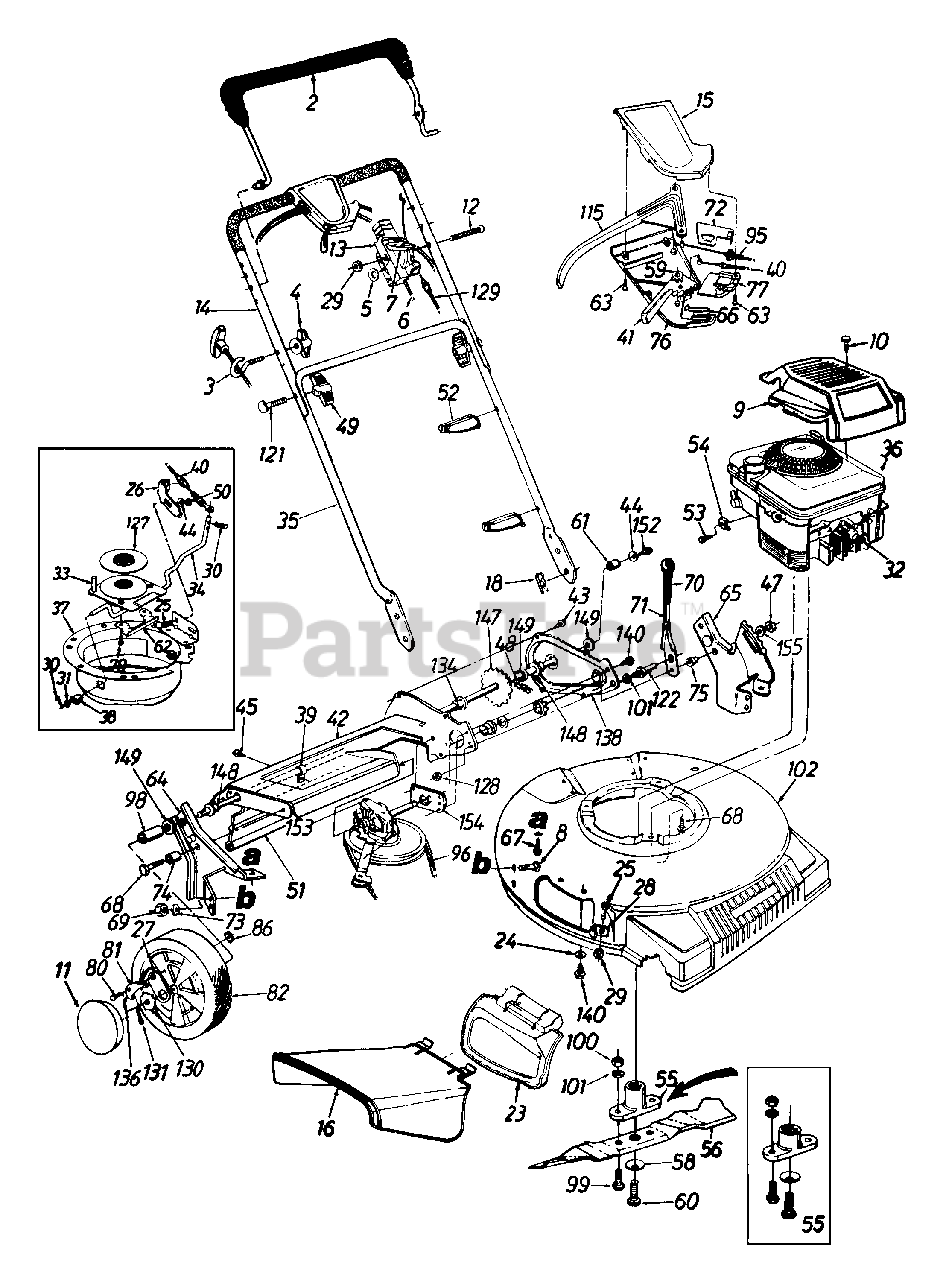

Rotary Mower Parts Diagram

  • Title

2

Cub Cadet 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$69.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1205

Rope Guide

$4.49

$

In Stock, Qty 16

0

4

Cub Cadet 720-0279

Handle Knob 1/4-20 Thd.

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0501

Curved Spring Wash..66" I.D.
(Superseded to 936-0501)

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 746-0843

Throttle Wire - 55" Lg.
(Superseded to 946-0671A)

$14.99

$

In Stock, Qty 5

0

7

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 751B281440

Engine Shroud

$

$

Not available

10

Cub Cadet 710-1256

Hi-Lo Screw #10 x 1.25" Lg.

$6.49

$

In Stock, only 2 left!

0

11

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 6

0

12

Cub Cadet 710-0605

Oval C-Sunk Mach. Scr.

$4.99

$

In Stock, only 2 left!

0

13

Cub Cadet 646-0875

Throttle Body
(Superseded to 946-0875)

$9.99

$

In Stock, only 2 left!

0

14

Cub Cadet 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

749-0539B-0637

Cub Cadet 749-0539B-0637

USE 749-0539C-0637 HANDLE-UPP - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

16

Cub Cadet 731-1409

Side Chute Deflector
(Superseded to 731-1409B)

$29.99

$

In Stock, Qty 5

0

18

Cub Cadet 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 10

0

23

Cub Cadet 682-7002

Mulch Plug Ass'y. Comp.

$

$

Not available

24

Cub Cadet 736-0270

Bell-Wash..265" I.D. x .75" O.D.

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 15

0

26

Cub Cadet 17070

Adjustable Cable Bracket
(Superseded to 17070-0637)

Variations

17070-0637

Cub Cadet 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 16855

Pawl Plate

$6.99

$

In Stock, Qty 11

0

28

Cub Cadet 782-7009

Chute Stop Bracket

Variations

782-7009-0637

Cub Cadet 782-7009-0637

CHUTE BRACKET STOP - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, only 2 left!

0

30

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0278

FI-Wash..328" I.D. x .68"

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 735-0639

Spark Plug Insulator

$

$

Not available

33

Cub Cadet 656-0612

Pulley Ass'y.
(Superseded to 956-0612)

$146.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-0882A

Shift Rod

$

$

Not available

35

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

749-0928-0637

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$35.99

$

In Stock, only 2 left!

0

$35.99

$

In Stock, only 2 left!

0

36

Engine - 5.5 H.P.

$

$

Not available

37

Cub Cadet 682-7514

Housing Ass'y.

$

$

Not available

38

Cub Cadet 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

39

UNKNOWN

$

$

Not available

40

Cub Cadet 746-0706

6 Spd. Cable

$

$

Not available

41

Cub Cadet 731-0924

6 Spd. Shift Lever

$

$

Not available

42

Cub Cadet 682-7513

Chain - Axle Ass'y.
(Superseded to 982-7513)

Variations

682-7513-0480

Cub Cadet 682-7513-0480

CHAIN AXLE ASSEMBLY - BRILLIANT GREEN (0480)

$

$

Not available

682-7513-0483

Cub Cadet 682-7513-0483

USE 982-7513-0637 AXLE ASSY-C - CHARCOAL GRAY (0483)

$

$

Not available

682-7513-0498

Cub Cadet 682-7513-0498

USE 982-7513-0637 AXLE ASSY-C - OLD CUB YELLOW (0498)

$

$

Not available

682-7513-0629

Cub Cadet 682-7513-0629

USE 982-7513-0629 AXLE ASSY-C - SILVER FLAKE (0629)

$

$

Not available

682-7513-0637

Cub Cadet 682-7513-0637

USE 982-7513-0637 AXLE ASSY-C - POWDER BLACK (0637)

$

$

Not available

682-7513-0638

Cub Cadet 682-7513-0638

CHAIN AXLE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

682-7513-0640

Cub Cadet 682-7513-0640

CHAIN AXLE ASSEMBLY - CO-OP GREEN (0640)

$

$

Not available

682-7513-0648

Cub Cadet 682-7513-0648

USE 982-7513-0637 AXLE ASSY-C - TECH GRAY (0648)

$

$

Not available

682-7513-0662

Cub Cadet 682-7513-0662

CHAIN AXLE ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

682-7513-0665

Cub Cadet 682-7513-0665

CHAIN AXLE ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

45

UNKNOWN

$

$

Not available

47

Cub Cadet 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$

$

Not available

48

Cub Cadet 713-0361

#48 Chain .500" Pitch x 38 Links
(Superseded to 913-0361)

$

$

Not available

49

Cub Cadet 720-0241

Hand Knob
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 3 left!

0

51

Cub Cadet 731-1483

Rear Flap 4.8" x 17.5" Lg.

$

$

Not available

52

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

55

Cub Cadet 753-0519

Blade Adapter Kit

$

$

Not available

56

Cub Cadet 742-0721

21" Mulching Blade
(Superseded to 942-0721)

$34.99

$

Usually ships in 3-6 days

0

?57

Cub Cadet 750-0968

Spacer.885" I.D. x 1" O.D.
(Superseded to 950-0968)

$5.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-0452

Bell-Wash..39" I.D. x 1.14" O.D.

$4.99

$

In Stock, only 2 left!

0

59

Cub Cadet 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

60

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5" Lg. (Gr. 8)

$8.49

$

In Stock, Qty 8

0

61

Cub Cadet 748-0190

Spacer .513" i.D.

$6.99

$

In Stock, Qty 6

0

62

Cub Cadet 782-7563

Bracket - Shift Plate
(Superseded to 782-7563-0637)

Variations

782-7563-0637

Cub Cadet 782-7563-0637

BRACKET-SHIFT PLAT - POWDER BLACK (0637)

$

$

Not available

$

$

63

Cub Cadet 710-0841

C-Sunk Tap Scr. #10 x .75" Lg.

$4.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 682-3006A

R.H. Handle Wheel Brkt. Ass'y.

Variations

682-3006A-0483

Cub Cadet 682-3006A-0483

BRACKET ASSEMBLY-WHL-RCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

682-3006A-0498

Cub Cadet 682-3006A-0498

BRACKET ASSEMBLY-WHL-R(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

682-3006A-0629

Cub Cadet 682-3006A-0629

BRACKET ASSEMBLY-WHL-R(SILVER FLAKE) - SILVER FLAKE (0629)

$

$

Not available

682-3006A-0637

Cub Cadet 682-3006A-0637

BRACKET ASSEMBLY-WHL-R(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

682-3006A-0638

Cub Cadet 682-3006A-0638

BRACKET ASSEMBLY-WHL-R(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

682-3006A-0662

Cub Cadet 682-3006A-0662

BRACKET ASSEMBLY-WHL-R(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

682-3006A-0665

Cub Cadet 682-3006A-0665

BRACKET ASSEMBLY-WHL-R(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

Cub Cadet 682-3007A

L.H. Handle Wheel Brkt. Ass'y.

Variations

682-3007A-0483

Cub Cadet 682-3007A-0483

BRACKET ASSEMBLY-WHL-LCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

682-3007A-0498

Cub Cadet 682-3007A-0498

BRACKET ASSEMBLY-WHL-L(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

682-3007A-0637

Cub Cadet 682-3007A-0637

BRACKET ASSEMBLY-WHL-L(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

682-3007A-0638

Cub Cadet 682-3007A-0638

BRACKET ASSEMBLY-WHL-L(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

66

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.99

$

In Stock, only 4 left!

0

67

Cub Cadet 710-0603

Hex B-Tap Scr 5/16-18

$5.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.99

$

In Stock, Qty 20+

0

69

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 720-0223

Grip

$15.99

$

In Stock, only 4 left!

0

71

Cub Cadet 732-0725

Height Adj. Lever

$

$

Not available

72

Cub Cadet 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 736-0242

Bell-Wash 5/16" I.D

$4.99

$

In Stock, Qty 20+

0

74

Cub Cadet 750-0736

Spacer .383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 750-0624

Shld. Spacer .5" Dia

$

$

Not available

76

Cub Cadet 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

77

Cub Cadet 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

?78

Cub Cadet 736-0526

Wave Wash..88" I D. x 1.38" O.D.

$7.49

$

Usually ships in 3-6 days

0

?79

Cub Cadet 710-0653

Hex Wash Hd Tap Scr. 1/4-20 x .38" Lg

$4.99

$

In Stock, only 2 left!

0

80

Cub Cadet 738-0137

Shld. Scr..342" Dia. x .268

$

$

Not available

81

Cub Cadet 748-0188B

Pawl - R H.
(Superseded to 948-0188B)

$

$

Not available

Cub Cadet 748-0381

Pawl - L.H.

Note: (Not Shown)

$12.99

$

In Stock, only 2 left!

0

82

Cub Cadet 734-1514B

Wheel Ass'y. Comp.
(Superseded to 734-1826)

$35.99

$

In Stock, only 2 left!

0

Cub Cadet 741-0486B

Wheel Bearing

$

$

Not available

86

Cub Cadet 712-0414

Weld Top L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

95

Cub Cadet 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$42.99

$

In Stock, only 2 left!

0

96

Cub Cadet 754-0343

"V"-Belt
(Superseded to 954-0343)

$31.99

$

In Stock, only 2 left!

0

98

Cub Cadet 711-0313

Sleeve .526" I. D

$

$

Not available

99

Cub Cadet 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$5.49

$

Usually ships in 3-6 days

0

100

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, only 2 left!

0

101

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 11

0

102

Cub Cadet 782-0027

21" Deck Ass'y.

Variations

782-0027-0483

Cub Cadet 782-0027-0483

21" DECK ASS'Y. - CHARCOAL GRAY (0483)

$

$

Not available

782-0027-0629

Cub Cadet 782-0027-0629

21" DECK ASS'Y. - SILVER FLAKE (0629)

$

$

Not available

782-0027-0638

Cub Cadet 782-0027-0638

21" DECK ASS'Y. - MTD/TROY-BILT RED (0638)

$

$

Not available

782-0027-0665

Cub Cadet 782-0027-0665

21" DECK ASS'Y. - YARDMAN GREEN (0665)

$

$

Not available

$

$

115

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$16.99

$

In Stock, Qty 6

0

121

Cub Cadet 710-1174

Curved Hd Bolt 5/16-18 x 2" Lg.

$7.99

$

In Stock, Qty 10

0

122

Cub Cadet 711-0805

Shld. Pin 1.43" Lg

$

$

Not available

127

UNKNOWN

$

$

Not available

128

Cub Cadet 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 11

0

129

Cub Cadet 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$22.99

$

In Stock, only 1 left!

0

130

Cub Cadet 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1"

$4.49

$

In Stock, only 2 left!

0

134

Cub Cadet 741-0522

Hex Flange Bearing

$

$

Not available

136

Cub Cadet 10622B

Spring - Nylon

$5.49

$

In Stock, only 1 left!

0

138

Cub Cadet 682-7506

Chain Cover Ass'y.

Variations

682-7506-0483

Cub Cadet 682-7506-0483

COVER ASSEMBLY-CHAIN CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

682-7506-0498

Cub Cadet 682-7506-0498

COVER ASSEMBLY-CHAIN (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

682-7506-0637

Cub Cadet 682-7506-0637

COVER ASSEMBLY-CHAIN (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

682-7506-0638

Cub Cadet 682-7506-0638

COVER ASSEMBLY-CHAIN (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

140

Cub Cadet 710-0599

Hex TT-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

147

Cub Cadet 738-0864

Rear Shaft Ass'y. 21.44" Lg.
(Superseded to 938-0864)

$

$

Not available

148

Cub Cadet 741-0324

Hex Flange Brg..506" I.D.
(Superseded to 741-0324A)

$8.49

$

Usually ships in 3-6 days

0

149

Cub Cadet 736-0160

Fl-Wash. 531" I.D. x.930"

$4.49

$

Usually ships in 3-6 days

0

152

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

153

Cub Cadet 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

Cub Cadet 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

16500A-0637

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

Cub Cadet 736-0300

Fl-Wash. 385" I.D. x .87" O.D.

$4.99

$

In Stock, Qty 18

0
