149 R (126-149D100) - Cub Cadet Walk-Behind Mower Engine (1996) Carburetor, Rewind Starter Parts Diagram

Walk-Behind Mower Engine

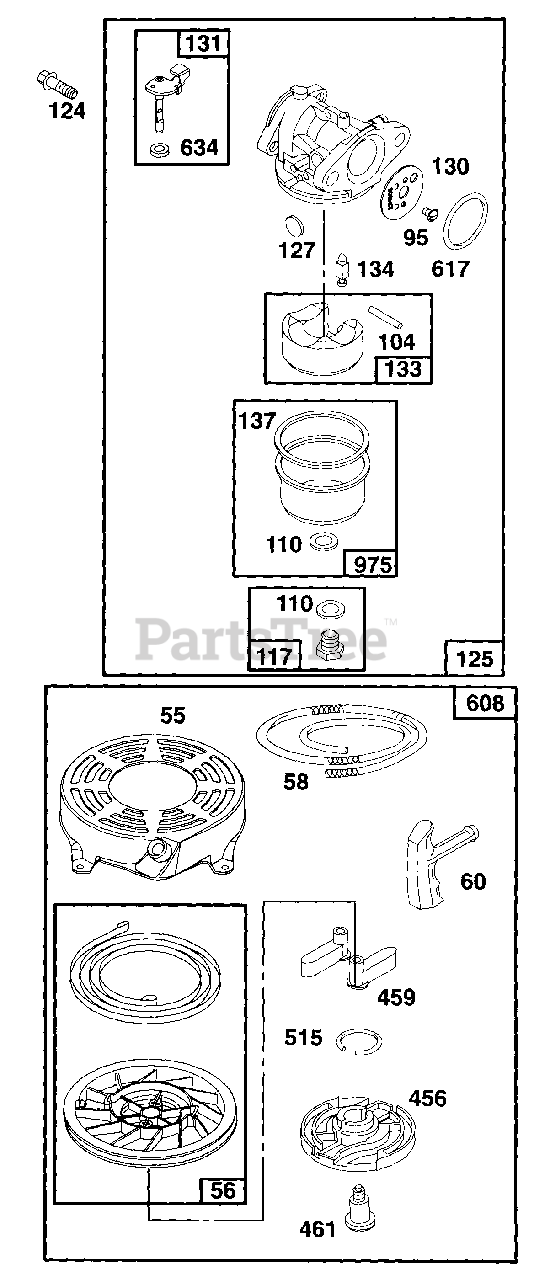

Carburetor, Rewind Starter Parts Diagram

  • Title

55

Cub Cadet BS-497440

Housing-Rewind Starter
(Superseded to BS-691421)

$64.99

$

In Stock, only 1 left!

0

56

Cub Cadet BS-498144

Pulley-Rewind Starter

$19.99

$

In Stock, only 2 left!

0

58

Cub Cadet BS-280399

Rope-Rewind Starter
(Superseded to BS-280399S)

Note: Cut to Required Length.

$5.99

$

In Stock, Qty 19

0

60

Cub Cadet BS-281434

Grip-Rewind Starter
(Superseded to BS-281434S)

$3.99

$

In Stock, Qty 10

0

95

Cub Cadet BS-94098

Screw-Round Head
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

Note: Included in Carburetor Kit - Part No. BS-498260.

$3.99

$

In Stock, only 1 left!

0

110

Gasket-Sealing

Note: (Sold in Kit Only). Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-498260.

$

$

Not available

117

Cub Cadet BS-497315

Jet-Main

$13.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-497348

Jet-Main (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

124

Cub Cadet BS-94840

Screw-Carburetor Mounting
(Superseded to BS-692524)

$

$

Not available

125

Cub Cadet BS-498170

Carburetor
(Superseded to BS-799868)

$63.99

$

Usually ships in 2-12 days

0

127

Plug-Welch

Note: (Sold in Kit Only). Included in Carburetor Kit - Part No. BS-498260.

$

$

Not available

130

Cub Cadet BS-224908

Valve-Throttle
(Superseded to BS-691203)

$9.49

$

In Stock, only 1 left!

0

131

Cub Cadet BS-493267

Shaft-Throttle

$16.99

$

In Stock, only 1 left!

0

133

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 8

0

134

Cub Cadet BS-398188

Valve-Inlet

Note: (Includes Seat). Included in Carburetor Kit - Part No. BS-498260.

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl

Note: (Sold in Kit Only). Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-498260.

$

$

Not available

456

Cub Cadet BS-281503

Retainer
(Superseded to BS-692299)

$4.99

$

In Stock, Qty 20+

0

459

Cub Cadet BS-281505

Pawl-Starter
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 20+

0

461

Cub Cadet BS-94943

Screw-Shoulder
(Superseded to BS-691696)

$11.99

$

In Stock, only 4 left!

0

515

Cub Cadet BS-263073

Spring-Retainer
(Superseded to BS-691855)

$4.49

$

In Stock, Qty 7

0

608

Cub Cadet BS-497680

Starter Assy.-Rewind

Note: Note: Includes BS-94904 Hex. Screws and BS-94908 Hex. Nuts (4 Each)

$49.99

$

In Stock, only 3 left!

0

617

Cub Cadet BS-270344

Seal-Intake Manifold
(Superseded to BS-270344S)

Note: Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-498260.

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft

Note: (Sold in Kit Only). Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-498260.

$

$

Not available

975

Cub Cadet BS-493640

Bowl Assembly-Carburetor
(Superseded to BS-796611)

$6.49

$

In Stock, Qty 16

0

Cub Cadet BS-94904

Hex. Screws
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 18

0

Cub Cadet BS-94908

Hex. Nuts
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet BS-490937

Carburetor Gasket Set
(Superseded to BS-498260)

Note: Includes items 110, 137, 617 & 634

$16.99

$

In Stock, Qty 20+

0

Cub Cadet BS-498260

Carburetor Kit

Note: Includes items 104, 110, 127, 134, 137, 617 & 634

$16.99

$

In Stock, Qty 20+

0
