14AA80TP711 - Troy-Bilt Big Red Horse Garden Tractor (2007) Deck 50 Parts Diagram

Big Red Horse Garden Tractor

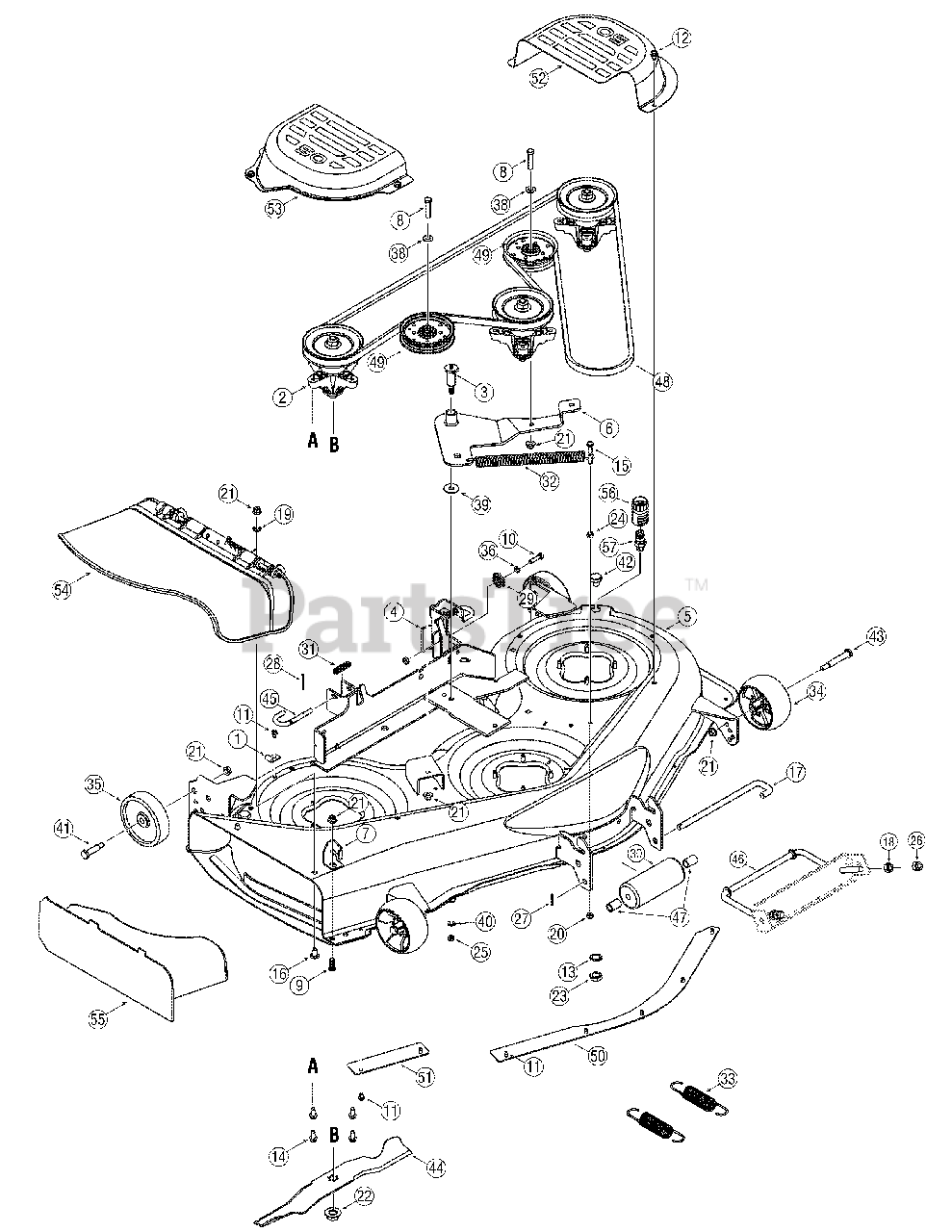

Deck 50 Parts Diagram

  • Title

1

Troy-Bilt 16606

Hook, Retainer
(Superseded to 96606)

$6.99

$

In Stock, Qty 14

0

2

Troy-Bilt 918-04126A

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 736-0315

Flat Washer:.760 x 1.50 x .120

Note: Not shown

$6.49

$

In Stock, Qty 7

0

2

Troy-Bilt 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, Qty 14

0

2

Troy-Bilt 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$20.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 748-0160A

Spacer:.790 ID x 1.25OD x .175

Note: Not shown

$6.49

$

In Stock, Qty 9

0

2

Troy-Bilt 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 19

0

2

Troy-Bilt 750-1349A

Spacer:.79 x 1.82 x .55

Note: Not shown

$12.99

$

In Stock, Qty 5

0

2

Troy-Bilt 756-04216

Deck Pulley 5.39 Dia

Note: Not shown

$30.99

$

In Stock, Qty 14

0

3

Troy-Bilt 638-04012A

Shoulder Bolt

$20.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 683-0254B

Hanger Bracket Assembly

Variations

Troy-Bilt 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 9

0

Troy-Bilt 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 9

0

Troy-Bilt 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$46.99

$

In Stock, Qty 9

0

Troy-Bilt 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$46.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 683-04109B

50-inch Deck Assembly

Variations

Troy-Bilt 683-04109B-4008

DECK ASSY - WINE RED (4008)

$725.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04109B-0637

DECK ASM-50" SD GT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-04109B-0650

DECK ASM-50" SD GT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-04109B-0716

DECK ASM-50" SD GT - CUB YELLOW-99 (0716)

$

$

Not available

$648.99

$

Usually ships in 3-6 days

0

6

MTD 683-04239

Idler Assembly, 50" Deck

Variations

Troy-Bilt 683-04239-0637

50" DECK IDLER ASSEMBLY(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-04239-4008

50" DECK IDLER ASSEMBLY(WINE RED) - WINE RED (4008)

$

$

Not available

$

$

7

Troy-Bilt 703-3279

Chute Stop

Variations

Troy-Bilt 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$37.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$37.99

$

In Stock, only 3 left!

0

$37.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 710-0347

Screw, 3/8-16, 1.75

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-04095

Screw, 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0599

Screw, 1/4-20 x 0.5

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0607

Screw, 5/16-18 x .75

$6.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0225

Washer, Lock, 5/8 Internal Tooth

$3.99

$

In Stock, Qty 11

0

14

Troy-Bilt 710-1260A

Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 19

0

16

Troy-Bilt 710-3178

Screw, Carriage, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 711-1737

Roller Pin

$23.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0206

Hex Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-0229

Push Nut Retainer

$3.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-04063

Nut, Nylon Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-0417A

Nut, Hex, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 712-0641

Nut, Hex, M16-1.5

$5.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-3019

Hex Nut, 7/16-14

$6.49

$

In Stock, only 4 left!

0

26

Troy-Bilt 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 714-0111

Pin, Cotter, 3/32 x 1.00

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 714-0470

Pin, Cotter, 1/8 x 1.25

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 731-3005

Roller

$26.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 732-0306A

Spring, Compression, .531 x 1.75
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 732-0459B

Spring, Extension, .94 x 6.74
(Superseded to 732-0459C)

$17.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 732-0934

Spring, Extension, 1.5 x 5.99

$10.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 734-04155

Deck Wheel, 5.0

$19.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 734-0973

Deck Wheel, 5.0

$12.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 736-0225

Washer, Lock, 5/8"

$3.99

$

In Stock, Qty 11

0

38

Troy-Bilt 736-0300

Washer, Flat, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 736-0406

Washer, Flat, .442 x 1.38 x .060
(Superseded to 936-0406)

$6.49

$

In Stock, Qty 11

0

40

Troy-Bilt 736-0407

Washer, Bell, .45 x 1.00 x .062

$3.99

$

In Stock, Qty 7

0

41

Troy-Bilt 738-0373

Shoulder Screw
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 738-04146

Bolt, Plug, M16 x 1.5

$8.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 738-3056

Shoulder Screw
(Superseded to 938-3056)

$8.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 742-04053B

Blade, 17.90
(Superseded to 942-04053C)

$28.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 747-1116

Rod, Deck Release .375 Dia.

$11.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 747-1324

Rod, Deck Adjust

$53.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 750-0151

Spacer, .550 x .750 x 1.125
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 754-04107

Belt, V-Type, Aramid
(Superseded to 954-04107)

$141.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 756-04129

Pulley, Idler, 3.5"
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 783-04414A

Deck Skirt, Center

Variations

Troy-Bilt 783-04414A-4021

Center Skirt for 50" Deck, Yellow - CUB YELLOW 2 (4021)

$32.99

$

In Stock, Qty 5

0

Troy-Bilt 783-04414A-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-0606

Center Skirt for 50" Deck, Orange - MAJESTIC ORANGE (0606)

$32.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04414A-0716

Center Deck Skirt, 50" - CUB YELLOW-99 (0716)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-0665

SKIRT-CENTER 50" - YARDMAN GREEN (0665)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-0691

SKIRT-CENTER 50" - BLACK JACK (0691)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4008

SKIRT-CENTER 50" - WINE RED (4008)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4033

Center Skirt for 50" Deck, Flint - FLINT MICA (4033)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4044

SKIRT-CENTER 50" - CRAFTSMAN RED (4044)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414A-4028

SKIRT-CENTER 50" - SEARS YELLOW (4028)

$32.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 783-04415

Deck Skirt, RH

Variations

Troy-Bilt 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$28.99

$

In Stock, Qty 5

0

Troy-Bilt 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$28.99

$

In Stock, Qty 5

0

Troy-Bilt 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$28.99

$

In Stock, Qty 6

0

Troy-Bilt 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$28.99

$

In Stock, Qty 6

0

Troy-Bilt 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$28.99

$

In Stock, Qty 6

0

Troy-Bilt 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$28.99

$

In Stock, Qty 6

0

Troy-Bilt 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$28.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$28.99

$

In Stock, Qty 6

0

Troy-Bilt 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 783-05280

LH Belt Cover

Variations

Troy-Bilt 783-05280-0606

COVER-BELT LH - MAJESTIC ORANGE (0606)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-0637

COVER-BELT LH - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-0650

COVER-BELT LH - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-0691

COVER-BELT LH - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-4028

COVER-BELT LH - SEARS YELLOW (4028)

$81.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05280-4008

COVER-BELT LH - WINE RED (4008)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 783-05281

RH Belt Cover

Variations

Troy-Bilt 783-05281-0691

COVER BELT RH - BLACK JACK (0691)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-0606

COVER BELT RH - MAJESTIC ORANGE (0606)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-0637

COVER BELT RH - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-0638

COVER BELT RH - MTD/TROY-BILT RED (0638)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-0650

COVER BELT RH - RED METALLIC (0650)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-0665

COVER BELT RH - YARDMAN GREEN (0665)

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-0716

COVER BELT RH - CUB YELLOW-99 (0716)

$63.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-4008

COVER BELT RH - WINE RED (4008)

$73.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-05281-4028

COVER BELT RH - SEARS YELLOW (4028)

$78.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 631-04070A

Chute Assembly, Side Discharge
(Superseded to 631-04070C)

$116.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 731-04651

Mulch Plug

$78.99

$

In Stock, Qty 6

0

56

Troy-Bilt 721-04041

Coupler, Hose
(Superseded to 921-04041)

$21.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 737-04003C

Port, Water
(Superseded to 737-04003D)

$21.99

$

In Stock, Qty 20+

0
