14AA80TP711 - Troy-Bilt Big Red Horse Garden Tractor (2007) Drive & Rear Wheels Parts Diagram

Big Red Horse Garden Tractor

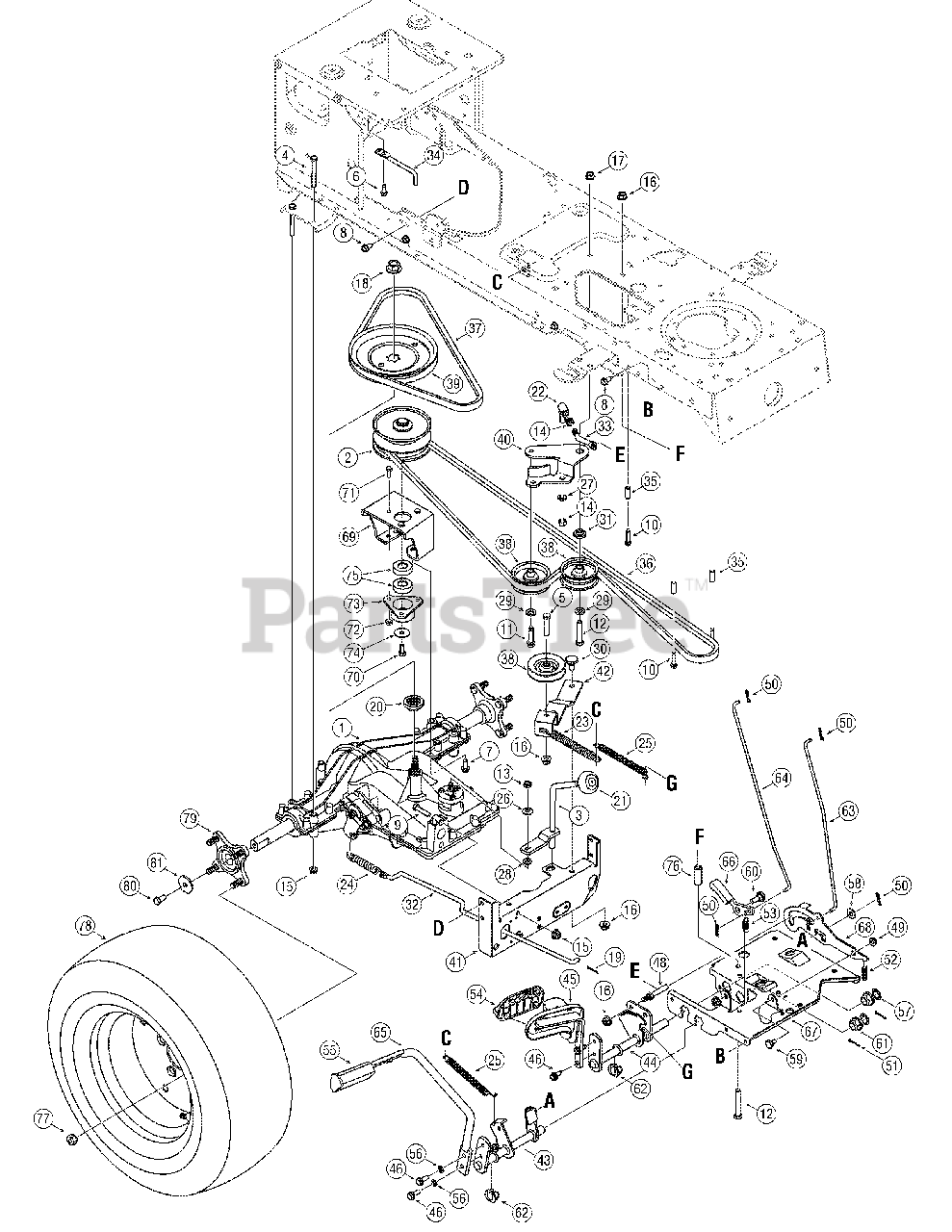

Drive & Rear Wheels Parts Diagram

  • Title

1

Troy-Bilt 618-0376A

Transmission Assembly, 2-Speed
(Superseded to 753-05002)

$2299.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 656-04015

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$96.99

$

In Stock, Qty 20+

0

3

MTD 647-04023A

Rod Assembly, Shift, 2-Speed

$

$

Not available

4

Troy-Bilt 710-0176

Screw, 5/16-18, 2.75, Gr5

$4.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 710-0347

Screw, 3/8-16, 1.75, Gr5

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0650

Screw, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0726

Screw, 5/16-12, 0.750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0805

Screw, 5/16-18, 1.50, Gr5
(Superseded to 710-0805A)

$3.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 710-0809

Screw, 1/4-20, 1.250

$6.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1007

Screw, Sems, 3/8-16, 1.500

$5.99

$

In Stock, Qty 9

0

12

Troy-Bilt 710-3011

Screw, 3/8-16, 2.25, Gr5

$6.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0181

Nut, Jam Lock, 3/6-16

$3.99

$

In Stock, Qty 5

0

14

Troy-Bilt 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0431

Nut, Flange Lock, 3/8-16, GrF,
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0702

Nut, Flange, 7/16-20, Gr2
(Superseded to 912-0702)

$17.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 714-0507

Pin, Cotter, 3/32 x.750

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 718-0771A

Hub, Pulley, 1/2 Spline
(Superseded to 918-0771A)

$26.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 720-04028

Knob, Shift

$10.99

$

In Stock, Qty 11

0

22

Troy-Bilt 723-3018

Ball, Joint
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 732-0478

Extension, Spring 6.12
(Superseded to 932-0478)

$11.99

$

In Stock, Qty 18

0

24

Troy-Bilt 732-0716C

Spring, Extension,.59 OD x 4.00
(Superseded to 732-0716D)

$12.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-0963

Spring, Extension,.50 Dia x 6.37

$8.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0105

Washer, Bell,.375 x.870 x.063

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0169

Washer, Lock, 3/8, Regular Duty

$3.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0642

Washer, Flat,.44x.75x.06, Ht Spcl

$3.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 736-3010

Washer, Flat,.407x.812x.135, Ht

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-0322A

Screw, Shoulder,.625 Dia x.217

$6.49

$

In Stock, Qty 5

0

31

Troy-Bilt 738-0372B

Spacer, Shoulder, 1.00 x.38 x.38

$8.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 747-04136

Brake Rod

$

$

Not available

33

Troy-Bilt 747-1127

Adjustment Rod, Idlr, 3/8

$39.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 747-1185A

Rod, Belt Guard

$

$

Not available

35

Troy-Bilt 750-0566A

Spacer,.260 x.372 x 1.030

$9.49

$

In Stock, Qty 8

0

36

Troy-Bilt 754-0467

Belt, V-Type
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 754-0468

Belt, V-Type
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 756-04224

Pulley, Flat Idler, 2.75

$24.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 756-0665

Pulley, V-Type, 8.50
(Superseded to 956-0665)

$68.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 783-04442

Idler Bracket, Center Double

Variations

Troy-Bilt 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 16

0

Troy-Bilt 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$33.99

$

In Stock, Qty 16

0

41

Troy-Bilt 783-0667B

Torque Bracket, Transmission,

Variations

Troy-Bilt 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 783-0669

Bracket, Idler
(Superseded to 783-0669-0637)

Variations

Troy-Bilt 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$18.99

$

In Stock, only 3 left!

0

$18.99

$

In Stock, only 3 left!

0

43

Troy-Bilt 647-04100

Control Assembly, Brake
(Superseded to 647-04100-0637)

Variations

Troy-Bilt 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

44

Troy-Bilt 647-0032A

Control Assembly, Speed
(Superseded to 647-0032A-0637)

Variations

Troy-Bilt 647-0032A-0637

CONTROL ASM-SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

45

Troy-Bilt 683-0266

Pedal Assembly, Control

$84.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 710-1260A

Screw, 5/16-18, 0.750

$3.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 710-1611B

Screw, 5/16-18, 0.750

$6.49

$

In Stock, only 2 left!

0

48

Troy-Bilt 711-04159B

Pin, 3/8-16 x 2.68

$7.49

$

Usually ships in 3-6 days

0

49

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 714-0104

Pin, Cotter,.072 Dia. x 1.13

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 714-0111

Pin, Cotter, 3/32, 1.0

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 732-0335

Spring, Compression,.405 x 1.17

$4.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 732-0955

Spring, Extension,.50 OD x 1.41

$8.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 735-0662

Pad, Drive Control

$11.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 735-3049A

Pad, Brake

$11.99

$

In Stock, Qty 8

0

56

Troy-Bilt 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 736-0187

Washer, Flat,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 736-0262

Washer, Flat,.385 x.870 x.092

$3.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 738-0155

Shoulder Screw.437 Dia x.162
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

60

Troy-Bilt 738-0380

Screw, Shoulder,.50 x.27, 3/8-16

$7.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 741-3065B

Bearing, Hex Flange,.628 ID, Split

$7.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 747-04093A

Control Rod, Brake Lock

$

$

Not available

64

Troy-Bilt 747-04096

Control Rod, Cruise

$15.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 747-04641

Pedal, Brake
(Superseded to 747-04641A-0637)

Variations

Troy-Bilt 747-04641-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 748-04039C

Latch, Cruise

$

$

Not available

67

Troy-Bilt 783-04612

Bracket, Steering Support
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$83.99

$

In Stock, only 4 left!

0

$83.99

$

In Stock, only 4 left!

0

68

Troy-Bilt 783-0732A

Bracket, Lockout

$31.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 618-04200

Pulley Bracket

$39.99

$

In Stock, only 1 left!

0

70

Troy-Bilt 710-0627

Screw, 5/16-24,.75

$3.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 710-3015

Screw, 1/4-20,.75

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 718-04012

Bearing Cup

$19.99

$

In Stock, Qty 5

0

74

Troy-Bilt 736-0362

Washer, Flat, .330 x 1.25 x .06

$4.49

$

In Stock, Qty 20+

0

75

Troy-Bilt 741-0124

Ball Bearing
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

76

Troy-Bilt 748-0415B

Spacer,.385 x.635 x 1.54

$6.99

$

In Stock, Qty 14

0

77

Troy-Bilt 712-3050

Lug Nut, 7/16-14

$9.49

$

In Stock, Qty 20+

0

78

Troy-Bilt 634-0202A

Wheel Assembly, 23 x 10.5 x 12

Variations

Troy-Bilt 634-0202A-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-4009

WHEEL ASM-COMPLETE - TEE WHITE (4009)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0914

WHEEL ASM-COMPLETE - Cheng Gray (0914)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$344.99

$

Usually ships in 3-6 days

0

$300.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 734-04147

Tire, 23 x 10.5 x 12
(Superseded to 734-04147-0901)

Variations

Troy-Bilt 734-04147-0901

TIRE:23.0 X 10.5 X - Carlisle (0901)

$112.99

$

Usually ships in 3-6 days

0

$112.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 634-3178

Rim Assembly
(Superseded to 634-04238)

Variations

Troy-Bilt 634-3178-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$160.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$184.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$184.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0688

RIM ASM:12.0 X 7.0 - SPRING GREEN (0688)

$184.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 618-04317

Wheel Hub Assembly
(Superseded to 918-04317)

$108.99

$

In Stock, Qty 15

0

80

Troy-Bilt 710-3119

Hex Head Screw, 3/8-16

$6.49

$

In Stock, Qty 14

0

81

Troy-Bilt 736-0227

Washer, Flat, .390 x 1.50 x .134

$5.99

$

In Stock, Qty 20+

0
