14AA815K004 - MTD Gold Garden Tractor (2009) Mowing Deck 54 Inch Parts Diagram

Gold Garden Tractor

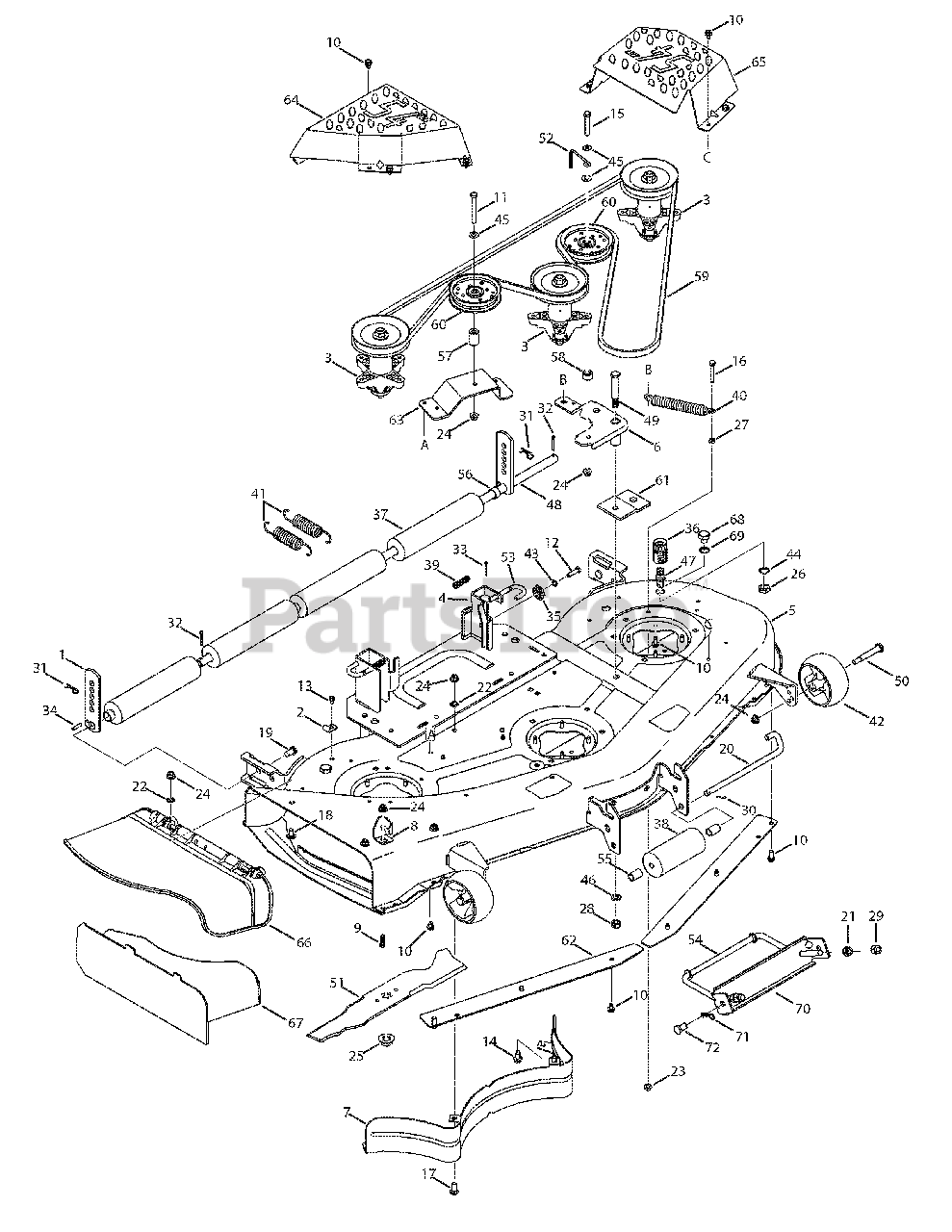

Mowing Deck 54 Inch Parts Diagram

  • Title

1

MTD 12650-0637

Bracket, Adjustment, Height

$40.99

$

In Stock, Qty 6

0

2

MTD 96606

Bracket, Hook, Retainer

$6.99

$

In Stock, Qty 14

0

3

MTD 918-0671B

Spindle Assembly, Pulley
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 20+

0

3

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

3

MTD 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

3

MTD 738-1197

Spindle Shaft:6.95 LG.

Note: Not shown

$41.99

$

In Stock, Qty 20+

0

3

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$20.99

$

In Stock, Qty 20+

0

3

MTD 748-0160A

Spacer:.790 ID x 1.25 OD x .175

Note: Not shown

$6.49

$

In Stock, Qty 9

0

3

MTD 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 19

0

3

MTD 750-1349A

Spacer:.79 x 1.82 x .55

Note: Not shown

$12.99

$

In Stock, Qty 5

0

3

MTD 756-04216

Pulley:V TYP:5.39

Note: Not shown

$30.99

$

In Stock, Qty 14

0

4

MTD 683-0254B-0691

Bracket Asbly, Deck Hanger LH

$46.99

$

Usually ships in 3-6 days

0

5

MTD 983-04483-0637

Deck Asmbly., 54" SD GT

$1098.99

$

Usually ships in 3-6 days

0

6

MTD 683-0459-0637

Idler Assembly, 54" Deck

$69.99

$

In Stock, Qty 13

0

7

MTD 703-2093-0637

RR Inner Baffle
(Superseded to 703-2093C-0637)

$89.99

$

In Stock, Qty 14

0

8

MTD 703-3279-0691

Deflector Chute Stop
(Superseded to 703-3279)

$37.99

$

In Stock, only 3 left!

0

9

MTD 710-04095

Hex Screw 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-04484

Screw, 5/16-18 x 0.750

$3.49

$

In Stock, Qty 20+

0

11

MTD 710-0521

Screw, 3/8-16 x 3.00

$4.99

$

In Stock, Qty 15

0

12

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0599

Screw, 1/4-20 x.500

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0623

Screw, 3/8-16 x.750

$3.99

$

In Stock, Qty 8

0

15

MTD 710-0859

Screw, 3/8-16 x 2.50

$6.49

$

In Stock, Qty 20+

0

16

MTD 710-3103

Hex Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 19

0

17

MTD 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3178

Carriage Bolt 3/8-16 x.75

$3.99

$

In Stock, Qty 20+

0

19

MTD 911-0332

Pin, Clevis,.50 Dia x.78

$14.99

$

In Stock, Qty 20+

0

20

MTD 711-1737

Pin, Roller,.5" Dia x 10.06.

$23.99

$

In Stock, Qty 20+

0

21

MTD 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0229

Push Nut Retainer

$3.49

$

In Stock, Qty 20+

0

23

MTD 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-04065

Nut, Lock, Flange, 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

MTD 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

MTD 912-0641

Hex Nut M16
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

27

MTD 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

29

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

30

MTD 914-0111

Pin, Cotter, 3/32 x 1.00
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

31

MTD 914-0145

Pin, Click,.092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

32

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

33

MTD 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

34

MTD 715-0108

Pin, Spring 1/4 Dia x 1.00

$4.99

$

In Stock, Qty 20+

0

35

MTD 917-04074

Adjustment, Deck, Gear

$12.99

$

In Stock, Qty 20+

0

36

MTD 921-04041

Water Nozzle Adaptor

$21.99

$

In Stock, Qty 20+

0

37

MTD 731-0335

Roller, Deck

$67.99

$

In Stock, Qty 11

0

38

MTD 731-05679

Front Roller
(Superseded to 731-05679B)

$16.99

$

In Stock, Qty 20+

0

39

MTD 932-0306A

Spring, Compression

$7.99

$

In Stock, Qty 20+

0

40

MTD 732-0459C

Spring, Ext., .94 Dia. x 6.74

$17.99

$

In Stock, Qty 20+

0

41

MTD 732-0934

Spring, Ext., 1.15 Dia. X 5.99

$10.99

$

In Stock, only 2 left!

0

42

MTD 734-04155

Deck Wheel, 5" Dia.

$19.99

$

In Stock, Qty 20+

0

43

MTD 936-0119

Lock Washer

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0225

Lock Washer, 5/8"

$3.99

$

In Stock, Qty 11

0

45

MTD 936-0300

Washer, Flat.406 x.875 x.059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

46

MTD 936-0921

Lock Washer
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

47

MTD 737-04003D

Deck Wash Water Nozzle

$21.99

$

In Stock, Qty 19

0

48

MTD 738-0295

Shaft,.750 x.47.12

$115.99

$

In Stock, only 2 left!

0

49

MTD 738-1229A

Shoulder Screw

$11.99

$

In Stock, Qty 20+

0

50

MTD 938-3056

Shoulder Screw

$8.99

$

In Stock, Qty 20+

0

51

MTD 942-0677B

Blade, 18.50"

$30.99

$

In Stock, Qty 20+

0

52

MTD 747-04938

Idler Belt Keeper Rod

$7.49

$

In Stock, Qty 17

0

53

MTD 747-1116

Deck Rels. Hndl. Rod,.375 Dia

$11.99

$

In Stock, Qty 20+

0

54

MTD 747-1324

Rod, Deck Adjust

$53.99

$

In Stock, only 1 left!

0

55

MTD 950-0151

Spacer.550 ID x.755 OD x 1.1

$9.99

$

In Stock, Qty 20+

0

56

MTD 950-0212

Spacer,.82 ID x 1.00 OD x.53
(Superseded to 750-0212)

$

$

Not available

57

MTD 750-04597

Spacer,.380 x.900 x 1.313

$

$

Not available

58

MTD 750-0933

Spacer,.385 ID x.88 x.64

$3.99

$

In Stock, Qty 10

0

59

MTD 954-0642

Belt, V-Type, B Section

$75.99

$

In Stock, Qty 20+

0

60

MTD 756-04129B

Pulley, Idler, 4.25 Dia.
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

61

MTD 783-04013A-0637

Bracket, Stabilizing

$20.99

$

In Stock, Qty 9

0

62

MTD 783-04690B-0637

Deck Skirt

$39.99

$

In Stock, Qty 12

0

63

MTD 783-04726-0637

Bracket, Idler

$34.99

$

In Stock, only 3 left!

0

64

MTD 783-1470A-0637

Cover, Spindle RH

$99.99

$

Usually ships in 3-6 days

0

65

MTD 783-1471-0637

Cover, Spindle LH
(Superseded to 783-1471A-0637)

$74.99

$

Usually ships in 3-6 days

0

66

MTD 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$116.99

$

In Stock, Qty 20+

0

67

MTD 731-04651

Mulch Plug

$78.99

$

In Stock, Qty 6

0

68

MTD 738-04146

Plug, Bolt, M16 x 1.5

$8.99

$

Usually ships in 3-6 days

0

69

MTD 736-0187

Washer, Flat, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

70

MTD 783-0720C-0637

Front Deck Rod Adjustment Bracket

$42.99

$

In Stock, Qty 5

0

71

MTD 914-04023

Hairpin Clip
(Superseded to 714-04023)

$3.99

$

In Stock, Qty 20+

0

72

MTD 911-0332

Clevis Pin, .50 x .78

$14.99

$

In Stock, Qty 20+

0
