14AA945K004 - MTD Gold Garden Tractor (2010) Hood & Dash Parts Diagram

Gold Garden Tractor

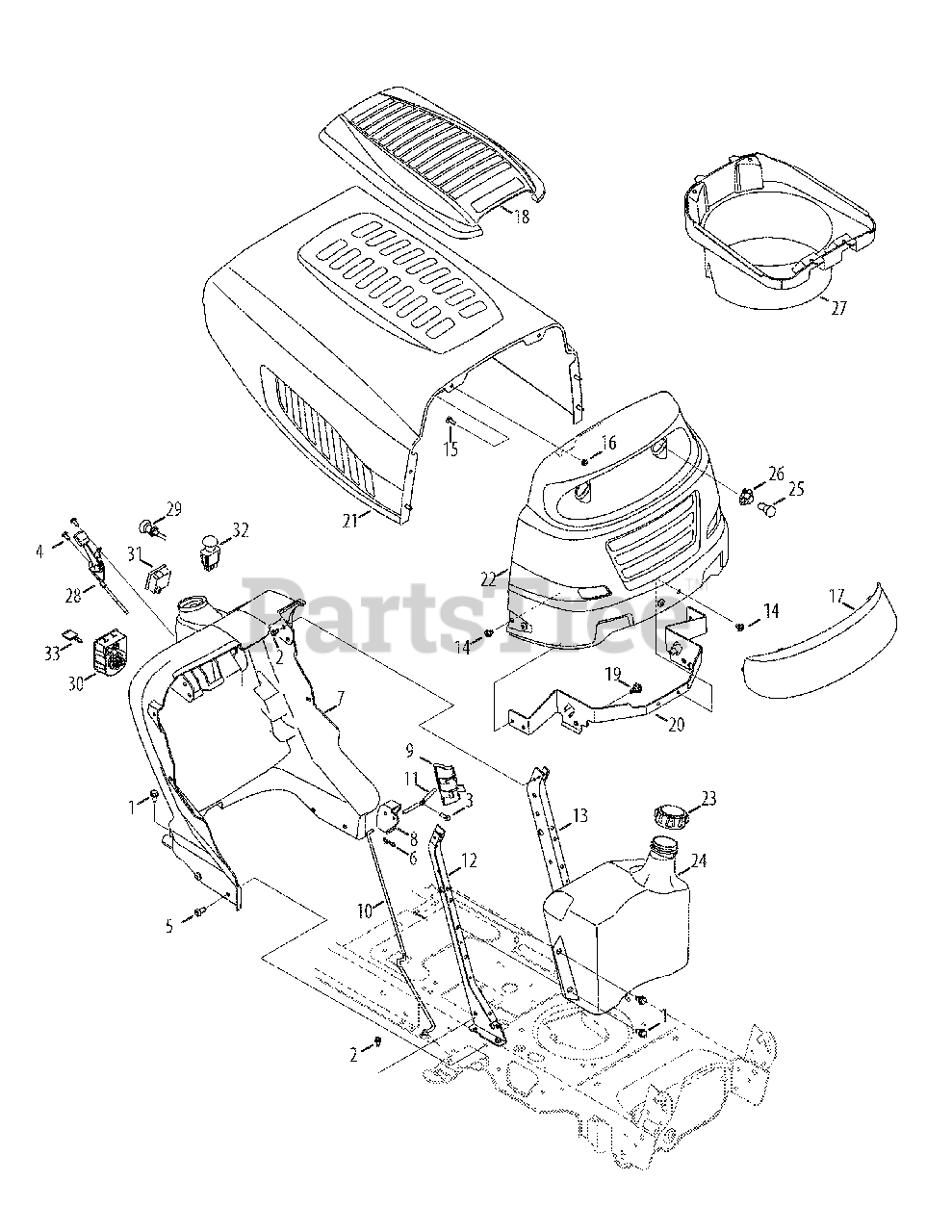

Hood & Dash Parts Diagram

  • Title
1

MTD Part# 710-04484

Taptite Screw ,5/16-18:.750
Usually ships in 1 day

$

$2.55

0

2

MTD Part# 710-0599

Taptite Screw ,1/4-20:0.500
Usually ships in 1 day

$

$3.06

0

3

MTD Part# 710-0895

Hi-Lo Screw, 1/4-15:0.750
Usually ships in 1 day

$

$4.63

0

4

MTD Part# 710-1017

Screw, 1/4-14:0.625
Usually ships in 1 day

$

$5.82

0

5

MTD Part# 710-1611B

Taptite Screw ,5/16-18:0.750
Usually ships in 1 day

$

$4.76

0

6

MTD Part# 714-04040

Bow Tie Cotter Pin
Usually ships in 1 day

$

$1.02

0

7

MTD Part# 731-06169

Dash Panel
Usually ships in 5 to 10 days

$

$76.27

0

8

MTD Part# 731-06639

Dash Lever
Usually ships in 5 to 10 days

$

$8.65

0

9

MTD Part# 731-06642

Cruise Cover
Usually ships in 5 to 10 days

$

$4.53

0

10

MTD Part# 747-05008

Control Rod
Usually ships in 5 to 10 days

$

$13.27

0

Usually ships in 1 day

$

$10.73

0

12

MTD Part# 783-04285F-0637

RH Support Plate
Usually ships same day

Not available

$

$

13

MTD Part# 783-04323F-0637

LH Support Plate
Usually ships in 5 to 10 days

$

$27.90

0

14

MTD Part# 710-04593

Taptite Screw ,5/16-18:0.375
Usually ships in 1 day

$

$3.07

0

15

MTD Part# 710-0751

Hex Screw, 1/4-20:.620
Usually ships in 1 day

$

$2.87

0

16

MTD Part# 712-04064

Flangelock Nut, 1/4-20
Usually ships in 1 day

$

$2.88

0

17
Usually ships in 1 day

$

$19.02

0

18
Usually ships in 5 to 10 days

$

$34.95

0

19

MTD Part# 738-04091A

Shoulder Screw, .43X.29:5/16-18
Usually ships in 1 day

$

$2.81

0

20

MTD Part# 783-05454-0637

Hood Pivot Bracket
Usually ships in 5 to 10 days

$

$22.42

0

Usually ships in 5 to 10 days

$

$120.42

0

22

MTD Part# 783-05685-0662

Grill
(Superseded to 783-05685A-0662)
Usually ships in 5 to 10 days

$

$99.08

0

23

MTD Part# 751-0603A

Fuel Cap
(Superseded to 751-0603B)
Usually ships in 1 day

$

$16.37

0

24
Usually ships in 1 day

$

$86.67

0

Usually ships in 1 day

$

$5.34

0

26

MTD Part# 925-1649

Lamp Socket
Usually ships same day

Not available

$

$

Usually ships in 5 to 10 days

$

$33.21

0

28

MTD Part# 946-04541

Throttle Cable
Usually ships in 5 to 10 days

$

$32.52

0

29

MTD Part# 946-04132

Choke Cable
Usually ships in 5 to 10 days

$

$25.58

0

30

MTD Part# 925-04227B

Key Switch Module
(Superseded to 925-06119B)
Usually ships same day

Not available

$

$

31

MTD Part# 925-04036C

Hour Meter
(Superseded to 925-06170A)
Usually ships same day

Not available

$

$

32

MTD Part# 925-04174

Electric PTO Switch
(Superseded to 925-04174A)
Usually ships in 1 day

$

$49.71

0

Usually ships in 1 day

$

$5.58

0
