14AA945K004 - MTD Gold Garden Tractor (2010) Mower Deck Parts Diagram

Gold Garden Tractor

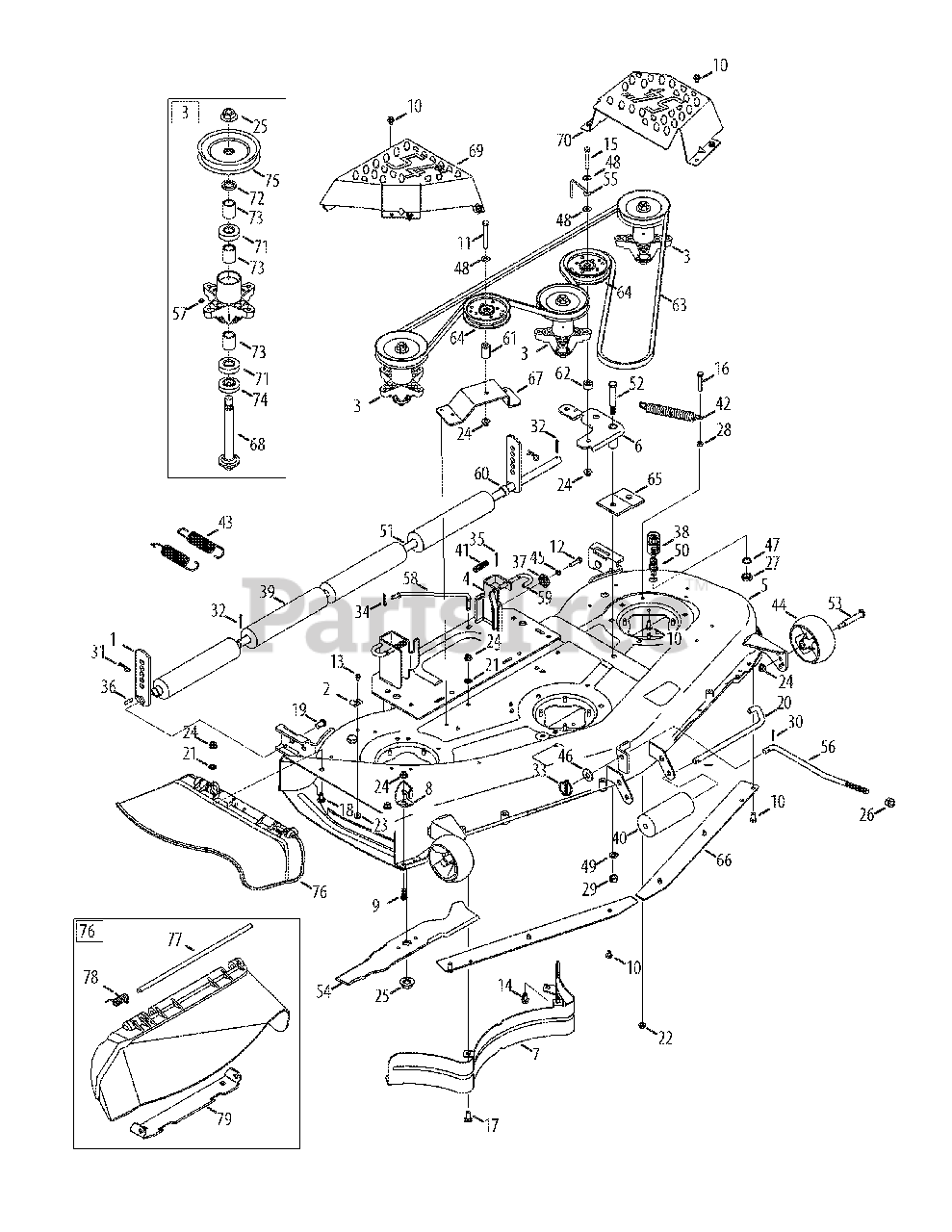

Mower Deck Parts Diagram

  • Title
1

MTD Part# 12650-0637

Height Adjust Bracket
Usually ships in 1 day

$

$30.86

0

2

MTD Part# 96606

Retainer Hook Bracket
Usually ships in 1 day

$

$5.32

0

3

MTD Part# 918-0671D

Spindle Assembly
(Superseded to 918-04608A)
Usually ships in 1 day

$

$122.01

0

4

MTD Part# 683-0254B-0691

Deck Hanger Bracket Assembly
Usually ships in 5 to 10 days

$

$35.13

0

5

MTD Part# 983-04585-0691

Deck Assembly
Usually ships same day

Not available

$

$

6

MTD Part# 683-0459-0637

Idler Assembly
Usually ships in 1 day

$

$52.57

0

7

MTD Part# 703-2093-0637

Inner Baffle
(Superseded to 703-2093C-0637)
Usually ships in 1 day

$

$67.97

0

8

MTD Part# 703-3279-0691

Deflector Chute Stop
(Superseded to 703-3279)
Usually ships same day

Not available

$

$

9

MTD Part# 710-04095

Hex Screw, 3/8-16:1.00
Usually ships in 1 day

$

$3.52

0

10

MTD Part# 710-04484

Taptite Screw, 5/16-18:.750
Usually ships in 1 day

$

$2.55

0

11

MTD Part# 710-0521

Hex Screw, 3/8-16:3.00
Usually ships in 1 day

$

$3.63

0

12

MTD Part# 710-0528

Hex Screw, 5/16-18:1.25
Usually ships in 1 day

$

$3.11

0

13

MTD Part# 710-0597

Hex Screw, 1/4-20:1.00
Usually ships in 1 day

$

$2.91

0

14

MTD Part# 710-0623

Taptite Screw, 3/8-16:0.750
Usually ships in 1 day

$

$3.12

0

15

MTD Part# 710-0859

Hex Screw, 3/8-16:2.50
Usually ships in 1 day

$

$4.81

0

16

MTD Part# 710-3103

Hex Screw, 5/16-18:2.00
Usually ships in 1 day

$

$3.19

0

17

MTD Part# 710-3168

Carriage Bolt, 3/8-16:1.00
Usually ships in 1 day

$

$2.86

0

18

MTD Part# 710-3178

Carriage Bolt, 3/8-16:0.75
Usually ships in 1 day

$

$3.12

0

19

MTD Part# 911-0332

Clevis Pin, .50 DIA x .78 LG
Usually ships in 1 day

$

$11.88

0

20

MTD Part# 911-3314

Roller Pin, 1/2 DIA x 7.31 LG
(Superseded to 711-3314A)
Usually ships in 1 day

$

$18.08

0

21

MTD Part# 712-0229

Push Nut, 3/8
Usually ships in 1 day

$

$2.52

0

22

MTD Part# 712-04063

Flangelock Nut, 5/16-18
Usually ships in 1 day

$

$2.83

0

23

MTD Part# 712-04064

Flangelock Nut, 1/4-20
Usually ships in 1 day

$

$2.88

0

24

MTD Part# 712-04065

Flangelock Nut, 3/8-16
Usually ships in 1 day

$

$2.92

0

25

MTD Part# 712-0417A

Flange Nut, 5/8-18
Usually ships in 1 day

$

$5.15

0

26

MTD Part# 712-04243

Flexlock Nut, 1/2-13
Usually ships in 1 day

$

$2.82

0

27

MTD Part# 912-0641

Hex Nut, M16-1.5 DIN 936
Usually ships same day

Not available

$

$

28

MTD Part# 912-3010

Hex Nut, 5/16-18
Usually ships in 1 day

$

$3.11

0

29

MTD Part# 712-3022

Hexlock Nut, Counterlock, 1/2-13
Usually ships in 1 day

$

$2.86

0

30

MTD Part# 914-0111

Cotter Pin, 3/32:1.0
Usually ships in 1 day

$

$3.36

0

31

MTD Part# 914-0145

Click Pin, .092 x 1.64 LG
Usually ships same day

Not available

$

$

32

MTD Part# 714-0162

Cotter Pin, 5/32:1.25
Usually ships in 1 day

$

$3.45

0

33

MTD Part# 714-0220A

Lynch Pin, .1875
(Superseded to 753-04070)
Usually ships in 1 day

$

$6.94

0

34

MTD Part# 714-04040

Bow Tie Cotter Pin
Usually ships in 1 day

$

$1.02

0

35

MTD Part# 914-0470

Cotter Pin, 1/8 x 1.25
Usually ships in 1 day

$

$3.09

0

36

MTD Part# 715-0108

Spring Pin, 1/4 DIA x 1.00 LG
Usually ships in 1 day

$

$3.52

0

37
Usually ships in 1 day

$

$9.19

0

38

MTD Part# 921-04041

Water Nozzle Adaptor
Usually ships in 1 day

$

$16.19

0

39

MTD Part# 731-0335

Deck Roller
Usually ships in 1 day

$

$50.90

0

40

MTD Part# 731-05679

Front Roller
(Superseded to 731-05679B)
Usually ships in 1 day

$

$12.73

0

41

MTD Part# 732-04652

Compression Spring, .535 OD x 1.751 LG
Usually ships in 1 day

$

$4.71

0

42

MTD Part# 732-04692

Extension Spring, .85 OD x 5.915 LG
Usually ships in 1 day

$

$6.68

0

43

MTD Part# 732-0934

Extension Spring, 1.15 OD x 5.99 LG
Usually ships in 5 to 10 days

$

$8.27

0

44

MTD Part# 734-04155

Deck Wheel
Usually ships in 1 day

$

$15.17

0

45

MTD Part# 936-0119

Lock Washer, 5/16
Usually ships in 1 day

$

$3.41

0

46

MTD Part# 936-0179

Flat Washer, .531 x 1.25 x .100
Usually ships in 5 to 10 days

$

$3.23

0

47

MTD Part# 736-0225

Lock Washer, 5/8
Usually ships in 1 day

$

$3.09

0

48

MTD Part# 936-0300

Flat Washer, .406 x .875 x .059
Usually ships in 1 day

$

$3.15

0

49

MTD Part# 936-0921

Lock Washer, 1/2
Usually ships in 5 to 10 days

$

$3.11

0

50

MTD Part# 737-04003D

Deck Water Nozzle
Usually ships in 1 day

$

$16.58

0

51

MTD Part# 738-0295

Shaft, .750 x .47.12
Usually ships in 1 day

$

$87.71

0

52

MTD Part# 738-1229A

Shield Screw, .625 x 2.50:1/2-13
Usually ships in 1 day

$

$9.25

0

53

MTD Part# 938-3056

Shoulder Bolt, .496 x 2.50:3/8-16
Usually ships in 1 day

$

$6.78

0

Usually ships in 1 day

$

$28.69

0

55

MTD Part# 747-04938

Belt Keeper Rod
Usually ships in 1 day

$

$5.60

0

56

MTD Part# 747-05141A

Deck Lift Rod
(Superseded to 747-05141B)
Usually ships in 1 day

$

$15.60

0

57

MTD Part# 937-3000

Lube Fitting
Usually ships in 1 day

$

$3.23

0

58

MTD Part# 747-05284

Deck Sway Rod
Usually ships in 1 day

$

$13.92

0

59

MTD Part# 747-1116

Deck Release Handle Rod
Usually ships in 1 day

$

$8.88

0

60

MTD Part# 950-0212

Spacer, .82 ID x 1.00 OD x .53
Usually ships same day

Not available

$

$

61

MTD Part# 750-04597

Spacer, .380 x .900 x 1.313
Usually ships in 1 day

$

$4.81

0

62

MTD Part# 750-0933

Spacer, .385 ID x .88 x .64
Usually ships in 1 day

$

$2.89

0

Usually ships in 1 day

$

$76.00

0

64

MTD Part# 756-04129B

Idler Pulley, 4.25"DIA
(Superseded to 753-08171)
Usually ships in 1 day

$

$30.50

0

65

MTD Part# 783-04013A-0637

Pulley Stabilizer Bracket
Usually ships in 1 day

$

$16.28

0

Usually ships in 1 day

$

$29.79

0

67

MTD Part# 783-04726-0637

Stationary Idler Bracket
Usually ships in 1 day

$

$25.92

0

68

MTD Part# 738-1197

Spindle Shaft, 6.95 LG
Usually ships in 1 day

$

$31.60

0

69

MTD Part# 783-1470A-0637

RH Spindle Cover
Usually ships in 5 to 10 days

$

$75.65

0

70

MTD Part# 783-1471-0637

LH Spindle Cover
(Superseded to 783-1471A-0637)
Usually ships in 5 to 10 days

$

$56.63

0

71

MTD Part# 941-0919

Ball Bearing, .787 ID x 1.85 OD x .551
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

72

MTD Part# 748-0160A

Spacer, .790 ID x 1.25 OD x .175
Usually ships in 1 day

$

$4.69

0

73

MTD Part# 750-1000

Spacer, .80 x 1.10 x 1.322 LG
Usually ships in 1 day

$

$3.11

0

74

MTD Part# 750-1349A

Spacer, .79 x 1.82 x .55 LG
Usually ships in 1 day

$

$9.81

0

75

MTD Part# 756-04216

Deck Pulley
Usually ships in 1 day

$

$23.36

0

76

MTD Part# 631-04070A

Chute Assembly
(Superseded to 631-04070C)
Usually ships in 1 day

$

$90.31

0

77
Usually ships in 1 day

$

$10.90

0

78

MTD Part# 732-04372

Torsion Spring, .44 ID x 2.0
Usually ships in 1 day

$

$7.16

0

79

MTD Part# 783-05030

Chute Bracket
Usually ships in 1 day

$

$20.50

0
