14AK945K004 - MTD Gold Garden Tractor (2013) Drive & Rear Wheels Parts Diagram

Gold Garden Tractor

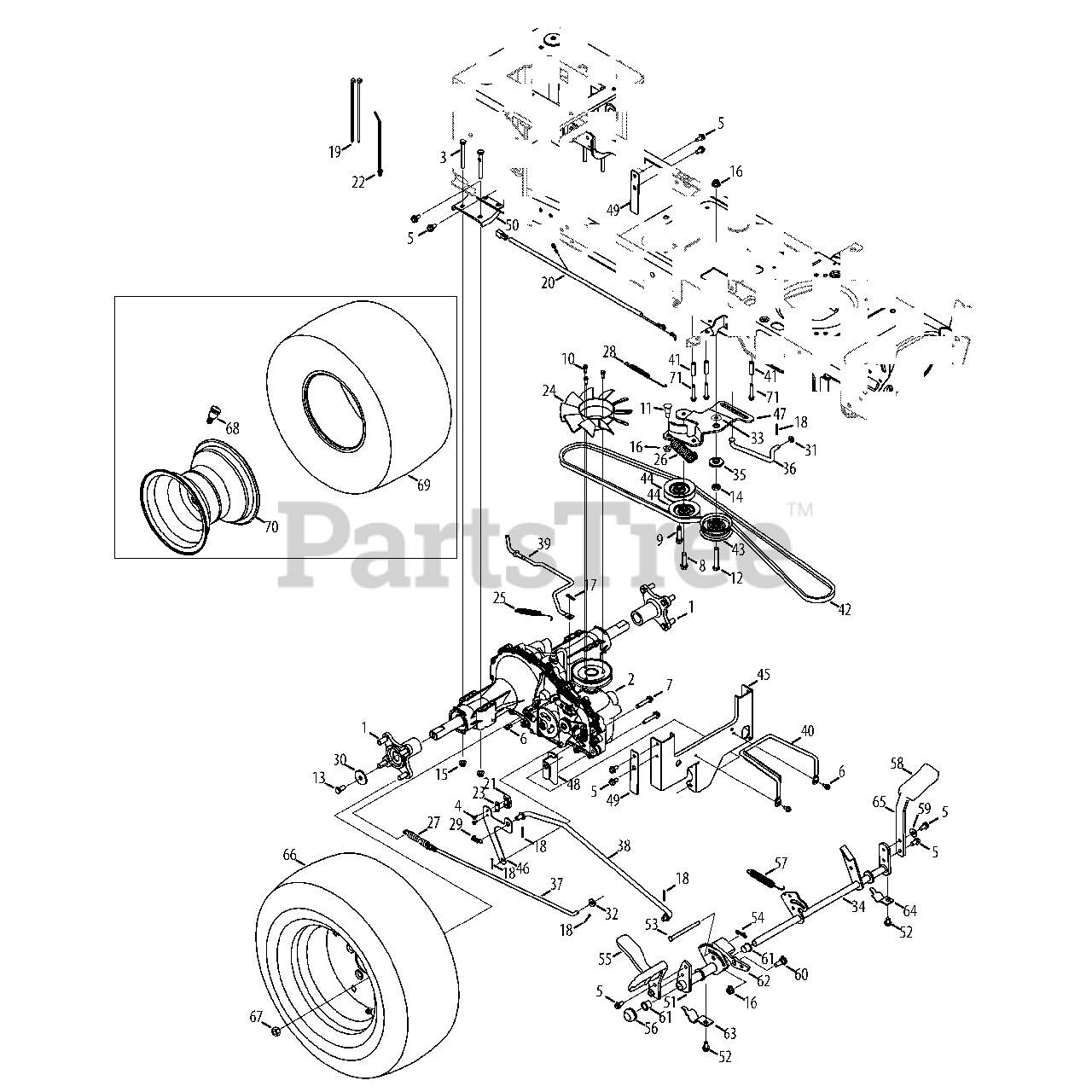

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-04317

Wheel Assembly Hub

$108.99

$

In Stock, Qty 14

0

2

MTD 918-04917

Transmission

$1849.99

$

Usually ships in 3-6 days

0

3

MTD 710-0189

Hex Screw, 5/16-18:3.00

$5.99

$

In Stock, Qty 5

0

4

MTD 710-0227

Screw, #8-18:0.500

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-04484

Taptite Screw, 5/16-18:.750

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-0599

Taptite Screw, 1/4-20:0.500

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0909A

Taptite Screw, 5/16-18:1.750

$9.49

$

In Stock, only 2 left!

0

8

MTD 710-1007

Taptite Sems Screw, 3/8-16:1.500

$5.99

$

In Stock, Qty 9

0

9

MTD 710-1008

Taptite Sems Screw, 3/8-16:1.875

$5.49

$

In Stock, Qty 20+

0

10

MTD 710-1189

Screw, #12-24:0.625

$

$

Not available

11

MTD 738-0430

Scr, Shldr, .50 x .685 3/8-16

$10.99

$

In Stock, Qty 5

0

12

MTD 710-3011

Hex Screw, 3/8-16:2.25

$6.49

$

In Stock, Qty 20+

0

13

MTD 710-3119

Hex Screw, 3/8-16:.750

$6.49

$

In Stock, Qty 13

0

14

MTD 912-0240

Jam Nut, 7/16-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

MTD 914-0104

Cotter Pin, .072 DIA. x 1.13 LG
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

18

MTD 914-0111

Cotter Pin, 3/32:1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

19

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 2 left!

0

20

MTD 725-04791A

Jumper Harness

$14.99

$

Usually ships in 3-6 days

0

21

MTD 725-1644

Short Spring Switch

$8.99

$

In Stock, only 3 left!

0

22

MTD 926-0154

Push Mount Cable Tie 7.5 LG

$5.99

$

Usually ships in 3-6 days

0

23

MTD 926-0320

Insulator Nut Plate

$6.49

$

In Stock, Qty 11

0

24

MTD 931-1449A

Blade Fan

$32.99

$

In Stock, Qty 20+

0

25

MTD 732-04528

Extension Spring, .50 DIA x 5.0 LG

$9.49

$

Usually ships in 3-6 days

0

26

MTD 732-04792

Extension Spring, 1.00 DIA x 4.75

$8.49

$

In Stock, Qty 11

0

27

MTD 732-0716D

Extension Spring, .59 OD x 4.00 LG

$12.99

$

In Stock, Qty 20+

0

28

MTD 732-0932

Extension Spring, .38 DIA x 5.6

$13.99

$

In Stock, Qty 13

0

29

MTD 732-3118

Extension Spring, .375 OD x 1.44 LG

$9.49

$

In Stock, Qty 10

0

30

MTD 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

31

MTD 936-0264

Flat Washer, .330 x .630 x .0635

$6.49

$

In Stock, Qty 11

0

32

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.49

$

In Stock, only 1 left!

0

33

MTD 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.49

$

In Stock, Qty 20+

0

34

MTD 647-04152D

Brake Control Assembly

$

$

Not available

35

MTD 738-04420

Shoulder Spacer, 1.375 x .380 x .183

$6.49

$

In Stock, Qty 11

0

36

MTD 747-04957A

Footpedal Bypass Transmission Rod

$13.99

$

Usually ships in 3-6 days

0

37

MTD 747-05124

Brake Rod

$15.99

$

Usually ships in 3-6 days

0

38

MTD 747-05125A

Control Rod

$

$

Not available

39

MTD 747-05130

Disengage Rod

$

$

Not available

40

MTD 747-05181

Belt Keeper, 5/16

$13.99

$

Usually ships in 3-6 days

0

41

MTD 750-04456

Spacer, 260 x .372 x 1.420 LG

$6.99

$

In Stock, Qty 20+

0

42

MTD 954-04244A

V Belt, 4L x 77.0

$30.99

$

In Stock, Qty 10

0

43

MTD 756-04224

Flat Idler Pulley, 2.75 OD

$24.99

$

In Stock, Qty 20+

0

44

MTD 756-04325

V Idler Pulley, 3.06

$22.99

$

In Stock, Qty 20+

0

45

MTD 783-05443A-0637

Torque Bracket

$29.99

$

Usually ships in 3-6 days

0

46

MTD 783-05841A

Switch Bracket

$10.99

$

Usually ships in 3-6 days

0

47

MTD 783-06027B

Center Idler Bracket

$

$

Not available

48

MTD 783-06501A-0637

Deck Bracket

$23.99

$

Usually ships in 3-6 days

0

49

MTD 783-06503

Plate Bracket

$

$

Not available

50

MTD 783-0693A-0637

Axle Bracket

$22.99

$

Usually ships in 3-6 days

0

51

MTD 683-04621

Hydro Pedal Bracket Assembly

$25.99

$

Usually ships in 3-6 days

0

52

MTD 710-0604A

Taptite Screw, 5/16-18:0.625

$3.99

$

In Stock, Qty 20+

0

53

MTD 711-05068A

Clevis Pin, 5/16 x 3.985

$7.49

$

In Stock, only 1 left!

0

54

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

55

MTD 719-0584B-0637

Control Pedal

$55.99

$

In Stock, only 2 left!

0

56

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

57

MTD 732-04587

Extension Spring, .63 DIA x 4.95 LG

$6.99

$

In Stock, Qty 20+

0

58

MTD 735-04136

Brake Pedal Pad

$14.99

$

Usually ships in 3-6 days

0

59

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

60

MTD 938-0380

Shoulder Bolt, .500 x .270:3/8-16
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 20+

0

61

MTD 741-0495

Flange Bearing, .630 ID x .695 OD x .60

$4.49

$

In Stock, Qty 12

0

62

MTD 748-04203

Cruise Latch

$13.99

$

Usually ships in 3-6 days

0

63

MTD 783-05914

Pedal Support Bracket

$6.99

$

Usually ships in 3-6 days

0

64

MTD 783-05940

Pedal Support Bracket, 5/8

$6.99

$

Usually ships in 3-6 days

0

65

MTD 783-06103A-0637

Brake Pedal Bracket

$16.99

$

Usually ships in 3-6 days

0

66

MTD 634-0202A-0911

Wheel Assembly

$344.99

$

Usually ships in 3-6 days

0

67

MTD 712-3050

Lug Nut, 7/16-14

$9.49

$

In Stock, Qty 20+

0

68

MTD 934-0255

Air Valve

$3.99

$

In Stock, Qty 20+

0

69

MTD 734-04147-0901

Tire

$112.99

$

Usually ships in 3-6 days

0

70

MTD 634-04238-0662

Rim Assembly
(Superseded to 634Z04238-0662)

$184.99

$

Usually ships in 3-6 days

0

71

MTD 710-1026

Taptite Screw, 1/4-20:1.750

$6.49

$

In Stock, Qty 20+

0
