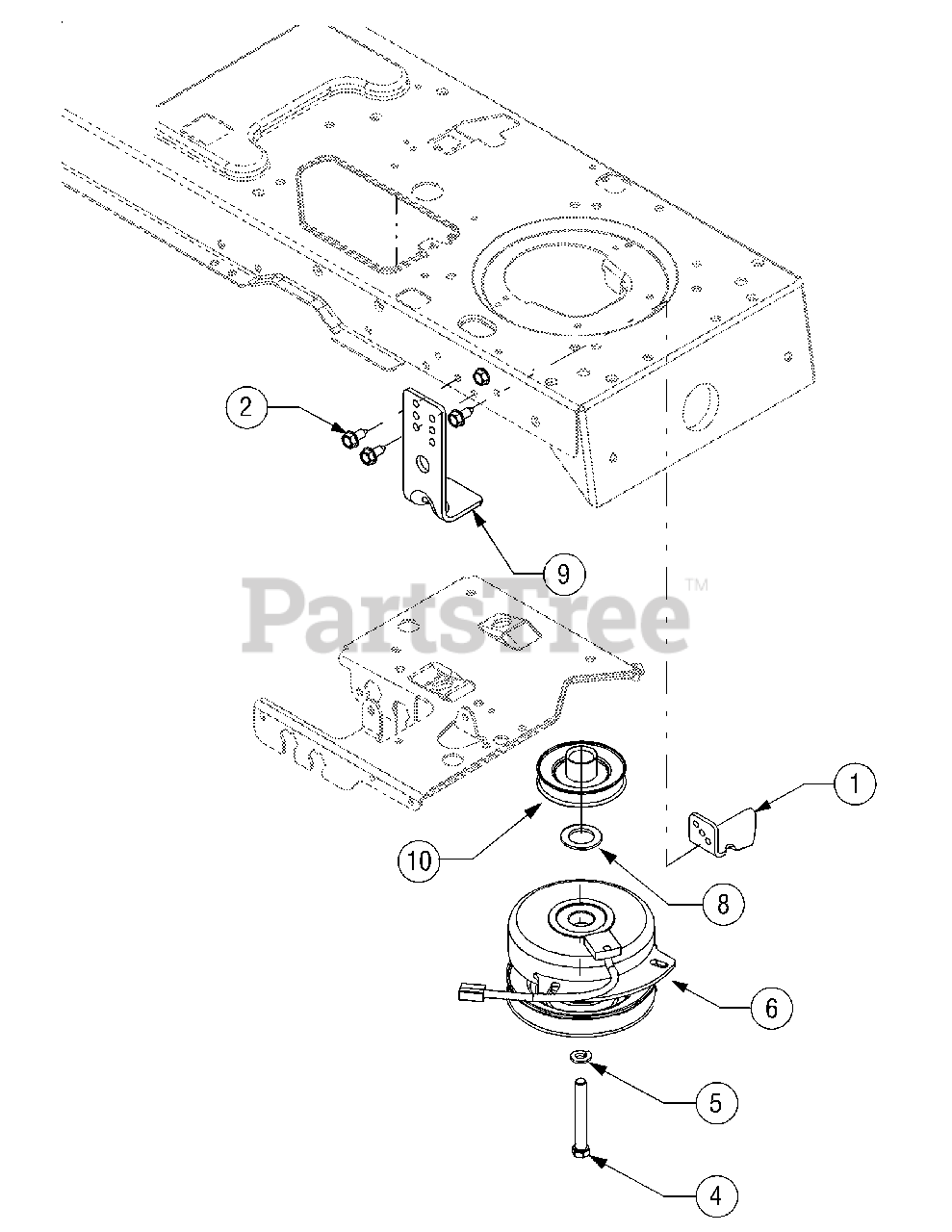

14AP805K730 - Huskee Garden Tractor (2006) (Tractor Supply) PTO Parts Diagram

Garden Tractor

PTO Parts Diagram

  • Title

1

MTD 783-04419B

Bracket, Clutch
(Superseded to 783-04419B-0637)

Variations

783-04419B-0637

MTD 783-04419B-0637

Clutch Bracket - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

783-04419B-4008

MTD 783-04419B-4008

Clutch Bracket - WINE RED (4008)

$15.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 1 left!

0

2

MTD 710-0726

Screw, 5/16-12, .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-04379A

Screw, Hex Cap, 7/16-20 x 3.50 GR5

$6.49

$

In Stock, Qty 20+

0

5

MTD 736-0171

Washer, Lock, 7/16

$4.99

$

In Stock, only 2 left!

0

6

MTD 717-1774B

Clutch, PTO
(Superseded to 917-05001)

$668.99

$

In Stock, only 2 left!

0

8

MTD 736-0277

Washer, Flat, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

9

MTD 783-04467

Deck Stop

Variations

783-04467-0606

MTD 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

783-04467-0637

MTD 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

783-04467-0691

MTD 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

783-04467-0650

MTD 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

783-04467-0665

MTD 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

783-04467-0716

MTD 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

783-04467-4008

MTD 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

10

MTD 756-0639A

Pulley, 3.56"

$81.99

$

In Stock, only 3 left!

0
