14AP80TP766 - Troy-Bilt Big Red 50" Garden Tractor (2006) Axle, Front Wheel and Steering Parts Diagram

Big Red 50" Garden Tractor

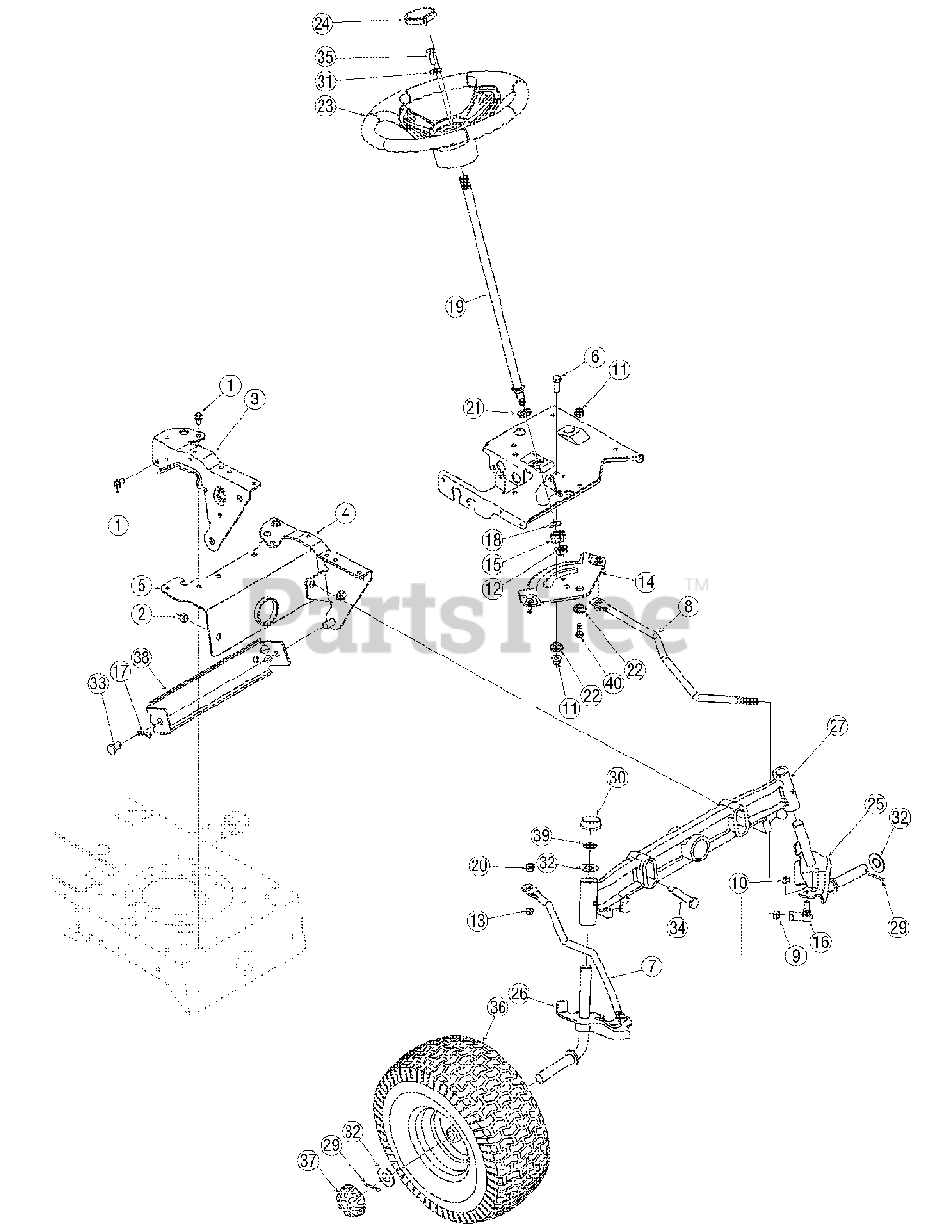

Axle, Front Wheel and Steering Parts Diagram

  • Title

1

Troy-Bilt 710-1260A

Self-tapping Screw, 5/16-18 x.75

$3.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 783-0726E

RH Pivot Support Bracket

Variations

Troy-Bilt 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0726E-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0726E-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0726E-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0726E-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0726E-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

4

Troy-Bilt 783-0727D

LH Pivot Support Bracket

Variations

Troy-Bilt 783-0727D-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0727D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0727D-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0727D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0727D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0727D-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

5

Troy-Bilt 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

Troy-Bilt 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-1408

RH Drag Link

$

$

Not available

8

Troy-Bilt 711-1409A

LH Drag Link

$

$

Not available

9

Troy-Bilt 712-0240

Jam Nut, 7/16-20
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0214

Hex Nut, 3/8-24

$5.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 717-1550E

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$65.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$22.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 714-04023

Cotter Pin, Internal

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-3084

Flat Washer,.51 x 1.12 x.06

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-1001A

Steering Shaft,.625 OD x 24.4

$69.99

$

In Stock, Qty 6

0

20

Troy-Bilt 741-0475

Plastic Bushing,.38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 741-0656A

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-04154

Shoulder Spacer,.38 x 1.00 x.31

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 631-04008

Steering Wheel, Soft Grip, Three Spoke
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

24

Troy-Bilt 731-04681

Steering Wheel Cap

$13.99

$

In Stock, Qty 9

0

25

Troy-Bilt 638-04003A

LH Axle Assembly,.75 Diameter
(Superseded to 638-04003AP)

$76.99

$

In Stock, Qty 10

0

26

Troy-Bilt 638-04004A

RH Axle Assembly,.75 Diameter
(Superseded to 938-04004A)

$66.99

$

In Stock, Qty 10

0

27

Troy-Bilt 719-04177

Cast Iron Pivot Bar
(Superseded to 753-06019)

$234.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 714-04039

Cotter Pin
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 731-04693

Hub Cap

$4.49

$

In Stock, Qty 17

0

31

Troy-Bilt 736-3004

Flat Washer,.406 x.875 x.105

$4.49

$

In Stock, Qty 19

0

32

Troy-Bilt 736-0316

Flat Washer,.78 x 1.59 x.06

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 711-0332

Pin, Clevis,.50 Dia. x.78 Lg.
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-1011A

Shoulder Screw,.5 x 2.2, 3/8-16

$7.99

$

In Stock, Qty 12

0

35

Troy-Bilt 710-0643

Hex Bolt, 5/16-18 X 1

$6.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 634-04088A

Wheel Assembly Complete, 16 x 7.5 x 8

Variations

Troy-Bilt 634-04088A-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$228.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04088A-0931

WHEEL ASM COMPLETE - Carlisle Beige (0931)

$262.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04088A-0991

WHEEL ASM COMPLETE - Carlisle White (0991)

$

$

Not available

Troy-Bilt 634-04088A-4009

WHEEL ASM COMPLETE - TEE WHITE (4009)

$

$

Not available

Troy-Bilt 634-04088A-0941

WHEEL ASM COMPLETE - Carlisle Yellow (0941)

$

$

Not available

$228.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 634-04082

Rim Only w/ Plastic Bearing
(Superseded to 934-04082)

Variations

Troy-Bilt 634-04082-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$122.99

$

In Stock, Qty 5

0

Troy-Bilt 634-04082-0662

RIM ASM 8 X 5.38 - OYSTER GRAY (0662)

$122.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04082-0674

RIM ASSEMBLY - YARDMAN YELLOW (0674)

$122.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04082-4009

RIM ASM - TEE WHITE (4009)

$122.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04082-4042

RIM ASM 8 X 5.38 - CRAFTSMAN GRAY (4042)

$122.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 734-0255

Air Valve (Not Shown)
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 734-04148

Tire Only, Square Shoulder

Variations

Troy-Bilt 734-04148-0901

Tire, 16.0 X 7.5 - Carlisle (0901)

$65.99

$

In Stock, only 1 left!

0

Troy-Bilt 734-04148-0904

Tire, 16.0 X 7.5 - Cheng (0904)

$65.99

$

In Stock, only 1 left!

0

$136.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 741-0516A

Flange Bearing
(Superseded to 741-0516B)

$5.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 741-0990A

Flange Bearing w/ Grease Fitting
(Superseded to 741-0990B)

$9.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-0720A

Brkt., Adj., Frt.
(Superseded to 783-0720C)

Variations

Troy-Bilt 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$42.99

$

In Stock, Qty 5

0

Troy-Bilt 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 726-04035

Nut, Push, 3/4 Dia.

$6.49

$

In Stock, Qty 14

0

40

Troy-Bilt 710-04095

Hex Bolt 3/8-16 x 1.0 Special

$4.99

$

In Stock, Qty 20+

0
