14AP80TP766 - Troy-Bilt Big Red 50" Garden Tractor (2006) Transmission Assembly Parts Diagram

Big Red 50" Garden Tractor

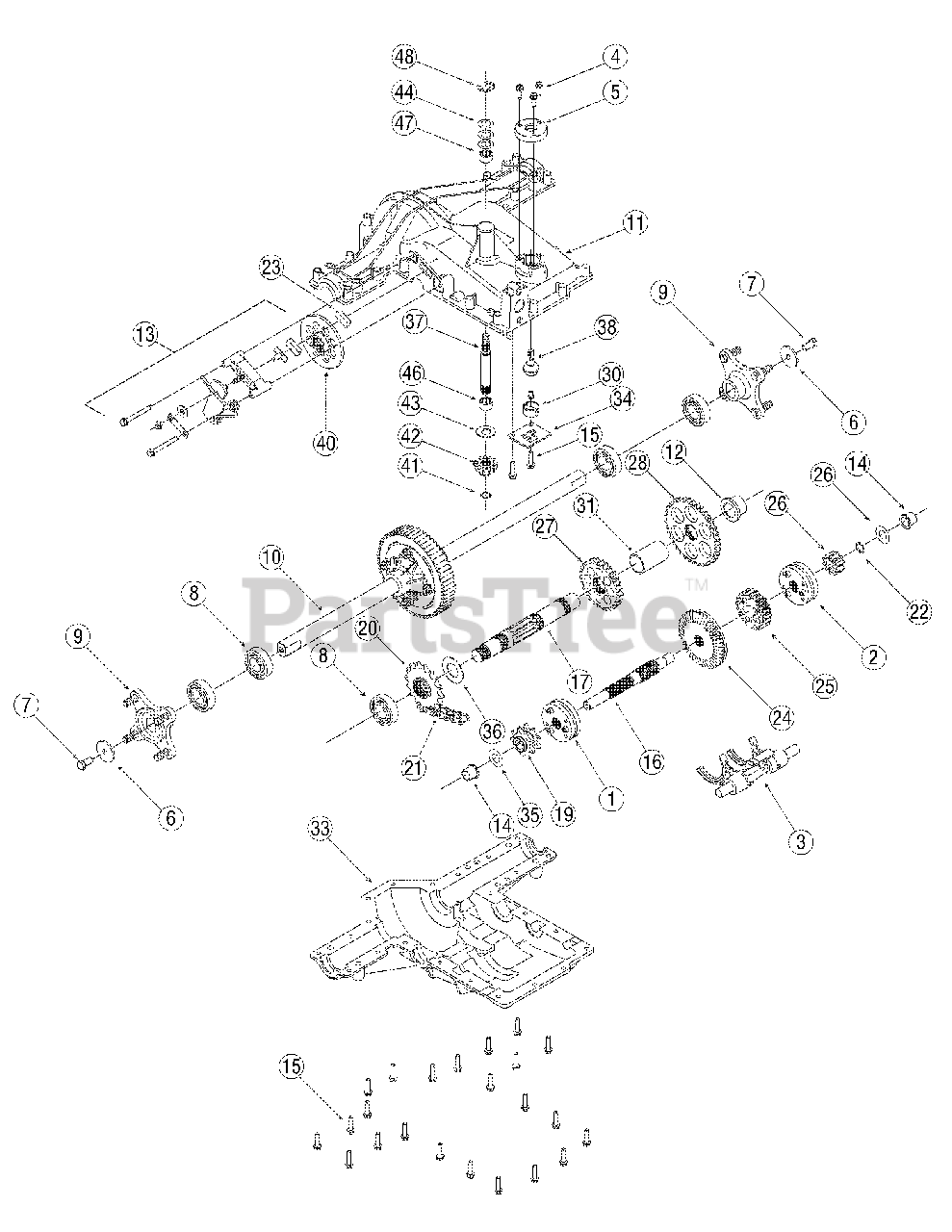

Transmission Assembly Parts Diagram

  • Title

1

Troy-Bilt 618-0225

Reverse Collar Assembly

$

$

Not available

2

Troy-Bilt 618-0226

Hi-Lo Collar Assembly

$116.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-04156

Shift Fork Assembly

$168.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 910-0642

Self-tapping Screw, 1/4-20 x.75
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 718-04053

Shift Cover
(Superseded to 918-04053)

$

$

Not available

6

Troy-Bilt 936-0227

Flat Washer
(Superseded to 736-0227)

$

$

Not available

7

Troy-Bilt 710-3119

Lock bolt 3/8-16 x 0.75

$6.99

$

In Stock, Qty 7

0

8

Troy-Bilt 741-0681

Ball Bearing

$

$

Not available

9

Troy-Bilt 918-04317

Wheel Hub Assembly, DD

$116.99

$

In Stock, Qty 10

0

10

MTD 918-04142

Differential Axle Assembly

$

$

Not available

11

Troy-Bilt 619-04081

Upper Housing
(Superseded to 919-04081)

$

$

Not available

12

Troy-Bilt 941-0476

Flanged Bearing
(Superseded to 741-04488)

$8.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 961-0012

Brake Assembly

$

$

Not available

14

Troy-Bilt 741-04085

Flanged Bearing

$

$

Not available

15

Troy-Bilt 710-0788

Screw 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

16

MTD 711-1051A

Drive Shaft

$

$

Not available

17

Troy-Bilt 711-1216

Output Shaft

$149.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 913-0446

9-tooth Sprocket

$

$

Not available

20

MTD 913-0447

16-tooth Sprocket

$

$

Not available

21

Troy-Bilt 913-0448

22-link Chain,.625

$

$

Not available

22

Troy-Bilt 916-0131

External Snap Ring

$6.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 917-0678

Brake Pad

$6.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 917-1438A

41-tooth Bevel Gear

$

$

Not available

25

Troy-Bilt 917-1439A

20-tooth Spur Gear

$

$

Not available

26

Troy-Bilt 717-1440

10-tooth Spur Gear

$

$

Not available

27

Troy-Bilt 717-04109

27-tooth Spur Gear

$

$

Not available

28

Troy-Bilt 717-04110

37-tooth Spur Gear

$

$

Not available

30

Troy-Bilt 718-0504

Shifter Insert

$4.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 718-0505

Shifter Cover

$21.99

$

Usually ships in 3-6 days

0

33

MTD 719-04083

Lower Housing

$

$

Not available

34

Troy-Bilt 718-0540

Lockout Plate

$

$

Not available

35

Troy-Bilt 936-0337

Flat Washer, 5/8 x 1.0

$4.49

$

In Stock, Qty 15

0

36

Troy-Bilt 736-3046A

Flat Washer, 1.01 x 1.86 x.060

$8.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 711-1235

Input Shaft

$

$

Not available

38

Troy-Bilt 747-1140

Shift Lever

$52.99

$

In Stock, Qty 5

0

40

Troy-Bilt 761-0215

Disc Brake

$19.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 916-0114

Retaining Ring,.56

$6.49

$

In Stock, Qty 11

0

42

Troy-Bilt 717-1463A

13-tooth Bevel Gear

$

$

Not available

43

Troy-Bilt 936-0335

Flat Washer

$6.99

$

In Stock, Qty 8

0

44

Troy-Bilt 936-0336

Flat Washer, 5/8 x 1.0 x.030

Note: as required

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 936-0337

Flat Washer, 5/8 x 1.0 x.040

Note: as required

$4.49

$

In Stock, Qty 15

0

44

Troy-Bilt 936-0349

Flat Washer, 5/8 x 1.0 x.020

Note: as required

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 941-0335

Needle Bearing

$18.99

$

In Stock, Qty 5

0

47

Troy-Bilt 741-0696

Needle Bearing

$28.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 916-0231

E-ring, .75
(Superseded to 716-0231)

$

$

Not available
