14AQ81RP048 (GT 2200) - Toro Garden Tractor (2008) 50 INCH DECK ASSEMBLY Parts Diagram

Garden Tractor

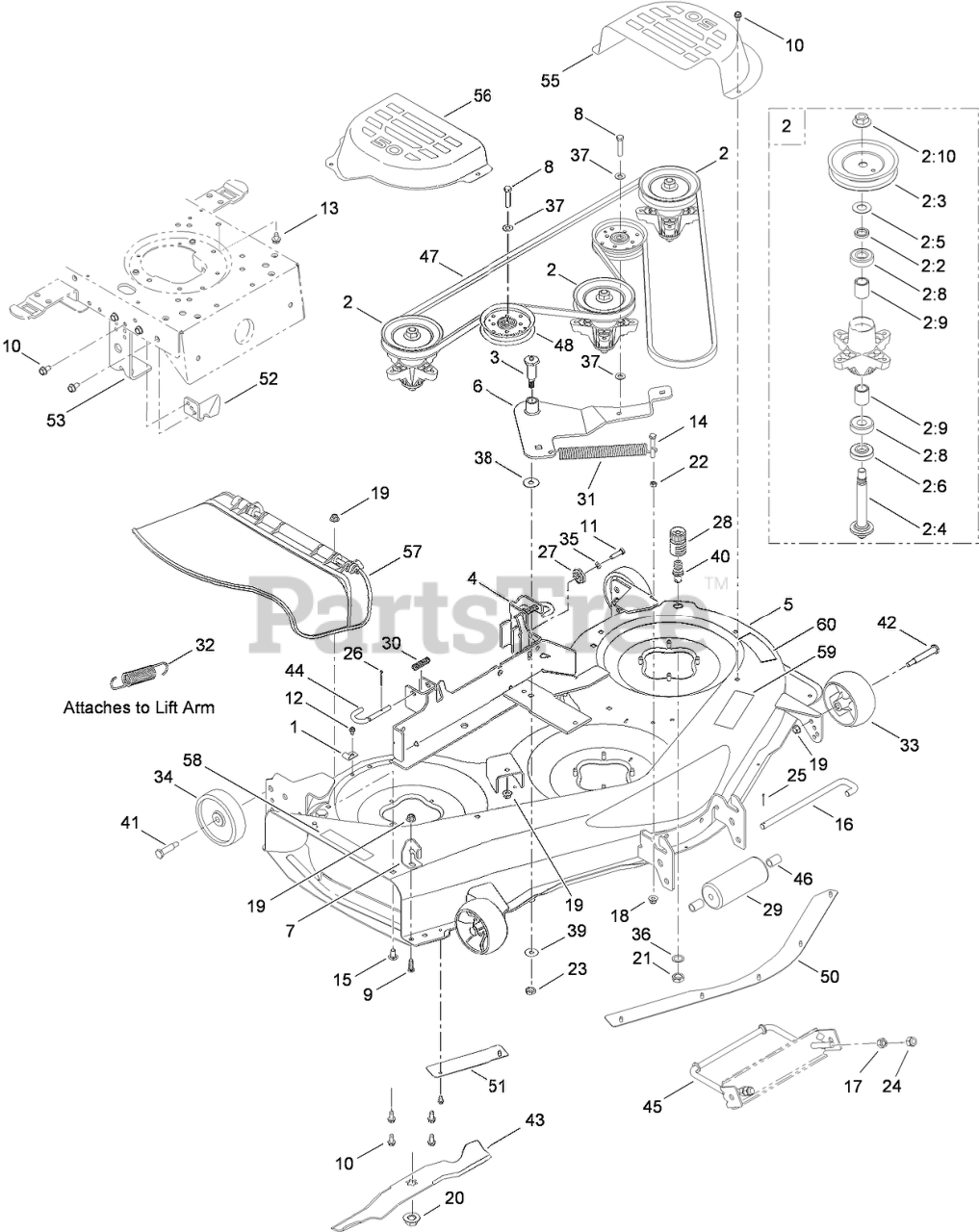

50 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0378

BRACKET-RETAIN, HOOK

$9.49

$

Usually ships in 3-6 days

0

2

Toro 112-6042

SPINDLE ASM
(Superseded to 112-0370)

$153.99

$

In Stock, Qty 6

0

2:2

Toro 112-6038

SPACER

$

$

Not available

2:3

Toro 112-5926

PULLEY

$61.99

$

Usually ships in 3-6 days

0

2:4

Toro 112-0884

SHAFT-SPINDLE, BLADE (STAR)

$52.99

$

In Stock, only 2 left!

0

2:5

Toro 112-0921

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

2:6

Toro 112-0721

SPACER
(Superseded to 119-9110)

$24.99

$

Usually ships in 3-6 days

0

2:8

Toro 112-0377

BEARING-BALL

$26.99

$

In Stock, Qty 9

0

2:9

Toro 112-0389

SPACER

$6.99

$

Usually ships in 3-6 days

0

2:10

Toro 112-0330

NUT-LOCK, FLANGE

$9.99

$

In Stock, Qty 11

0

3

Toro 112-6184

BOLT SHOULDER ASM

$41.99

$

In Stock, Qty 6

0

4

Toro 112-0413

LH HANGER BRACKET ASM

$74.99

$

In Stock, only 3 left!

0

5

Toro 112-0653

50 INCH SIDE DISCHARGE DECK ASM

$

$

Not available

6

Toro 112-0702

IDLER ASM

$

$

Not available

7

Toro 112-0854

STOP-CHUTE

$

$

Not available

8

Toro 112-0513

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

9

Toro 112-0631

SCREW-HH

$6.99

$

In Stock, Qty 7

0

10

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

11

Toro 112-0373

SCREW-HH

$6.99

$

In Stock, Qty 6

0

12

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

13

Toro 112-0676

SCREW-TAP

$

$

Not available

14

Toro 112-0590

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

15

Toro 112-0452

BOLT-CARR

$6.99

$

Usually ships in 3-6 days

0

16

Toro 112-0682

PIN-ROLLER

$32.99

$

Usually ships in 3-6 days

0

17

Toro 112-0458

NUT-HEX

$

$

Not available

18

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 5

0

19

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 19

0

20

Toro 112-0330

NUT-LOCK, FLANGE

$9.99

$

In Stock, Qty 11

0

21

Toro 112-0351

NUT-HEX

$9.99

$

Usually ships in 3-6 days

0

22

Toro 112-0437

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

23

Toro 112-0537

NUT-HEX

$

$

Not available

24

Toro 112-0476

NUT-LOCK, HEX (NYLON)

$6.99

$

In Stock, only 2 left!

0

25

Toro 112-0568

PIN-COTTER

$7.49

$

In Stock, only 2 left!

0

26

Toro 112-0412

PIN-COTTER

$6.99

$

In Stock, only 3 left!

0

27

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$23.99

$

In Stock, only 2 left!

0

28

Toro 112-0916

ADAPTER-NOZZLE, WATER

$42.99

$

Usually ships in 3-6 days

0

29

Toro 112-6185

ROLLER-FRONT

$

$

Not available

30

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, Qty 5

0

31

Toro 112-6043

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

32

Toro 112-0399

SPRING-LIFT, ASSIST

$14.99

$

Usually ships in 3-6 days

0

33

Toro 112-0677

WHEEL-DECK, FRONT

$22.99

$

In Stock, Qty 5

0

34

Toro 112-0479

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

35

Toro 112-0366

WASHER-LOCK

$

$

Not available

36

Toro 112-0643

WASHER-LOCK

$5.49

$

Usually ships in 3-6 days

0

37

Toro 112-0572

WASHER-FLAT

$

$

Not available

38

Toro 112-0564

WASHER-FLAT

$6.49

$

In Stock, Qty 6

0

39

Toro 112-0481

WASHER-BELL

$5.49

$

Usually ships in 3-6 days

0

40

Toro 112-0879

NOZZLE-WATER, DECK

$44.99

$

Usually ships in 3-6 days

0

41

Toro 112-0334

BOLT-SHOULDER

$12.99

$

In Stock, Qty 12

0

42

Toro 112-0325

BOLT-SHOULDER

$17.99

$

Usually ships in 3-6 days

0

43

Toro 112-0316

BLADE-17.90 INCH

$28.99

$

In Stock, Qty 20+

0

44

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$20.99

$

In Stock, Qty 7

0

45

Toro 112-0497

ROD-FRONT, ADJUST

$73.99

$

Usually ships in 3-6 days

0

46

Toro 112-0691

SPACER

$13.99

$

Usually ships in 3-6 days

0

47

Toro 112-6186

BELT-V, SECTION A

$166.99

$

Usually ships in 3-6 days

0

48

Toro 112-0314

PULLEY-IDLER

$51.99

$

In Stock, only 4 left!

0

50

Toro 112-5837

SKIRT-CENTER

$

$

Not available

51

Toro 112-0612

SKIRT-RH

$38.99

$

Usually ships in 3-6 days

0

52

Toro 112-0571

BRACKET-CLUTCH

$

$

Not available

53

Toro 112-0689

BRACKET-DECK, UP STOP

$

$

Not available

55

Toro 112-6041

COVER-BELT, LH

$

$

Not available

56

Toro 112-6040

COVER-BELT, RH

$

$

Not available

57

Toro 112-5846

CHUTE DEFLECTOR ASM

$195.99

$

Usually ships in 3-6 days

0

58

Toro 112-1265

DECAL-DANGER

$

$

Not available

59

Toro 112-1273

DECAL-BELT ROUTING, DECK

$13.99

$

Usually ships in 3-6 days

0

60

Toro 112-1268

DECAL-DANGER, DECK

$

$

Not available
